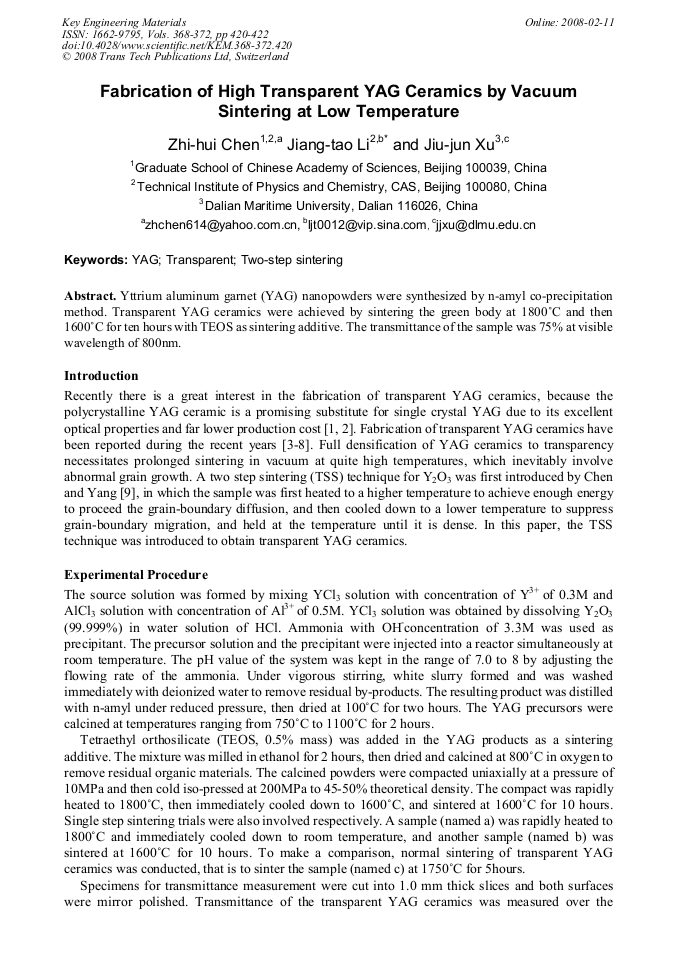

Fabrication of High Transparent YAG Ceramics by Vacuum Sintering at Low Temperature

Abstract:

Article Preview

Yttrium aluminum garnet (YAG) nanopowders were synthesized by n-amyl co-precipitation method. Transparent YAG ceramics were achieved by sintering the green body at 1800°C and then 1600°C for ten hours with TEOS as sintering additive. The transmittance of the sample was 75% at visible wavelength of 800nm.

Info:

Periodical:

Key Engineering Materials (Volumes 368-372)

Edited by:

Wei Pan and Jianghong Gong

Pages:

420-422

Citation:

Z. H. Chen et al., "Fabrication of High Transparent YAG Ceramics by Vacuum Sintering at Low Temperature", Key Engineering Materials, Vols. 368-372, pp. 420-422, 2008

Online since:

February 2008

Export:

Price:

$38.00

[1] A. Ikesue, I. Furusato and K. Kamata: J. Am. Ceram. Soc. Vol. 78 (1995), p.225.

[2] A. Ikesue, T. Kinoshita, K. Kamata, et al.: J. Am. Ceram. Soc. Vol. 78 (1995), p.1033.

[3] Y. Wu, J. Li, F. Qiu, et al.: Ceram. Int. Vol. 32 (2006), p.785.

[4] H. Zhang, H. Han, C. Su, et al.: Mater. Sci. Eng.A. Vol. 445-446 (2007), p.180.

[5] X. Li, Q. Li, J. Wang, et al.: Opt. Mater. Vol. 29 (2007), p.528.

[6] M. Liu, S. Wang and J. Zhang: J. Rare Earth, Vol. 24(2006), p.732.

[7] S. Lee, S. Kochawattana, G.L. Messing, et al.: J. Am. Ceram. Soc. Vol. 89 (2006), p. (1945).

[8] Z.H. Chen, Y. Yang, J.T. Li, et al.: J. Alloys. Compd. Vol. 433 (2007), p.328.

[9] I.W. Chen and X.H. Wang: Nature. Vol. 404.

[9] 2000), p.167. Fig. 5 Transmittance of the samples sintered at a. 1750˚C b. 1800-1600˚C.

Fetching data from Crossref.
This may take some time to load.
