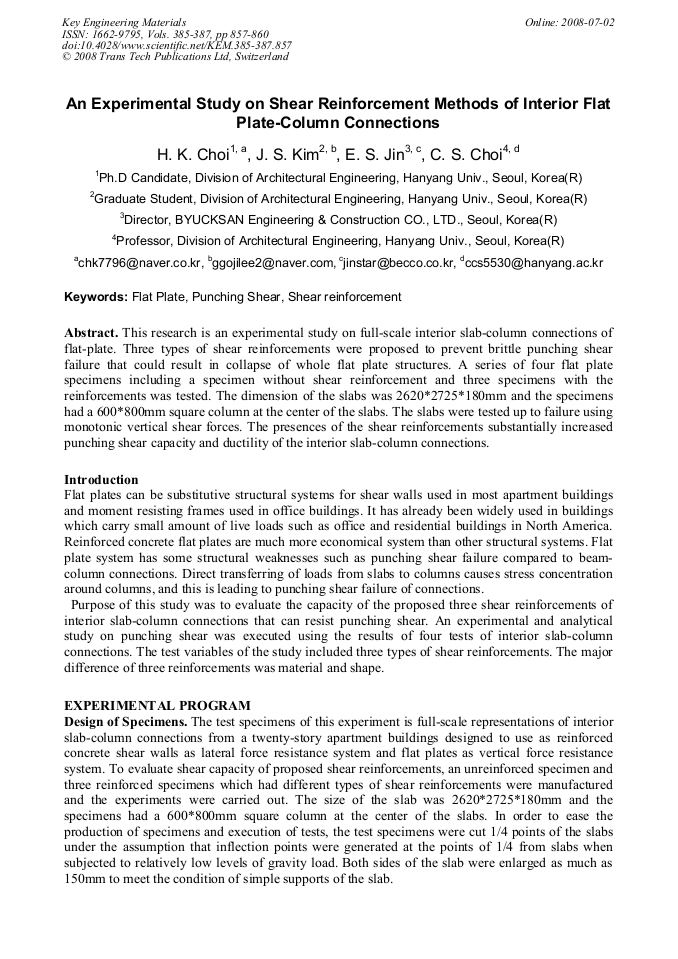

An Experimental Study on Shear Reinforcement Methods of Interior Flat Plate-Column Connections

Abstract:

This research is an experimental study on full-scale interior slab-column connections of flat-plate. Three types of shear reinforcements were proposed to prevent brittle punching shear failure that could result in collapse of whole flat plate structures. A series of four flat plate specimens including a specimen without shear reinforcement and three specimens with the reinforcements was tested. The dimension of the slabs was 2620*2725*180mm and the specimens had a 600*800mm square column at the center of the slabs. The slabs were tested up to failure using monotonic vertical shear forces. The presences of the shear reinforcements substantially increased punching shear capacity and ductility of the interior slab-column connections.

• Periodical: Key Engineering Materials (Volumes 385-387)
• Pages: 857-860
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.385-387.857
• Online since: July 2008
• Authors: Hyun Ki Choi, J.S. Kim, E.S. Jin, Chang Sik Choi
• Keywords: Flat Plate, Punching Shear, Shear Reinforcement

References

[1] Neil Hammill., Amin Ghali, Punching Shear Resistance of Corner Slab-Column Connection., ACI Structure Journal Vol. 91, No. 6 Nov-Dec 1994 pp.697-707.

DOI: 10.14359/1502

[2] Broms C. E., Shear Reinforcement for Deflection Ductility of Flat Plates., ACI Structure Journal, V. 87, No. 6, Nov-Dec 1990 pp.696-705.

DOI: 10.14359/2988

[3] Yamada, T., Nanni., A., And Endo, D., Punching Shear Resistance of Flat Slab : Influence of Reinforcement Typeand ratio., ACI Structure journal, V. 89, No. 4 Sept-Oct 1992 pp.555-563.

[4] Austin, D. Pan and Jack P. Moehle, An experimental study of slab-column connections, ACI 89-S59, 1992. pp.626-638.

[5] Rudiger Beutel and Josef Hegger., The effect of anchorage on the effectiveness of the shear reinforcement in the punching zone, Cement & Concrete Composite 24 (2002) 539-549.

DOI: 10.1016/s0958-9465(01)00070-1

[5] [10] [15] [20] [25] [30] [35] FP-SS/bar FP-CS/bar FP-Wiremesh stiffness [kN/mm] Control Fig. 6 Comparison of Secant Stiffness.
