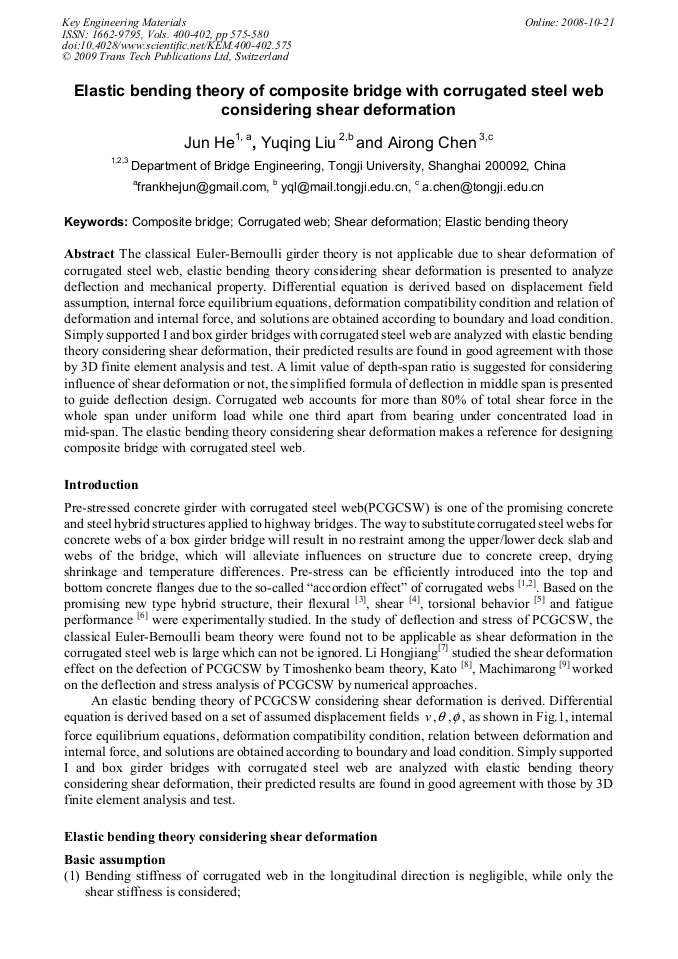

Elastic Bending Theory of Composite Bridge with Corrugated Steel Web Considering Shear Deformation

Abstract:

The classical Euler-Bernoulli girder theory is not applicable due to shear deformation of corrugated steel web, elastic bending theory considering shear deformation is presented to analyze deflection and mechanical property. Differential equation is derived based on displacement field assumption, internal force equilibrium equations, deformation compatibility condition and relation of deformation and internal force, and solutions are obtained according to boundary and load condition. Simply supported I and box girder bridges with corrugated steel web are analyzed with elastic bending theory considering shear deformation, their predicted results are found in good agreement with those by 3D finite element analysis and test. A limit value of depth-span ratio is suggested for considering influence of shear deformation or not, the simplified formula of deflection in middle span is presented to guide deflection design. Corrugated web accounts for more than 80% of total shear force in the whole span under uniform load while one third apart from bearing under concentrated load in mid-span. The elastic bending theory considering shear deformation makes a reference for designing composite bridge with corrugated steel web.

• Periodical: Key Engineering Materials (Volumes 400-402)
• Pages: 575-580
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.400-402.575
• Online since: October 2008
• Authors: Jun He, Yu Qing Liu, Ai Rong Chen
• Keywords: Composite Bridge, Corrugated Web, Elastic Bending Theory, Shear Deformation

References

[1] Yuqing LIU: Steel-concrete hybrid bridge (China Communication Press, Beijing 2005).

[2] HE Jun, CHEN Airong and LIU Yuqing: Analysis on structural system and mechanical behaviour of box girder bridge with corrugated steel web. The 3rd international conference on steel and composite structures(ICSCS07). UK. (2007), pp.489-494.

[3] Elgaaly, M., Seshadri, A. and Hamilton, R. W: Bending strength of steel beams with corrugated webs. J. Struct. Eng., 123(6), (1997), pp.772-782.

DOI: 10.1061/(asce)0733-9445(1997)123:6(772)

[4] Elgaaly. M, Hamilton. R. W and Seshadri. A: Shear strength of beams with corrugated webs. J. Struct. Eng., 122(4), (1996), pp.390-398.

DOI: 10.1061/(asce)0733-9445(1996)122:4(390)

[5] Y. L. Mo, Yu-Lin Fan: Torsional design of hybrid concrete box girders. Journal of Bridge Engineering, (2006), pp.329-339.

DOI: 10.1061/(asce)1084-0702(2006)11:3(329)

[6] Kengo Anamia, Richard Sauseb and Hassan H. Abbasb: Fatigue of web-flange weld of corrugated web girders: 1. Influence of web corrugation geometry and flange geometry. International Journal of Fatigue, Vol. 27, (2005), pp.373-381.

DOI: 10.1016/j.ijfatigue.2004.08.006

[7] LI Hongjiang, YE Jianshu and WAN shui et al: Influence of shear deformation on deflection of box girder with corrugated steel webs. Journal of Traffic and Transportation Engineering, Vol. 2, No. 4, (2002), pp.17-20.

DOI: 10.1061/9780784483053.090

[8] Kato. H, Nishimura. N: Practical analysis of continuous girders and cable stayed bridges with corrugated steel web, J. Struct. Mech. Earthquake Eng. JSCE. No. 731(I-63), (2003), pp.231-245.

DOI: 10.2208/jscej.2003.731_231

[9] Machimdamrong. C, Watanabe. E: An extended elastic shear deformable beam theory and its application to corrugated steel web girder, J. Struct. Eng., JSCE, Vol. 49A, (2003), pp.29-38.

[10] Mizuguchi. K, Ashizuka. K and Yoda. T: Loading Tests of Hondani Bridge- PC Bridge Using Corrugated Steel Webs by Cantilevering Construction Method. Bridge and Foundation Engineering, (1998): 25~34.

[11] Expressway technical centre: Technical report of long-span steel-concrete hybrid bridge with corrugated steel web(2001).
