Cutting Tool Edge Temperature in Finish Hard Turning of Case Hardened Steel

Abstract:

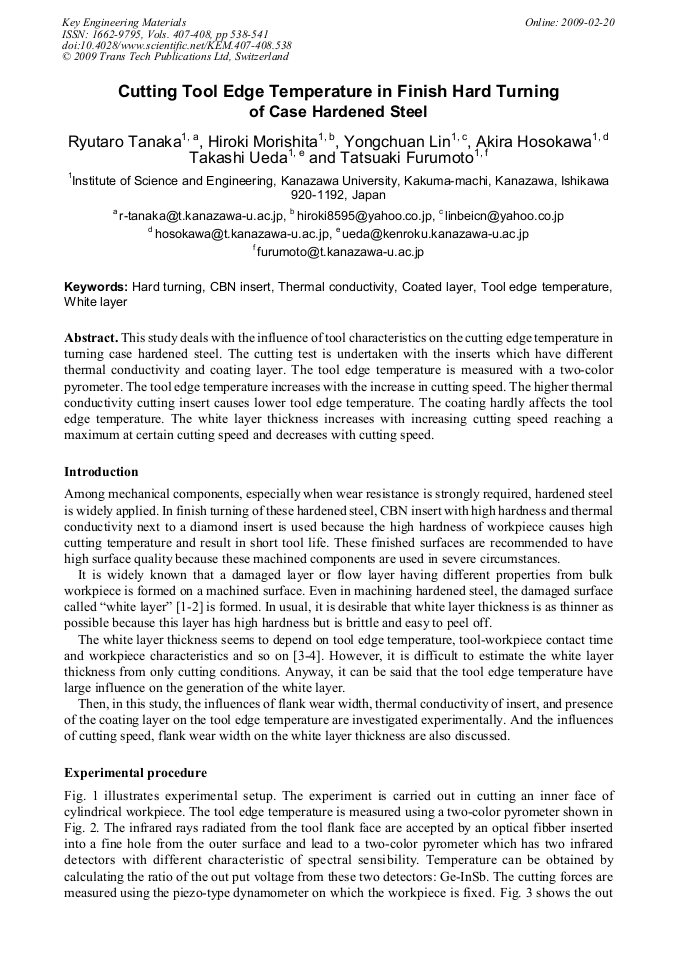

Article Preview

This study deals with the influence of tool characteristics on the cutting edge temperature in turning case hardened steel. The cutting test is undertaken with the inserts which have different thermal conductivity and coating layer. The tool edge temperature is measured with a two-color pyrometer. The tool edge temperature increases with the increase in cutting speed. The higher thermal conductivity cutting insert causes lower tool edge temperature. The coating hardly affects the tool edge temperature. The white layer thickness increases with increasing cutting speed reaching a maximum at certain cutting speed and decreases with cutting speed.

Info:

Periodical:

Key Engineering Materials (Volumes 407-408)

Edited by:

Fan Rui, Qiao Lihong, Chen Huawei, Ochi Akio, Usuki Hiroshi and Sekiya Katsuhiko

Pages:

538-541

Citation:

R. Tanaka et al., "Cutting Tool Edge Temperature in Finish Hard Turning of Case Hardened Steel", Key Engineering Materials, Vols. 407-408, pp. 538-541, 2009

Online since:

February 2009

Export:

Price:

$38.00

[1] Y. Kevin, Hui Song. International Journal of Machine Tools & Manufacture Vol. 45 (2005), p.481.

[2] Y. Kevin Chou, Chris J. Evans. International journal of Machine Tools & Manufacture Vol. 39 (1999), p.1863.

[3] S.S. Bosheh, P.T. Mativenga. International Journal of Machine Tools & Manufacture Vol. 46 (2006), p.225.

[4] A. Ramesh, S.N. Melkote, L.F. Allard, L. Riester, T.R. Watkins. Materials Science and Engineering A Vol. 390 (2005), p.88.

[5] G. Poulauchon, A. Moisan, I.S. Jawahir. Wear Vol. 250 (2001), p.576. Fig. 7 Relation between cutting speed and white layer thickness Fig. 8 Relation between tool edge temperature and white layer thickness.

[50] 100 150 200 250.

[3] [6] [9] [12] [15] [0] Cutting speed m/min White layer thickness μ m Workpiece: SCM415, d=0. 2mm, f=0. 08mm/rev, dry CBN1, VB=0. 05mm CBN1, VB=0. 1mm CBN4, VB=0. 05mm CBN4, VB=0. 1mm 800 850 900 950 1000.

[2] [4] [6] [8] [10] Tool edge temperature ℃ White layer thickness μ m Workpiece: SCM415 d=0. 2mm, f=0. 08mm/rev, dry VB=0. 1mm VB=0. 05mm 100 150 200m/min CBN4 CBN1.
