A Study of Key Optical Profiler Parameters for Form Error Measurement

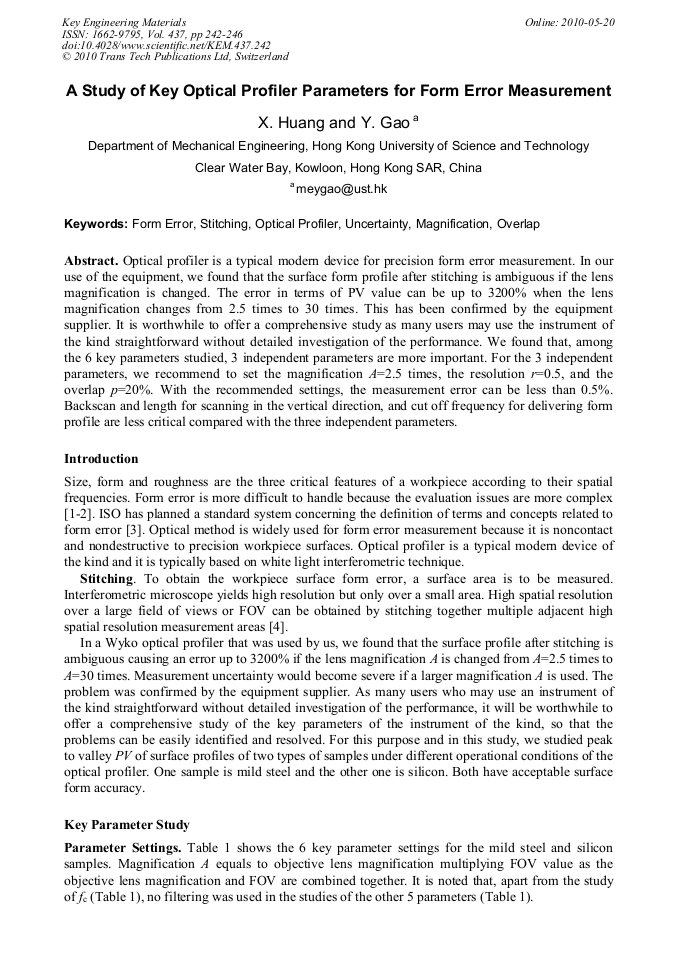

Abstract:

Optical profiler is a typical modern device for precision form error measurement. In our use of the equipment, we found that the surface form profile after stitching is ambiguous if the lens magnification is changed. The error in terms of PV value can be up to 3200% when the lens magnification changes from 2.5 times to 30 times. This has been confirmed by the equipment supplier. It is worthwhile to offer a comprehensive study as many users may use the instrument of the kind straightforward without detailed investigation of the performance. We found that, among the 6 key parameters studied, 3 independent parameters are more important. For the 3 independent parameters, we recommend to set the magnification A=2.5 times, the resolution r=0.5, and the overlap p=20%. With the recommended settings, the measurement error can be less than 0.5%. Backscan and length for scanning in the vertical direction, and cut off frequency for delivering form profile are less critical compared with the three independent parameters.

You might also be interested in these eBooks

Measurement Technology and Intelligent Instruments IX

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 437)

Pages:

242-246

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.437.242

Citation:

Cite this paper

Online since:

May 2010

Authors:

X. Huang, Y. Gao

Keywords:

Form Error, Magnification, Optical Profiler, Overlap, Stitching, Uncertainty

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] C. Cui, B. Li, F. Huang and R. Zhang: Meas. Sci. Technol. Vol. 18 (2007), p.1818.

Google Scholar

[2] C.J. Evans: CIRP Annals - Manufacturing Technology (2008), in press.

Google Scholar

[3] ISO: ISO 1101: 2004 ISO/TC213 (ISO, 2004).

Google Scholar

[4] J.C. Wyant: Int. Journal of Machine Tools and Manufacture Vol. 38. No. 5-6 (1998), p.691.

Google Scholar

[5] Veeco Metrology Group: Wyko Surface Profilers Technical Reference Manual (Veeco, 1999). Filtering cut off frequency fc (1/mm) Peak-valley value of surface form profile PV(y(x) (µm).
