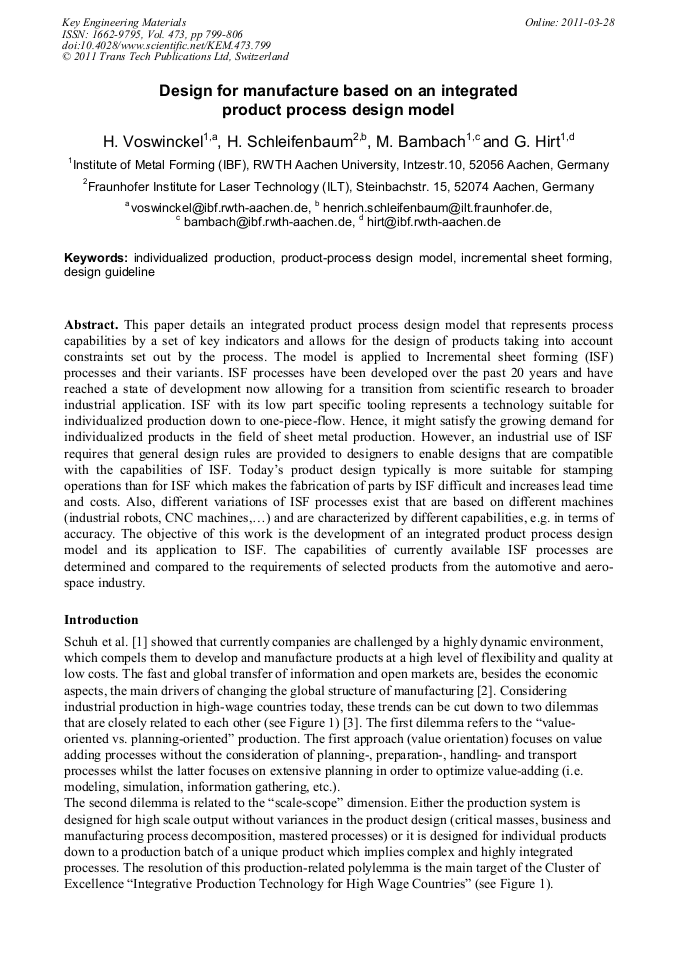

Design for Manufacture Based on an Integrated Product Process Design Model

Abstract:

This paper details an integrated product process design model that represents process capabilities by a set of key indicators and allows for the design of products taking into account constraints set out by the process. The model is applied to Incremental sheet forming (ISF) processes and their variants. ISF processes have been developed over the past 20 years and have reached a state of development now allowing for a transition from scientific research to broader industrial application. ISF with its low part specific tooling represents a technology suitable for individualized production down to one-piece-flow. Hence, it might satisfy the growing demand for individualized products in the field of sheet metal production. However, an industrial use of ISF requires that general design rules are provided to designers to enable designs that are compatible with the capabilities of ISF. Today’s product design typically is more suitable for stamping operations than for ISF which makes the fabrication of parts by ISF difficult and increases lead time and costs. Also, different variations of ISF processes exist that are based on different machines (industrial robots, CNC machines,…) and are characterized by different capabilities, e.g. in terms of accuracy. The objective of this work is the development of an integrated product process design model and its application to ISF. The capabilities of currently available ISF processes are determined and compared to the requirements of selected products from the automotive and aero-space industry.

• Periodical: Key Engineering Materials (Volume 473)
• Pages: 799-806
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.473.799
• Online since: March 2011
• Authors: H. Voswinckel, Heinrich Schleifenbaum, Markus Bambach, Gerhard Hirt
• Keywords: Design Guideline, Incremental Sheet Forming (ISF), Individualized Production, Product-Process Design Model

References

[1] Schuh, G., Monostori, L., Csaji, B. C., Döring, S. (2008): Complexity-based modeling of reconfigurable collaborations in production industry, In: Annals of the CIRP, Vol. 57, No. 1, pp.445-450.

DOI: 10.1016/j.cirp.2008.03.013

[2] Abele, E., Liebeck, T., Wörn, A. (2006): Measuing Flexibility in Investment Decision for Manufacturing Systems', In: Annals of the CIRP, Vol. 55, No. 1, pp.433-440.

DOI: 10.1016/s0007-8506(07)60452-1

[3] Schuh, G., Klocke, F., Brecher, C., Schmitt, R. ( 2007): Excellence in Production, Aachen: Apprimus-Verlag.

[4] Schuh, G., Wienholdt, H. (2009): Flexible Configuration Logic for a complexity oriented design of production systems, POMS Conference 2009 - Global Challenges and Opportunities, Orlando, Florida, U.S. A.

[5] Taleb-Araghi, B., Göttmann, A., Bambach, M., Hirt, G. (2010).

[6] Bambach, M. et al. (2009), Strategies to improve the geometric accuracy in asymmetric single point incremental forming, Production Engineering, vol. 3, pp.145-156.

DOI: 10.1007/s11740-009-0150-8

[7] Bambach, M. (2008).: Process strategies and modelling approaches for asymmetric incremental sheet forming, Umformtechnische Schriften Band 139, Shaker Verlag, Aachen.

[8] Allwood, J.M.; King, G.P.F.; Douflou, J.: A structured search for applications of the incremental sheet-forming process by product segmentation; Proc. IMechE Vol. 219 Part B: Engineering Manufacture, (2005).

DOI: 10.1243/095440505x8145

[9] Taleb-Araghi, B., Manco, G., Bambach, M., Hirt, G.: Investigation into a new hybrid forming process: Incremental sheet forming combined with stretch forming, CIRP Annals, 58-1 (2009), 225-228.

DOI: 10.1016/j.cirp.2009.03.101

[10] Karne, R. K. et al. (1998) Integrated product and process design environment tool for manufacturing T/R modules. Journal of Intelligent Manufacturing vol. 9, pp.9-15.

[11] Ettlie, J.E., (1995). Product-Process Development Integration in Manufacturing, Management Science, Vol. 41, No. 7, p.1224–123.

[12] Damanpour, F., Gopoalakrishnan, S. (1999). Organizational Adaptation and Innovation: The Dynamics of Adopting Innovation Types, in Brockhoff, K., Chakrabarti, A., Hauschild, J. (eds. ), The Dynamics of Innovation, Springer, Berlin, p.57–80.

DOI: 10.1007/978-3-662-03988-5_3

[13] Utterback, J. M., Abernathy, W. J. (1975). A Dynamic Model of Process and Product Innovation. The International Journal of Management Science, Vol. 3, No. 6, p.639–656.

DOI: 10.1016/0305-0483(75)90068-7

[14] Eversheim, W., Schuh, G., (Edt), (2005). Integrierte Produkt- und Prozessgestaltung, Springer Verlag.

DOI: 10.1007/3-540-26946-0_2

[15] Eversheim, W., Schuh, G. (1996): Betriebshütte – Produktion und Management. Berlin: Springer-Verlag.

DOI: 10.1007/978-3-642-87947-0
