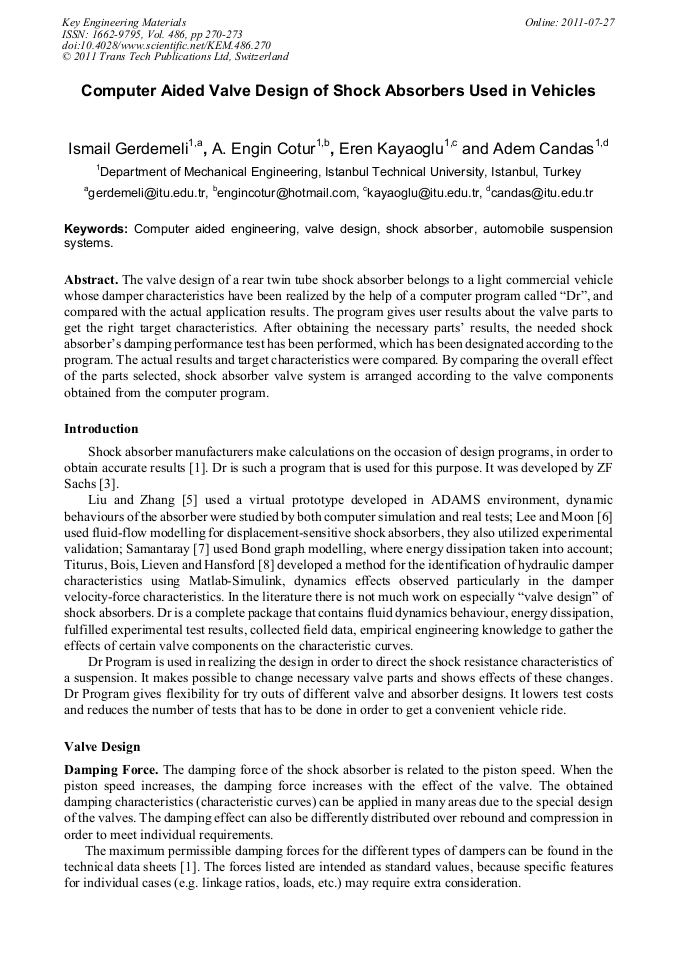

Computer Aided Valve Design of Shock Absorbers Used in Vehicles

Abstract:

The valve design of a rear twin tube shock absorber belongs to a light commercial vehicle whose damper characteristics already known has been realized by the help of a computer program called “Dr”, and compared with the actual application results. The program gives user results about the valve parts to get the right target characteristics. After obtaining the necessary parts’ results, the needed damping performance test has been performed by the shock absorber, which has been conflated according to the program. The actual results and target characteristics were compared. ”Dr” program enables the user to select the correct parts to be used in valve system by detecting every effect on target characteristics diagram. By comparing the overall effect of the parts selected, shock absorber valve system is conflated according to the valve components obtained from the computer program.

• Periodical: Key Engineering Materials (Volume 486)
• Pages: 270-273
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.486.270
• Online since: July 2011
• Authors: Ismail Gerdemeli, A. Engin Cotur, Eren Kayaoglu, Adem Candas
• Keywords: Automobile Suspension Systems, Computer Aided Engineering, Shock Absorber, Valve Design

References

[1] H. Baalmann and O. Lichtlein: World Design Twintube Dampers and Struts (ZF Sachs AG Schweinfurt, Germany 2002)

[2] P. Causemann: Automotive Shock Absorbers: Features, Designs, Applications (Verlag Moderne Industrie, Sachs, Germany 2001)

[3] G. Fahrwerk: Design Manuel for Dampers and Struts, Suspension Division, Advanced Development (ZF Sachs AG Schweinfurt, Germany 2007)

[4] A. E. Cotur, Computer Aided Valve Design of Shock Absorbers Used in Vehicles, Application And It's Performance Test, M.Sc. thesis. (ITU Graduate School of Science, Engineering and Technology, Istanbul 2010)

[5] Y. Liu and J. Zhang: Nonlinear Dynamic Responses of Twin-Tube Hydraulic Shock Absorber, Mechanics Research Communications 29 (2002) p.359–365

DOI: 10.1016/s0093-6413(02)00260-4

[6] C. T. Lee and B. Y. Moon: Simulation and Experimental Validation of Vehicle Dynamic Characteristics for Displacement-Sensitive Shock Absorber Using Fluid-Flow Modelling, Mechanical Systems and Signal Processing 20 (2006) p.373–388

DOI: 10.1016/j.ymssp.2004.09.006

[7] A. K. Samantaray: Modelling and Analysis of Preloaded Liquid Spring/Damper Shock Absorbers, Simulation Modelling Practice and Theory 17 (2009) p.309–325

DOI: 10.1016/j.simpat.2007.07.009

[8] B. Titurus, J. Bois, N. Lieven and R. Hansford: A Method for the Identification of Hydraulic Damper Characteristics from Steady Velocity Inputs, Mechanical Systems and Signal Processing 24 (2010) p.2868–2887

DOI: 10.1016/j.ymssp.2010.05.021
