Numerical Simulation and Balance Design of Rubber Injection Mold Gating System Based on POLYFLOW

Lian Shuai Chen; Hui Min Zhang; Jia Teng Niu

doi:10.4028/www.scientific.net/KEM.501.190

Paper Titles

Filling-to-Packing Switchover Mode Based on Cavity Pressure for Injection Molding
p.168

Experimental Studies on Epoxy-Amine System Using Microwave and Conventional Curing Approaches
p.174

Dynamic Modeling and Vibration Analysis of the Drum Washing Machine Based on Four-Terminal Parameter Method
p.179

The Study of Electroless Ni-B Coating on 45 Steel
p.185

Numerical Simulation and Balance Design of Rubber Injection Mold Gating System Based on POLYFLOW
p.190

The Addition of ABS-g-MAH on Properties of Nylon6/ABS Alloy
p.196

Mesoscale Simulation of Drug Molecules Distribution in the Matrix of Konjac Glucomannan (KGM) at Varying Drug Concentrations
p.202

Preparation of Soy Protein Isolate Modified by Glutaric Dialdehyde and its Application in Rubber Composite
p.208

Research on Moulding Process and Dielectric Property of Polyimide Foam
p.215

HomeKey Engineering MaterialsKey Engineering Materials Vol. 501Numerical Simulation and Balance Design of Rubber...

Numerical Simulation and Balance Design of Rubber Injection Mold Gating System Based on POLYFLOW

Abstract:

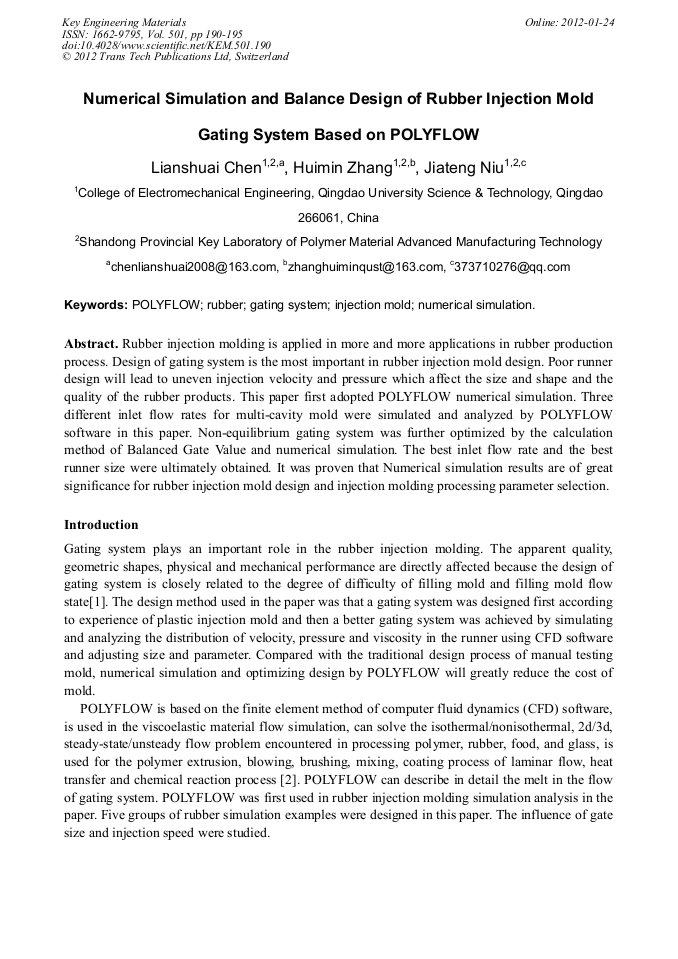

Rubber injection molding is applied in more and more applications in rubber production process. Design of gating system is the most important in rubber injection mold design. Poor runner design will lead to uneven injection velocity and pressure which affect the size and shape and the quality of the rubber products. This paper first adopted POLYFLOW numerical simulation. Three different inlet flow rates for multi-cavity mold were simulated and analyzed by POLYFLOW software in this paper. Non-equilibrium gating system was further optimized by the calculation method of Balanced Gate Value and numerical simulation. The best inlet flow rate and the best runner size were ultimately obtained. It was proven that Numerical simulation results are of great significance for rubber injection mold design and injection molding processing parameter selection.
