Development of a Calorimeter to Determine the Chip Heat in Drilling of C45EN

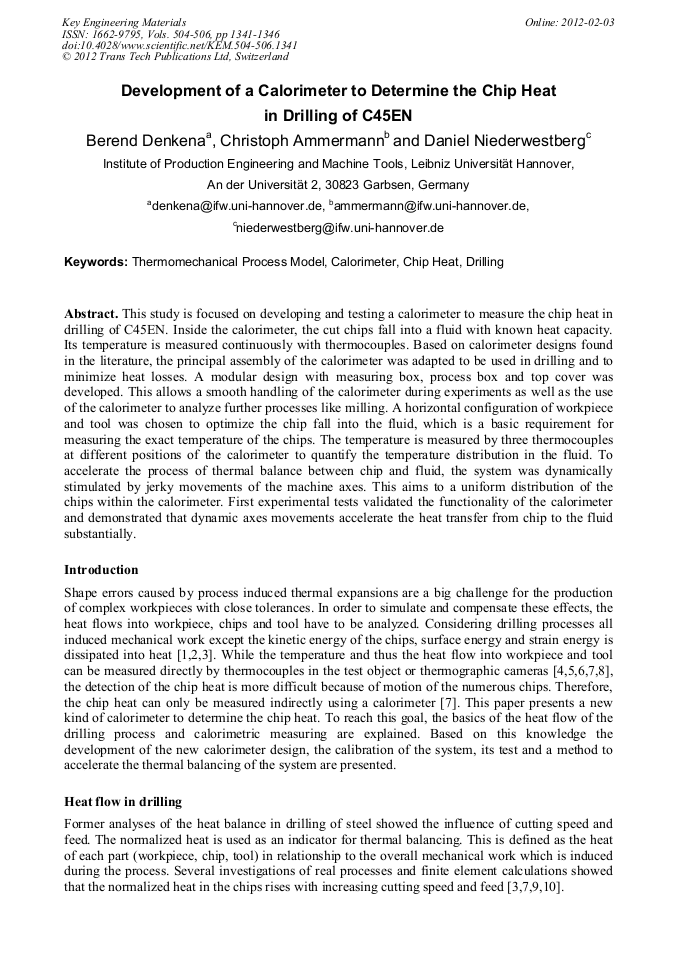

Abstract:

This study is focused on developing and testing a calorimeter to measure the chip heat in drilling of C45EN. Inside the calorimeter, the cut chips fall into a fluid with known heat capacity. Its temperature is measured continuously with thermocouples. Based on calorimeter designs found in the literature, the principal assembly of the calorimeter was adapted to be used in drilling and to minimize heat losses. A modular design with measuring box, process box and top cover was developed. This allows a smooth handling of the calorimeter during experiments as well as the use of the calorimeter to analyze further processes like milling. A horizontal configuration of workpiece and tool was chosen to optimize the chip fall into the fluid, which is a basic requirement for measuring the exact temperature of the chips. The temperature is measured by three thermocouples at different positions of the calorimeter to quantify the temperature distribution in the fluid. To accelerate the process of thermal balance between chip and fluid, the system was dynamically stimulated by jerky movements of the machine axes. This aims to a uniform distribution of the chips within the calorimeter. First experimental tests validated the functionality of the calorimeter and demonstrated that dynamic axes movements accelerate the heat transfer from chip to the fluid substantially.

• Periodical: Key Engineering Materials (Volumes 504-506)
• Pages: 1341-1346
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.504-506.1341
• Online since: February 2012
• Authors: Berend Denkena, Christoph Ammermann, Daniel Niederwestberg
• Keywords: Calorimeter, Chip Heat, Drilling, Thermomechanical Process Model

References

[1] A. Mohlfeld, Trockenbohren mit PVD-beschichteten Hartmetallwerkzeugen, VDI-Verlag, Düsseldorf, (2000)

[2] M. Kronenberg, Machining Science and Application, Pergamon Press, Oxford, (1966)

[3] G. Vieregge, Die Energieverteilung und die Temperaturen bei der Zerspanung, Werkstatt und Betrieb, 86 (11) (1953) 69-73

[4] J. Fleischer, R. Papst, S. Kelemen, Heat Flow Simulation for Dry Machining of Power Train Castings, CIRP Annals – Manufacturing Technology 56 (1) (2007) 117-122

DOI: 10.1016/j.cirp.2007.05.030

[5] K. Weinert, F. Brinkel, C. Kempmann, K. Pantke, The Dependency of Material Properties and Process Conditions on the Cutting Temperature when Drilling Polymers, Production Engineering – Research and Development (2007) 381-387

DOI: 10.1007/s11740-007-0015-y

[6] U. Heisel, M. Storchak, P. Eberhard, T. Gaugele, Experimental Studies for Verification of Thermal Effects in Cutting, Production Engineering – Research and Development (2011) 507-515

DOI: 10.1007/s11740-011-0312-3

[7] D. Opalla, Hochleistungsbohren metallischer Werkstoffe mit Wendelbohrern, Vulkan-Verlag, Essen, 2003.

[8] U. Heisel, M. Schaal, Burr Formation in Short Hole Drilling with Minimum Quantity Lubrication, Production Engineering – Research and Development (2009) 157-163

DOI: 10.1007/s11740-009-0153-5

[9] A.O. Schmidt, J.R. Roubik, Distribution of Heat Generated in Drilling, Transactions of the ASME 71 (1949) 245

[10] M. Bono, J. Ni, The Location of the Maximum Temperature on the Cutting Edge of a Drill, International Journal of Machine Tools & Manufacturing 46 (2005) 901-907

DOI: 10.1016/j.ijmachtools.2005.04.020

[11] G. Eisenblätter, Trockenbohren mit Vollhartmetallwerkzeugen, Shaker, Aachen, (2000)

[12] W. Beitz, K.H. Grote, Dubbel – Taschenbuch für den Maschinenbau, Vulkan Verlag, Berlin, (2000)

[13] W. Koehler, Analyse des Einflusses der Schneidenform auf den Hochleistungsbohrprozess, Vulkan Verlag, Essen, (2004)
