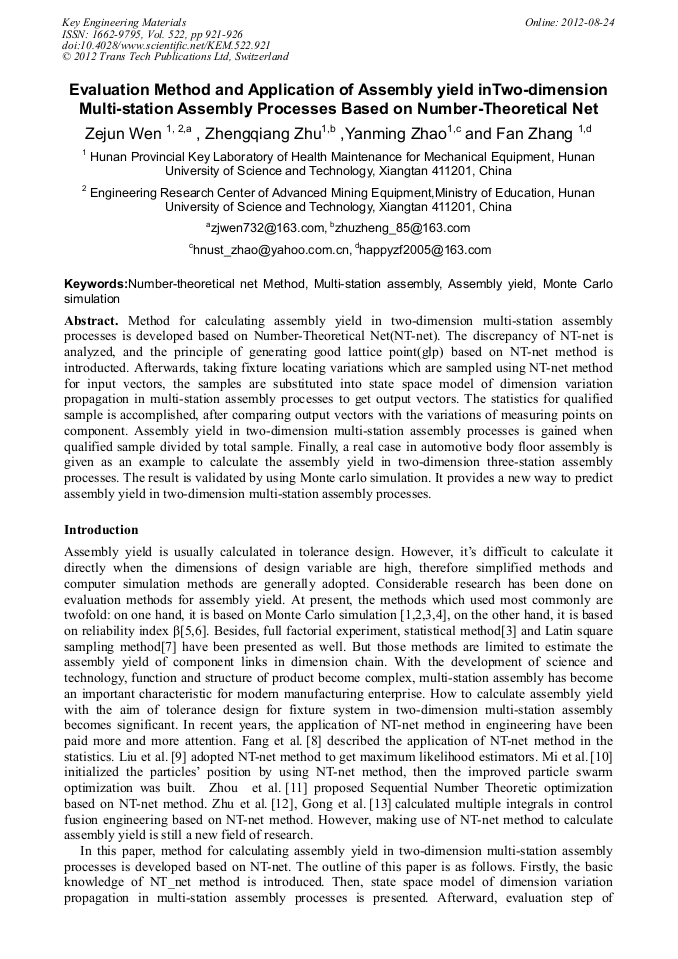

Evaluation Method and Application of Assembly Yield in Two-Dimension Multi-Station Assembly Processes Based on Number-Theoretical Net

Abstract:

Method for calculating assembly yield in two-dimension multi-station assembly processes is developed based on Number-Theoretical Net (NT-net). The discrepancy of NT-net is analyzed, and the principle of generating good lattice point (glp) based on NT-net method is introducted. Afterwards, taking fixture locating variations which are sampled using NT-net method for input vectors, the samples are substituted into state space model of dimension variation propagation in multi-station assembly processes to get output vectors. The statistics for qualified sample is accomplished, after comparing output vectors with the variations of measuring points on component. Assembly yield in two-dimension multi-station assembly processes is gained when qualified sample divided by total sample. Finally, a real case in automotive body floor assembly is given as an example to calculate the assembly yield in two-dimension three-station assembly processes. The result is validated by using Monte carlo simulation. It provides a new way to predict assembly yield in two-dimension multi-station assembly processes.

• Periodical: Key Engineering Materials (Volume 522)
• Pages: 921-926
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.522.921
• Online since: August 2012
• Authors: Ze Jun Wen, Zheng Qiang Zhu, Yan Ming Zhao, Fan Zhang
• Keywords: Assembly Yield, Monte-Carlo Simulation, Multi-Station Assembly, Number-Theoretical Net Method

References

[1] W. J. Lee, G. E. Johnson. Computer-Aided Design, Vol. 25(1993), p.601.

[2] J.X. Yang and Z.T. Wu: Journal of Mechanical &Electrical Engineering, Vol. 4(1995), p.2.

[3] Y. He and H.F. Fang. Journal of China Textile University, Vol. 1(1998), p.46.

[4] J.P. Zhang and H. Tao. Modern Manufacturing Engineering, Vol. 10(2006), p.83.

[5] J. Deng, S. Deng: Advance Manufacturing Technology, Vol. 20(2002), pp.190-200.

[6] F. Zhang: Journal of Mechanical Transmission, Vol. 1(2008), p.58.

[7] M. Cai: Study Mathematical Modeling and Analysis Of Cylindrical Feature Based on Mathematical Definition (Ph.D. , Zhe Jiang University, China 2002). (In Chinese).

[8] K.T. Fang and Y. Wang: Number-theoretic methods in statistics (Science Publishing House, China 1996). (In Chinese).

[9] F. Liu, Y.F. Dou and W.H. Zhang: Journal of System Simulation, Vol. 19(2006), pp.2534-2536.

[10] L.B. Mi and L.W. Tan: Computer Science, Vol. 4(2008), p.941.

[11] Zh.G. Zhou, W. Zh. Huang and L. Zhang: Journal of Shanghai Jiao Tong University, Vol. 3(2000), p.374.

[12] Y.K. Zhu: Chinese Journal of Computational Physics, Vol. 3(1986), p.369.

[13] Y. Gong: Journal of Dalian University of Technology, Vol. 1(2001), p.20.

[14] Q. Huang and J.J. Shi: Journal Science and Engineering, Vol. 3(2004), p.611.
