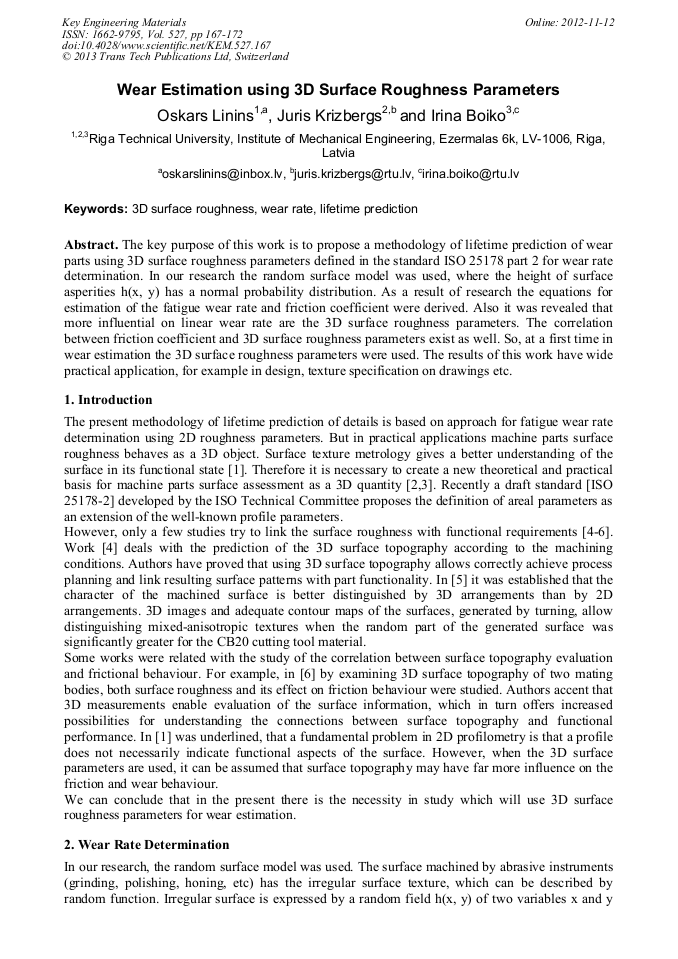

Wear Estimation Using 3D Surface Roughness Parameters

Abstract:

The aim of this work is to propose a methodology of lifetime prediction of details by new approach for linear wear intensity determination using 3D surface roughness parameters. For qualitative evaluation of the wear process the linear wear intensity (Ih), which may be determined separately for the plastic and elastic contact, is commonly used. Since the elastic contact is mainly required in pairs of details in mechanical engineering in these paper this kind of contact was examined. In our research, the random surface model was used. The surface machined with abrasive instruments (grinding, polishing, honing, etc) has the irregular shape of surface roughness, which can be described with random function. Irregular surface is expressed by a random field h(x, y) of two variables x and y which are Cartesian coordinates of a surfaces point, where the height of roughness asperity h(x, y) has a normal probability distribution. In wear research the probability theory was used. Further in deformed volume calculation, as well as in determination of the length of the surface’s contact the 3D surface roughness parameters were used. The strong correlation between 3D roughness parameters Sa (arithmetic mean height) and Str=Rsm1/Rsm2 (texture aspect ratio of the surface) was revealed. As a result of research, the methodology of lifetime prediction of details by new approach for linear wear intensity determination using 3D surface roughness parameters was elaborated and proposed. After calculation of linear wear intensity Ih, it is possible to estimate lifetime of wearing details. So, at a first time in wear estimation the 3D surface roughness parameters were used. The results of this work have wide practical application, for example in design, texture specification on drawings etc.

• Periodical: Key Engineering Materials (Volume 527)
• Pages: 167-172
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.527.167
• Online since: November 2012
• Authors: Oskars Linins, Juris Krizbergs, Irina Boiko
• Keywords: 3D Surface Roughness, Lifetime Prediction, Wear Rate

References

[1] J. Petzing, J.Coupland, R.Leach, The measurement of rough surface topography using coherence scanning interferometry, Good practice guide No.116, National Physical Laboratory, Hampton Road, UK, 2010.

[2] J. Rudzitis, G. Konrads, Surface roughness analyses of air compressor cylinders, RTU Scientific proceedings. 6 (2007) 54-58.

[3] E.B. Las Casas; F.S. Bastos; G.C.D. Godoy; V.T.L. Buono, Enamel wear and surface roughness characterization using 3D profilometry, Tribology International, 41 (2008) 1232-1236.

DOI: 10.1016/j.triboint.2008.03.008

[4] Y. Quinsata, S. Lavernhea, C. Lartiguea, Characterization of 3D surface topography in 5-axis milling, Wear, 271 (2011) 590–595.

DOI: 10.1016/j.wear.2010.05.014

[5] A. Zawada-Tomkiewicz, Analysis of surface roughness parameters achieved by hard turning with the use of PCBN tools, Estonian Journal of Engineering, 17 (2011) 88–99.

DOI: 10.3176/eng.2011.1.09

[6] L. Xiao, B.-G. Rosen, N. Amini, P.H. Nilsson, A study on the effect of surface topography on rough friction in roller contact, Wear, 254 (2003) 1162–1169.

DOI: 10.1016/s0043-1648(03)00329-6

[7] I. Kragelsky, V. Alisin, Tribology – Lubrication, Friction and Wear, Mir publishers, Moscow, 2001.

[8] O. Linins, D. Rags, N.Mozga, Calculation of wear with application of stray fields to roughness evaluation of friction surfaces, Proc. 56th IWK, Ilmenau (2011) 4.

[9] I. Kragelsky, M. Dobichin, V. Kombalov, Fundamentals of Friction and Wear Calculation, Mashinostroenie, Moscow, 1977. (in Russian)

[10] J. Rudzitis, Contact Mechanics of Surfaces, RTU, Riga, 2007. (in Russian)

[11] W. Yan, N.P. O'Dowd, E.P. Busso, Numerical study of sliding wear caused by a loaded pin on a rotating disc, Journal of the Mechanics and Physics of Solids, 50/3 (2002) 449-470.

DOI: 10.1016/s0022-5096(01)00093-x

[12] Exploring surface texture, a fundamental guide to the measurement of surface finish, Taylor Hobson Ltd, Leicester, Great Britain, 2003.
