Dimensional Changes by Heat Treatment of Helical Gear

Abstract:

The dimensional change of tooth profile by heat treatment of helical gear was investigated by experimental and numerical approaches. Especially, the three-dimensional elasto-plastic finite element (FE) simulation was adopted to analyze the elastic deformation during load, unloading, ejecting of workpiece. Quenching simulation was also carried out to investigate the change of tooth profile on the forged gear. In experiments, the amount of elastic deformation of the forged gear was quantitatively determined by comparing the tooth profiles on the forged gear and die. The dimensional change of the forged gear tooth after quenching was also evaluated from the comparision of the cold forged and quenched gear teeth. From experimental works, it was found that the amounts of dimensional changes after forging and quenching of helical gear are 10 and 10 μm, respectively.

You might also be interested in these eBooks

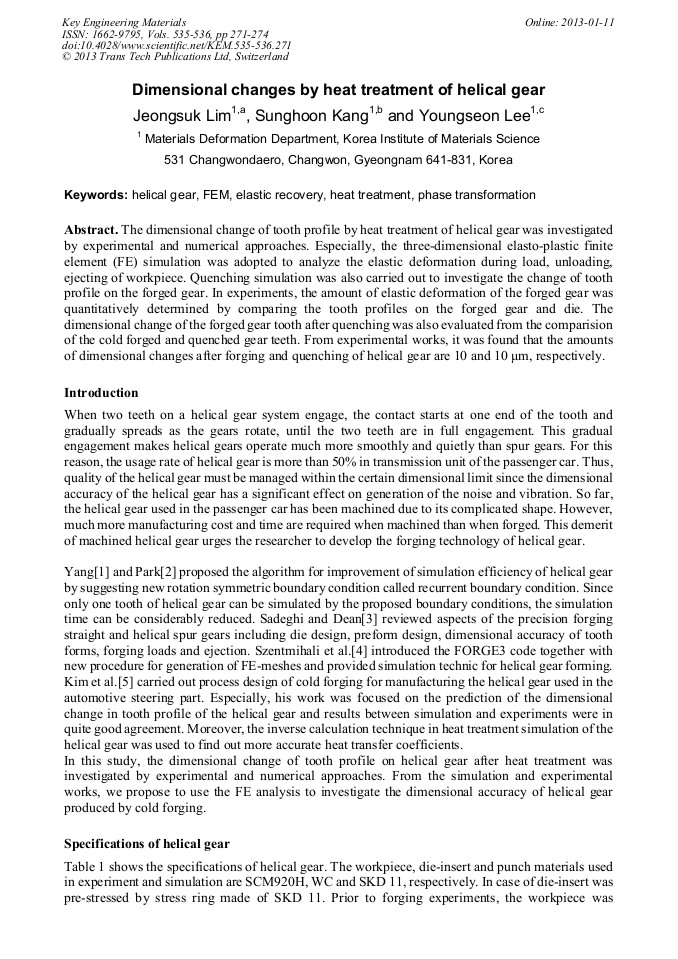

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 535-536)

Pages:

271-274

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.535-536.271

Citation:

Cite this paper

Online since:

January 2013

Authors:

Jeongsuk Lim, Sunghoon Kang, Young Seon Lee

Keywords:

Elastic Recovery, Finite Element Method (FEM), Heat Treatment, Helical Gear, Phase Transformation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Yang, D.Y., Investigation into Non-Steady-State Three-Dimensional Extrusion of a Trocoidal Helical Gear by the Rigid-Plastic Finite Element Method, Annals of the CIRP 43 (1994) 229-233.

DOI: 10.1016/s0007-8506(07)62202-1

Google Scholar

[2] Park, Y. B. and Yang, D. Y., Analysis of Torsional Deformation by Rigid-Plastic Finite Element Method using Recurrent Boundary Conditions, J. Mater. Process. Technol., 182 (2007) 303-311.

DOI: 10.1016/j.jmatprotec.2006.08.008

Google Scholar

[3] Sadeghi, M. H. and Dean, T. A., Precision Forging Straight and Helical Spur Gears, J. Mater. Process. Technol., 45 (1994) 25-30.

DOI: 10.1016/0924-0136(94)90313-1

Google Scholar

[4] Szentmihali, V., Lange, K., Tronel, Y., Chenot, J. L. and Ducloux, R., 3-D Finite-Element Simulation of the Cold Forging of Helical Gears, J. Mater. Process. Technol., 43 (1994) 279-291.

DOI: 10.1016/0924-0136(94)90026-4

Google Scholar

[5] Kim, S. Y., Kubota, S. and Yamanaka, M., Application of CAE in Cold Forging and Heat Treatment Processes for Manufacturing of Precision Helical Gear Part, J. Mater. Process. Technol., 201 (2008) 25-31.

DOI: 10.1016/j.jmatprotec.2007.11.219

Google Scholar
