Large Deflection of a Pin-Supported Slender Geometrically Asymmetric Sandwich Beam under Transverse Loading

Abstract:

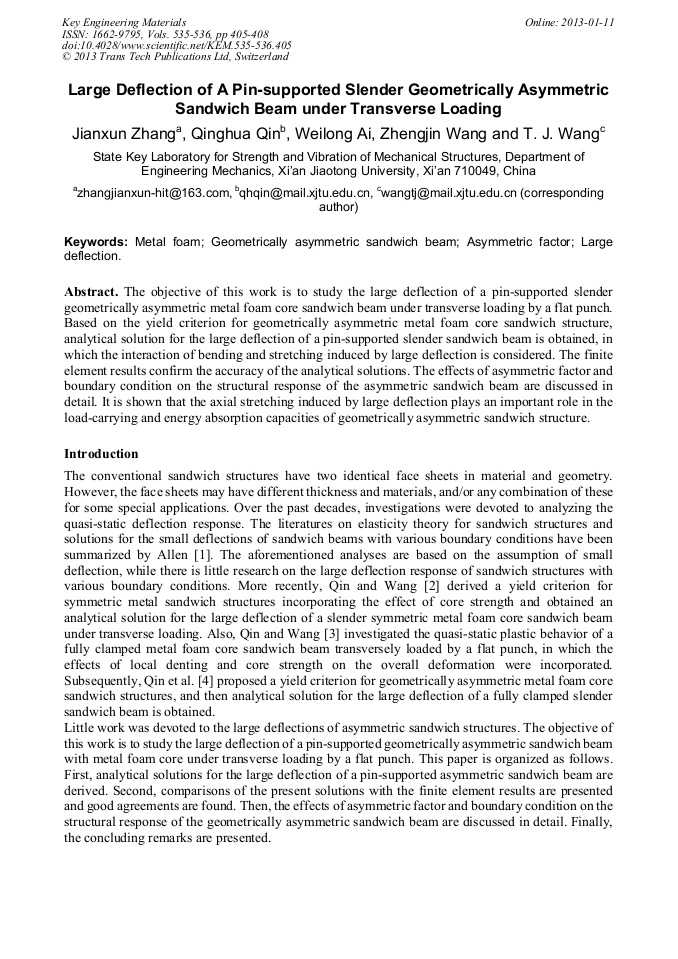

Article Preview

The objective of this work is to study the large deflection of a pin-supported slender geometrically asymmetric metal foam core sandwich beam under transverse loading by a flat punch. Based on the yield criterion for geometrically asymmetric metal foam core sandwich structure, analytical solution for the large deflection of a pin-supported slender sandwich beam is obtained, in which the interaction of bending and stretching induced by large deflection is considered. The finite element results confirm the accuracy of the analytical solutions. The effects of asymmetric factor and boundary condition on the structural response of the asymmetric sandwich beam are discussed in detail. It is shown that the axial stretching induced by large deflection plays an important role in the load-carrying and energy absorption capacities of geometrically asymmetric sandwich structure.

Info:

Periodical:

Key Engineering Materials (Volumes 535-536)

Edited by:

Guoxing Lu and Qingming Zhang

Pages:

405-408

DOI:

10.4028/www.scientific.net/KEM.535-536.405

Citation:

J. X. Zhang et al., "Large Deflection of a Pin-Supported Slender Geometrically Asymmetric Sandwich Beam under Transverse Loading", Key Engineering Materials, Vols. 535-536, pp. 405-408, 2013

Online since:

January 2013

Export:

Price:

$38.00

[1] H.G. Allen, Analysis and Design of Structural Sandwich Panels, Pergamon Press, New York, (1969).

[2] Q.H. Qin, T.J. Wang, An analytical solution for the large deflections of a slender sandwich beam with a metallic foam core under transverse loading by a flat punch, Compos. Struct. 88 (2009) 509-518.

DOI: 10.1016/j.compstruct.2008.05.012

[3] Q.H. Qin, T.J. Wang, Plastic analysis of metal foam core sandwich beam transversely loaded by a flat punch: combined local denting and overall deformation, J. Appl. Mech. 79 (2012) 041010-6-12.

DOI: 10.1115/1.4005561

[4] Q.H. Qin, J.X. Zhang, Z.J. Wang, T.J. Wang, Large deflection of geometrically asymmetric metal foam core sandwich beam transversely loaded by a flat punch, Int. J. Aerosp. Lightweight Struct. 1 (2011) 23-46.

DOI: 10.3850/s2010428611000079

[5] V.S. Deshpande, N.A. Fleck, Isotropic constitutive models for metallic foams, J. Mech. Phys. Solids 48 (2000) 1253-1283.

DOI: 10.1016/s0022-5096(99)00082-4
