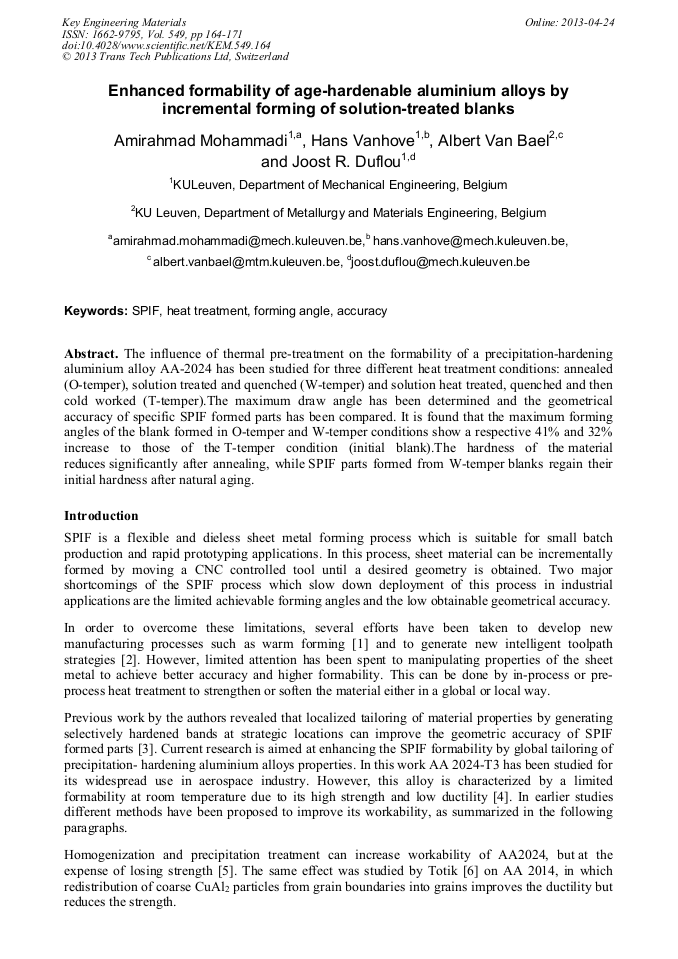

Enhanced Formability of Age-Hardenable Aluminium Alloys by Incremental Forming of Solution-Treated Blanks

Abstract:

The influence of thermal pre-treatment on the formability of a precipitation-hardening aluminium alloy AA-2024 has been studied for three different heat treatment conditions: annealed (O-temper), solution treated and quenched (W-temper) and solution heat treated, quenched and then cold worked (T-temper).The maximum draw angle has been determined and the geometrical accuracy of specific SPIF formed parts has been compared. It is found that the maximum forming angles of the blank formed in O-temper and W-temper conditions show a respective 41% and 32% increase to those of the T-temper condition (initial blank).The hardness of the material reduces significantly after annealing, while SPIF parts formed from W-temper blanks regain their initial hardness after natural aging.

• Periodical: Key Engineering Materials (Volume 549)
• Pages: 164-171
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.549.164
• Online since: April 2013
• Authors: Amirahmad Mohammadi, Hans Vanhove, Albert van Bael, Joost R. Duflou
• Keywords: Accuracy, Forming Angle, Heat Treatment, SPIF

References

[1] J.R. Duflou, B. Callebaut1, J. Verbert, H. De Baerdemaeker: CIRP Annals – Manufacturing Technology Vol. 56 (2007), p.273–276.

DOI: 10.1016/j.cirp.2007.05.063

[2] J.R Duflou, J. Verbert, B. Belkassem, J. Gu, H. Sol, C. Henrard, A. Habraken: CIRP Annals-Manufacturing Technology Vol. 57(2008), pp.253-256.

DOI: 10.1016/j.cirp.2008.03.030

[3] A. Mohammadi, H. Vanhove, A.K. Behera, A. Van Bael and J.R. Duflou: Key Engineering Materials  Vol. 504 - 506 (2012), pp.827-832.

DOI: 10.4028/www.scientific.net/kem.504-506.827

[4] L. Wang, M. Strangwood, D. Balint, J. Lin and T. A. Dean: Mats Sci. Eng A Vol. 528 (2010), pp.2648-2656.

[5] M.E. Kassner, X. Li, and H.J. McQueen: Mat. Sci. Eng. Vol. 169 (1993), pp.9-17.

[6] Y. Totik, M. Gavgali: Materials Characterization (2003) Vol. 49 (2003), p.261– 268

[7] P. Kulkarni, S. Prabhakar: 4th European Ls-Dyna Users Conference (2001), pp.27-34.

[8] B.-C. Ko, G.-S. Park, Y.-C. Yoo: Journal of Materials Processing Technology Vol. 95 (1999), p.210–215.

[9] RP. Garrett, J. Lin, TA. Dean: 11th International Conference on Sheet Metal (SheMet 2005), Trans Tech Publications Ltd (2005), pp.673-680.

[10] J. Cao, Z. C. Xia, T.G. Gutowski, J.Roth, report to U.S. Department of Energy (2010), Information on http://www.osti.gov/bridge

[11] R. Aerens, P. Eyckens, A. Van Bael, J.R. Duflou: International Journal of Advanced Manufacturing Technology Vol. 46 (2010), pp.969-982.

DOI: 10.1007/s00170-009-2160-2

[12] G. Hussain, L. Gao, N. Hayat, N. U. Dar: The International Journal of Advanced Manufacturing Technology Vol. 46 (2010), pp.543-549.

[13] J.T. Staley and D.J. Lege: Journal de. Physique III Vol. 3 (1993), pp.179-190.

[14] "Heat Treating of Aluminium Alloys", in Heat Treating, ASM Handbook, Vol. 4, ASM International, 1991.

[15] J. Jeswiet, F. Micari, G. Hirt, A. Bramley, J. R. Duflou, J. Allwood: CIRP Annals –Manufacturing Technology Vol. 54/2 (2005), pp.623-649.

DOI: 10.1016/s0007-8506(07)60021-3

[16] Precipitation Hardening, Second Edition, edited by J. W. Martin/ Butterworth-Heinemann Publishing, second edition (1998).

[17] A. Mohammadi, H. Vanhove, A. Van Bael and J.R. Duflou. (in press): Proceedings of the LANE 2012 Fürth, Germany, November, 12-15, 2012.

[18] C.C Torng, C. Huang and H.M Chang: Materials Science Forum Vol. 561-565 (2007), p.
