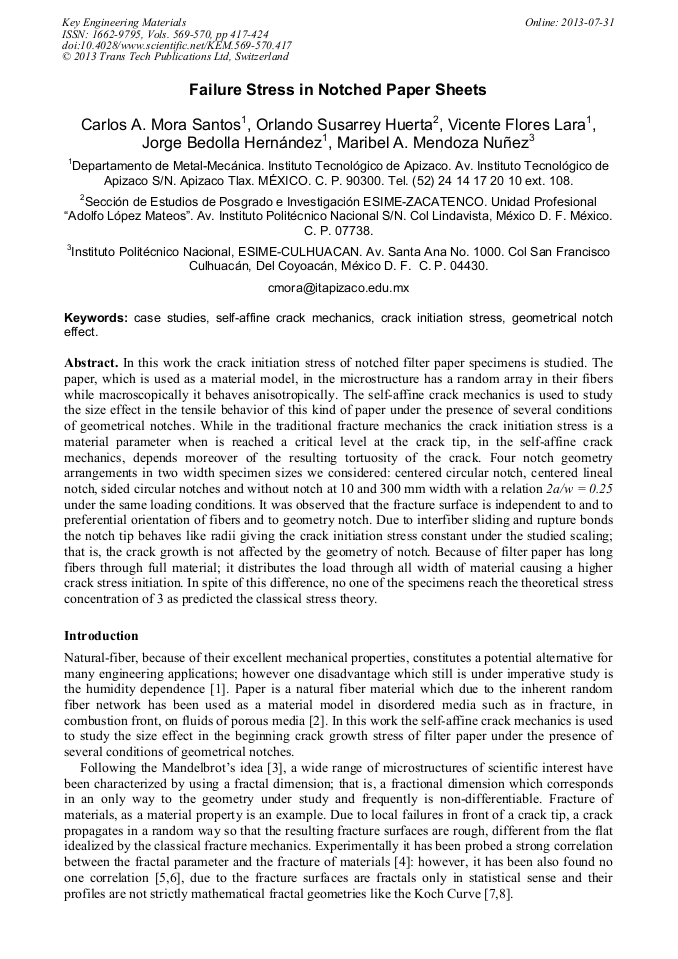

Failure Stress in Notched Paper Sheets

Abstract:

In this work the crack initiation stress of notched specimens of filter paper is studied. The paper in the microstructure has a random array in their fibers while macroscopically it behaves anisotropically. The self-affine crack mechanics is used to study the size effect in the tensile behavior of this kind of paper under the presence of several conditions of geometrical notches. While in the traditional fracture mechanics the crack initiation stress is a material parameter when is reached a critical level at the crack tip, in the self-affine crack mechanics, depends moreover of the resulting tortuosity of the crack. Four geometrical arrangements in two sizes we considered: centered circular notch, centered lineal notch, sided circular notches and without notch at 10 and 300 mm width with a relation 2a/w = 0.25 under the same loading conditions. In this, the without notch specimens present the higher stress, all other notched specimens presented a similar crack initiation stress about 1 % of difference among them, and the crack growth is not affected by the geometry of notch. In spite of this difference, no one of the specimens reach the theoretical stress concentration of 3 such as predicted the classical stress theory.

• Periodical: Key Engineering Materials (Volumes 569-570)
• Pages: 417-424
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.569-570.417
• Online since: July 2013
• Authors: Carlos A. Mora Santos, Orlando Susarrey Huerta, Vicente Flores Lara, Jorge Bedolla Hernández, Maribel A. Mendoza Nuñez
• Keywords: Case-Studies, Crack Initiation Stress, Geometrical Notch Effect, Self-Affine Crack Mechanics

References

[1] Kim L. Pickering (ed). Properties and Performance of Natural-Fiber Composites. Woodhead Publishing Limited and CRC Press LLC.

[2] M. J. Alava, K. Niskanen. The Physics of Paper. Rep. Prog. Phys. 69 (2006) 669-723.

DOI: 10.1088/0034-4885/69/3/r03

[3] B. B. Mandelbrot. The Fractal Geometry of Nature. W. H. Freeman and Company. New York, (1983).

[4] J. J. Mecholsky, , D. E. Passoja, K. S. Feinberg-Ringel. Quantitative Analysis of Brittle Fracture Surfaces using Fractal Geometry. J. Am. Cer. Soc. 72 (1989) 60-65.

DOI: 10.1111/j.1151-2916.1989.tb05954.x

[5] G. R. Baran, C. Roques-Carmes, D. Wehbi, M. Degrange. Fractal Characteristcs of Fracture Surfaces. J. Am. Cer. Soc. 75 (1992) 2687-2691.

DOI: 10.1111/j.1151-2916.1992.tb05489.x

[6] D. L. Davidson. Fracture Surface Roughness as a Gauge of Fracture Toughness: Aluminum-Particulate SiC Composites. J. Mat. Sci. 24 (1989) 681-687.

DOI: 10.1007/bf01107459

[7] A. S. Balankin. Physics of Fracture and Mechanics of Self-affine Cracks. Engng. Fracture Mech. 57 (1997) 135-203.

DOI: 10.1016/s0013-7944(97)00007-6

[8] M. P. Wnuk, A. Yavari. A Correspondence Principle for Fractal and Classical Cracks. Engng. Fracture Mech. 72 (2005) 2744-2757.

DOI: 10.1016/j.engfracmech.2005.07.003

[9] A. Seweryn, K. Molski. Elastic stress singularities and corresponding generalized stress intensity factors for angular corners under various boundary conditions. Engng. Fracture Mech. 55 (1996) 529–556.

DOI: 10.1016/s0013-7944(96)00035-5

[10] M. P. Savruk, A. Kazberuk. Two-dimensional fracture mechanics problems for solids with sharp and rounded V-notches. Int. J. Fract. 161 (2010) 79-95.

DOI: 10.1007/s10704-009-9430-8

[11] I. L. Menezes-Sobrinho, A. T. Bernardes, and J. G. Moreira, Failure regimes in (1+1) dimensions in fibrous materials. Phys. Rev. E 63(2001) 025104(R).

DOI: 10.1103/physreve.63.025104

[12] S. Santucci, L. Vanel, and S. Ciliberto, Subcritical Statistics in Rupture of Fibrous Materials: Experiments and Model. Phys. Rev. Lett. 93 (2004) 095505.

DOI: 10.1103/physrevlett.93.095505

[13] K. B. Broberg, Cracks and Fracture (Academic Press, NewYork, 1999).

[14] K. Hellan. Introduction to Fracture Mechanics. McGraw Hill Inc. Singapure, (1984).

[15] J. Li, M. Ostoja-Starzewski. Fractal solids, product measures and fractional wave equations. Proc. R. Soc. A 465 (2009) 2521-2536.

DOI: 10.1098/rspa.2009.0101

[16] S. J. Turrado, P. R. Ramírez, R. S. Pérez. Fiber properties and their influence on paper structure. In G. G. R. Allan (Ed): Interactive Paper, Proceedings of SPIE, Guadalajara, Méx, 1996, pp.45-55.

[17] N. Provatas, M. J. Alava, T. Ala-Nissila. Density Correlations in Paper. Phys. Rev. E 54(1996) R36-R38.

DOI: 10.1103/physreve.54.r36

[18] H. Tada, P. C. Paris, G. R. Irwin. The stress analysis of cracks handbook. 3rd Ed. The American Society of Mechanical Engineers, New York, (2000).

[19] J. Kertész, V. K. Horvárth, F. Weber. Self-affine rupture lines in paper sheets. Fractals 1 (1993) 67-74.

DOI: 10.1142/s0218348x93000101

[20] C. A. Mora Santos, M. del R. Rivera Martínez, O. Susarrey Huerta, A. Balankin, M. A. Mendoza Núñez. Key Engng. Mats. 449(2010) 23-28.

DOI: 10.4028/www.scientific.net/kem.449.23

[21] I. L. Menezes-Sobrinho, M. S. Couto, R. B. Ribeiro. Anisotropy in rupture line paper sheets. Phys. Rev. E 71 (2005), 066121.

DOI: 10.1103/physreve.71.066121

[22] Kotowski, P. Fractal Dimension of Metallic Fracture Surfaces. Int. J. Fract. 141 (2006) 269-286.

DOI: 10.1007/s10704-006-8264-x

[23] T. L. Anderson. Fracture Mechanics, fundamentals and applications, 2nd Ed. CRC Press LLC. Boca Raton, Florida, (1995).

[24] M. Schroeder. Fractals, Chaos, Power Laws. W. H. Freeman and Company, New York, (1991).

[25] A. S. Balankin, O. Susarrey, C. A. Mora Santos, J. Patiñoo, A. Yoguez, and E. I. García. Stress concentration and size effect in fracture of notched heterogeneous material. Phys. Rev. E 83 (2011), 015101(R).

DOI: 10.1103/physreve.83.015101
