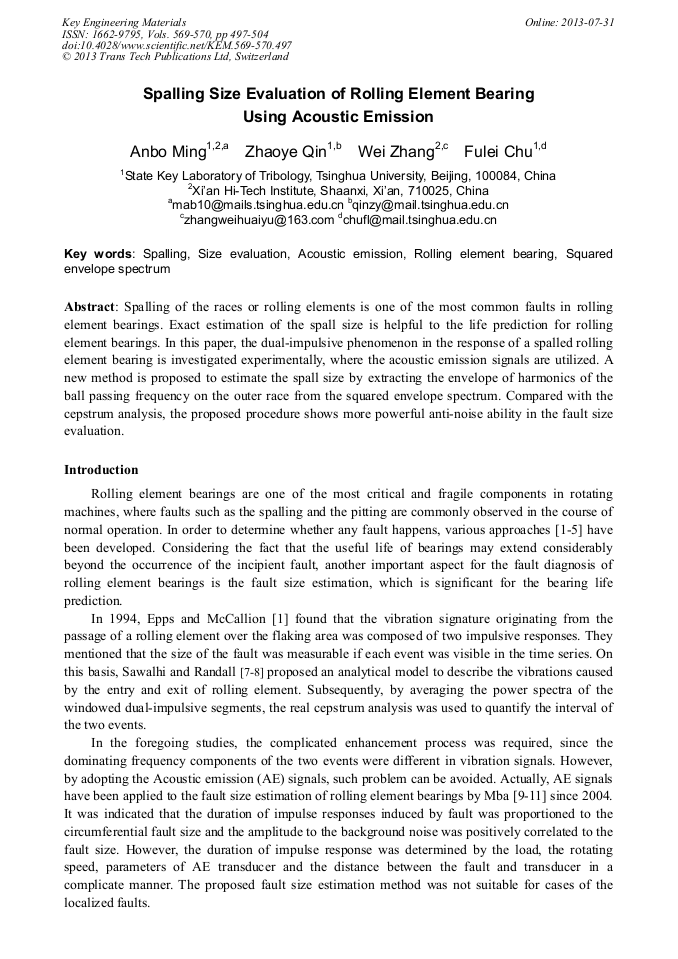

Spalling Size Evaluation of Rolling Element Bearing Using Acoustic Emission

Abstract:

Spalling of the races or rolling elements is one of the most common faults in rolling element bearings. Exact estimation of the spall size is helpful to the life prediction for rolling element bearings. In this paper, the dual-impulsive phenomenon in the response of a spalled rolling element bearing is investigated experimentally, where the acoustic emission signals are utilized. A new method is proposed to estimate the spall size by extracting the envelope of harmonics of the ball passing frequency on the outer race from the squared envelope spectrum. Compared with the cepstrum analysis, the proposed procedure shows more powerful anti-noise ability in the fault size evaluation.

• Periodical: Key Engineering Materials (Volumes 569-570)
• Pages: 497-504
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.569-570.497
• Online since: July 2013
• Authors: An Bo Ming, Zhao Ye Qin, Wei Zhang, Fu Lei Chu
• Keywords: Acoustic Emission (AE), Rolling Element Bearing, Size Evaluation, Spalling, Squared Envelope Spectrum

References

[1] R.B. Randall, J. Antoni. Rolling element bearing diagnostics—A tutorial. Mechanical Systems and Signal Processing. 25(2011): 485-520.

DOI: 10.1016/j.ymssp.2010.07.017

[2] J. Antoni. The spectral kurtosis: a useful tool for characterising non-stationary signals. Mechanical Systems and Signal Processing, 2006, 20(2): 282-307.

DOI: 10.1016/j.ymssp.2004.09.001

[3] J. Antoni, R.B. Randall. the spectral kurtosis: application to the vibratory surveillance and diagnostics of rotating machines. Mechanical Systems and Signal Processing, 2006, 20(2): 308-331.

DOI: 10.1016/j.ymssp.2004.09.002

[4] T. Barszcz, A. Jabłoński. A novel method for the optimal band selection for vibration signal demodulation and comparison with the kurtogram. Mechanical Systems and Signal Processing, 2011, 25(1): 431-451.

DOI: 10.1016/j.ymssp.2010.05.018

[5] J. Urbanek, J. Antoni, T. Barszcz. Detection of signal component modulations using modulation intensity distribution. Mechanical Systems and Signal Processing, 2012, 28(0): 399-413.

DOI: 10.1016/j.ymssp.2011.12.018

[6] I.K. Epps, H. McCallion. An investigation into the characteristics of vibration excited by discrete faults in rolling element bearings, in: Annual Conference of the Vibration Association of New Zealand, Christchurch, (1994).

[7] N. Sawalhi, R. B. Randall, Tracking of spall size in rolling element bearings. 6th International Conference on Condition Monitoring and Machinery Failure Prevention Technologies, Dublin, 23-25 June (2009).

[8] N. Sawalhi, R.B. Randall, Vibration response of spalled rolling element bearings Observations, simulations and signal processing techniques to track the spall size. Mechanical Systems And Signal Processing, 2011. 25(2011): 846-870.

DOI: 10.1016/j.ymssp.2010.09.009

[9] A.M. Al-Ghamd, D. Mba, A comparative experimental study on the use of acoustic emission and vibration analysis for bearing defect identification and estimation of defect size. Mechanical Systems and Signal Processing, 2006, 20(7): 1537-1571.

DOI: 10.1016/j.ymssp.2004.10.013

[10] A.M. Al-Ghamd, Zhechkov, D. Mba, The use of Acoustic Emission for bearing defect identification and estimation of defect size. DGZfP-Proeedings BB 90-CD, EWGAE, 2004, 397-406.

[11] Al-Dossary, R.I. Raja Hamzah, D. Mba, Acoustic emission waveform changes for varying seeded defect sizes. Advanced Materials Research, 2006, 427-432.
