Reliability and Bondability Study on Interfacial Behavior between SnAgCu Solder and Cu-Ni-Au OSP Pads

Abstract:

In this paper, micro interfacial behavior for Sn3.5Ag0.5Cu (SAC305) lead-free solder on Cu-Ni-Au substrate has been carefully investigated. It is observed that the intermetallic compound (IMC) ingredients along the SAC305 solder on the Cu-Ni-Ag substrate are (Ni, Cu)₃Sn₄ and (Cu, Ni)₆Sn₅ after reflow process. Reliability analysis for IMC ((Ni, Cu)₃Sn₄and (Cu, Ni)₆Sn₅) was conducted based on the measurement of IMCs thickness and ball shear force. Temperature effects were also included in the analysis. The ingredients of IMC remain un-change if the working temperature is below 400 ^OC. Diffusion rate of interfacial controlled reaction was found to be depended on the annealing temperature. The IMC layer thickness decreased as the ramp-up rate of reflow temperature was increased for all cases studies. Preliminary results demonstrated that the measured ball shear force slightly changed for all different IMC thicknesses.

You might also be interested in these eBooks

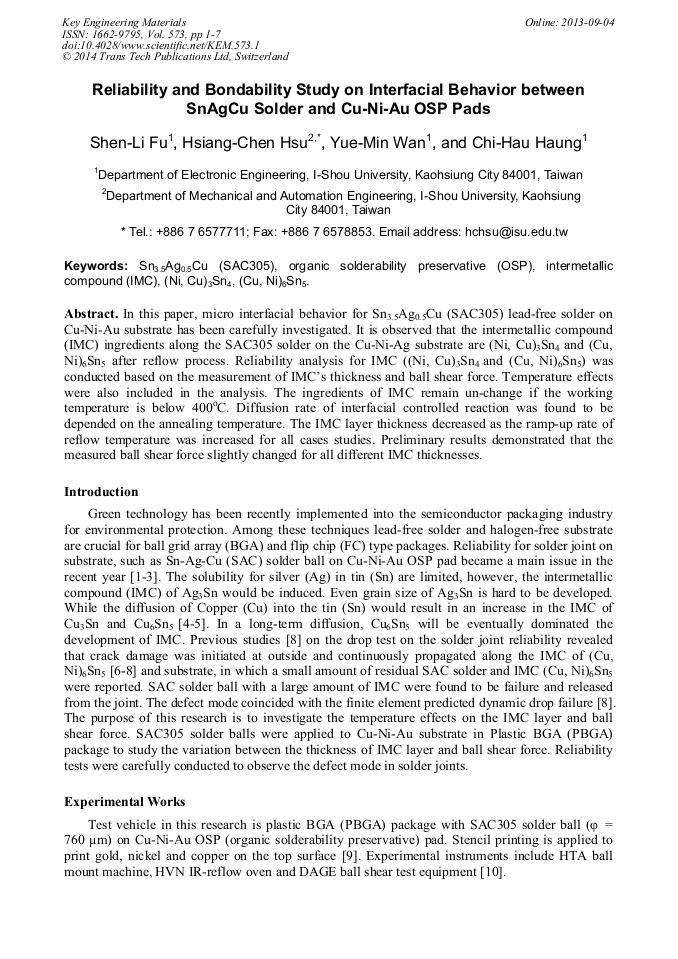

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 573)

Pages:

1-7

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.573.1

Citation:

Cite this paper

Online since:

September 2013

Authors:

Shen Li Fu, Hsiang Chen Hsu, Yue Min Wan, Chi Hau Haung

Keywords:

(Cu, Ni)₆Sn₅, (Ni, Cu)₃Sn₄, Intermetallic Compound (IMC), Organic Solderability Preservative (OSP), Sn3.5Ag0.5Cu (SAC305)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A. Sebaoun, D. Vincent, and D. Treheux, Materials Science and Technology, 3 (1987) 241-248.

Google Scholar

[2] C.M. Liu, C.E. Ho, W.T. Chen, and C.R. Kao, Journal of Electronic Materials, 30 (2001) 1152-1156.

Google Scholar

[3] J.Y. Park, C.W. Yang, J.S. Ha, C.U. Kim, E.J. Kwon, S.B. Jung, and C.S. Kang, Journal of Electronic Materials, 30(2001) 1165-1170.

Google Scholar

[4] T.Y. Lee, W.J. Choi, K.N. Tu, J.W. Jang, S.M. Kuo, J.K. Lin, D.R. Frear, K. Zeng and J.K. Kivilahti, Journal Material Research, 17 (2002) 291-301.

Google Scholar

[5] M. Lebbai, J.K. Kim, W. K. Szeto, M.M.F. Yuen and P. Tong, Journal of Electronic Materials, 32 (2003) 558-563.

Google Scholar

[6] K.S. Kim, J.M. Yang, C.H. Yu, I.O. Jung and H.H. Kim, Journal Alloys Compounds, 379 (2004) 314-318.

Google Scholar

[7] P.C. Shih and K.L. Lin, Journal Alloys Compounds, 422 (2006) 153-163.

Google Scholar

[8] H.C. Hsu, Y.C. Hsu, H.Y. Lee, C.L. Yeh, Y.S. Lai, S.L. Fu, 8th International Conference on Electronics Materials and Packaging (EMAP), Hong Kong, 2006.

Google Scholar

[9] H.C. Hsu, Y.M. Wan, C.H. Huang and S.L. Fu, 6th International Microsystem Packaging, Assembly, Circuit Technology conference (IMPACT), Taipei, Taiwan, 2011.

Google Scholar

[10] T.B. Massalski, Binary Alloy Phase Diagrams, Volume 2, ASM, Metals Park, Ohio, USA, 2010.

Google Scholar
