Research on the Melting Temperature of CaO-SiO2-B2O3 Ternary Slag Systems

Li Li Yang; Hong Ming Wang; Xiang Zhu; Gui Rong Li

doi:10.4028/www.scientific.net/KEM.575-576.370

Paper Titles

Research on Temperature Effect of Autogenous Deformation and Mechanical Properties of HPC
p.352

Study on Producing Sand-Lime Bricks with Iron Ore Tailings and Phosphogypsum and other Solid Wastes
p.357

Study on Preparation and Properties of Foam Glazed Hollow Bead Thermal Insulation Mortar
p.361

The Research and Development of High Strength Spring Steel with Long Service Life
p.365

Research on the Melting Temperature of CaO-SiO₂-B₂O₃ Ternary Slag Systems
p.370

Microstructure and Hardness of 7055 Aluminum Alloy Processed by Circular Cryogenic-Aging Treatment
p.374

Thermodynamic Condition and Behavior of Precipitates in Al₂O_3p/7055 Composites with Cryogenic Treatment
p.378

Compare the Fluxing Effect of Boron Sludge and CaF₂ on CaO-Based Steelmaking Slag
p.382

Nanocrystalline Microstructure in AZ91 Magnesium Alloy Prepared with Cryogenic Treatment
p.386

HomeKey Engineering MaterialsKey Engineering Materials Vols. 575-576Research on the Melting Temperature of...

Research on the Melting Temperature of CaO-SiO₂-B₂O₃ Ternary Slag Systems

Abstract:

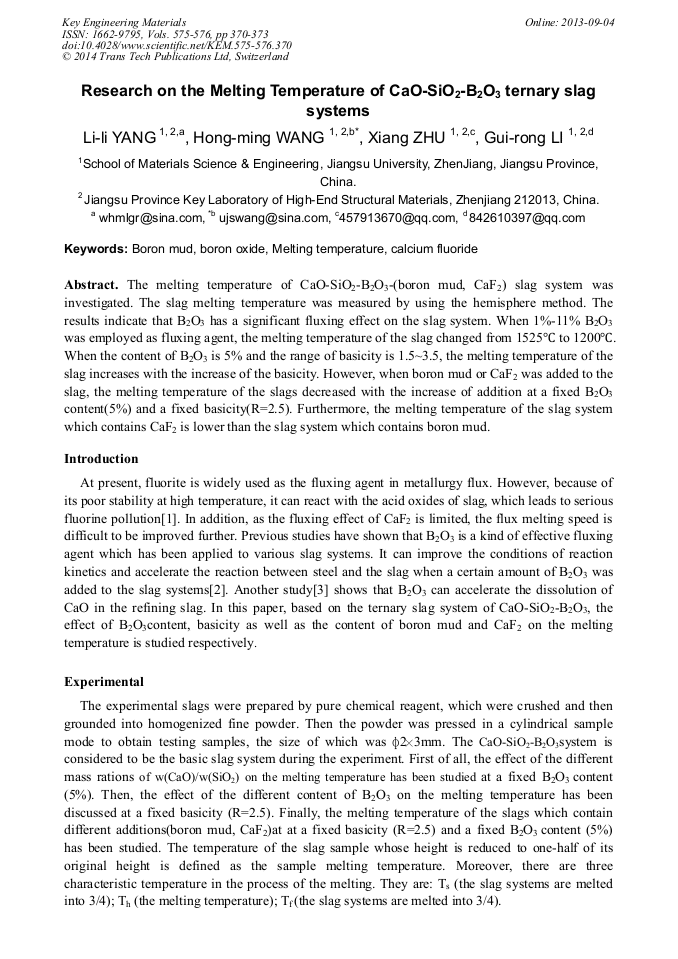

The melting temperature of CaO-SiO₂-B₂O₃-(boron mud, CaF₂) slag system was investigated. The slag melting temperature was measured by using the hemisphere method. The results indicate that B₂O₃ has a significant fluxing effect on the slag system. When 1%-11% B₂O₃ was employed as fluxing agent, the melting temperature of the slag changed from 1525°C to 1200°C. When the content of B₂O₃ is 5% and the range of basicity is 1.5~3.5, the melting temperature of the slag increases with the increase of the basicity. However, when boron mud or CaF₂ was added to the slag, the melting temperature of the slags decreased with the increase of addition at a fixed B₂O₃ content (5%) and a fixed basicity (R=2.5). Furthermore, the melting temperature of the slag system which contains CaF₂ is lower than the slag system which contains boron mud.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 575-576)

Pages:

370-373

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.575-576.370

Citation:

Cite this paper

Online since:

September 2013

Authors:

Li Li Yang, Hong Ming Wang, Xiang Zhu, Gui Rong Li

Keywords:

Boron Mud, Boron Oxide, Calcium Fluoride, Melting Temperature

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Hideaki S, Ryo I. Dissolution Behavior and Stabilization of Fluorine in Secondary Refining Slag. ISIJ Internation, 2002, 42(8): 921.

DOI: 10.2355/isijinternational.42.921

Google Scholar

[2] Yu Xuebin, Shi Qilong, Zhai Rongcan, Cheng liang and Luan Qichuan. Influence of B2O3 on Melting Characteristics of CaO-Al2O3-SiO2-MgO-CaF2 Pentary Slag Series. Special Steel，2006, 27(4)：5.

Google Scholar

[3] Tasuku Hamano, Fumitaka Tsukihashi. The effect of B2O3 on Dephosphorization of Melton Steel by FeOx-CaO-MgOstad-SiO2 Slag at 1873K. ISIJ Inter, 2005, 45 (2): 159.

DOI: 10.2355/isijinternational.45.159

Google Scholar

[4] Dong Jingang, Wang Qian, Chi Jinghao. The Use and Relationship Between Compositions and Properties of the CC Fluses with High Basic Character and High Glassy Property. Steelmaking, 1999, 15(3): 34.

Google Scholar

[5] Li Guirong, Wang Hongming, Li Jingsheng and Yuan Guoyin. A Study on Physical Properties of Free Fluoride Mould Powder Containing B2O3. Special Steel, 2005, 26(3): 12.

Google Scholar
