Generation of Microelectrodes for Micro EDM

Abstract:

In order to fabricate micro holes by EDM process, microelectrodes with high accuracy of form are needed. At present, micro electrodes are generated by grinding and/or on-machine EDM operations and then it is well known that efficient productivity of micro electrodes cannot be realized. Controlling method of thrust force for micro shaft is already proposed. Applying this method, thrust force is controlled to be 0 in turning operation, therefore microelectrodes are generated efficiently. Actually, microelectrode which diameter is less than 0.1 mm can be easily machined in short time. high-precision micro hole machining requires microelectrodes with high cylindricity. In this study, turning method for microelectrodes with high cylindricity is discussed.

You might also be interested in these eBooks

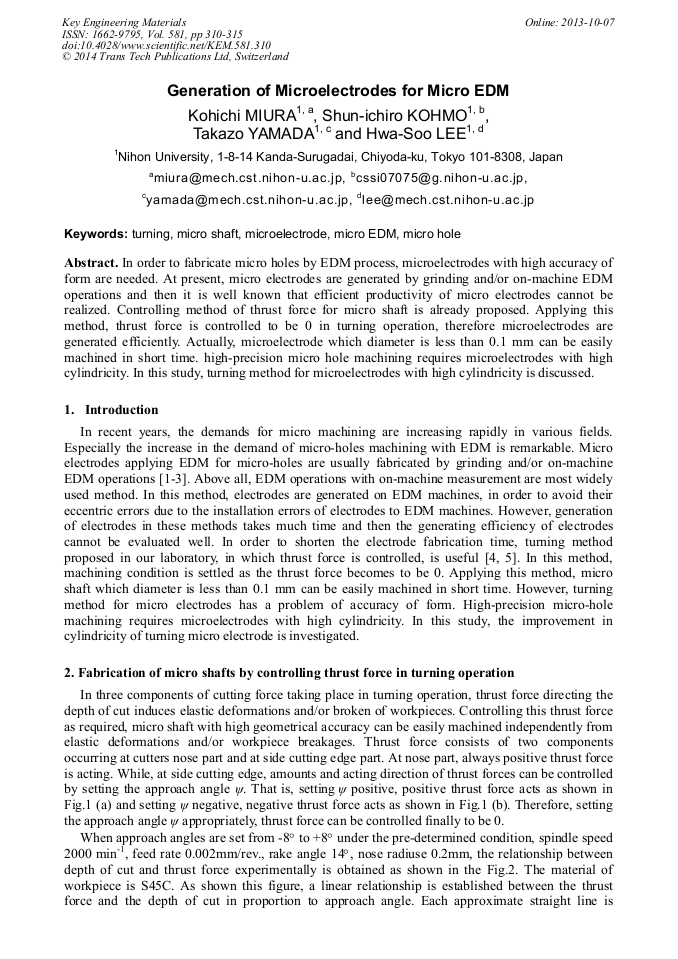

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 581)

Pages:

310-315

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.581.310

Citation:

Cite this paper

Online since:

October 2013

Authors:

Kohichi Miura, Shun Ichiro Kohmo, Takazo Yamada, Hwa Soo Lee

Keywords:

Micro Hole, Micro Shaft, Micro-EDM, Microelectrode, Turning

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T. Masuzawa，M. Fujino，K. Kobayashi，T. Suzuki：Wire Electro Discharge Grinding for Micro-machining，Annals of the CIRP，Vol. 34，No. 1，1985, pp.431-434.

DOI: 10.1016/s0007-8506(07)61805-8

Google Scholar

[2] M. Yamazaki, T. Suzuki, N. Mori and M. Kunieda: EDM of Micro-Rods using Self-Drilled Holes, Journal of the Japan Society of Precision Engineering, Vol. 71, No. 5, (2005), pp.545-548.

DOI: 10.2493/jjspe.74.264

Google Scholar

[3] N. Mohri and T. Tani: Micro-pin Electrodes Formation by Micro-Scanning EDM Process, Annals of the CIRP, Vol. 55, No. 1, (2006), pp.175-178.

DOI: 10.1016/s0007-8506(07)60392-8

Google Scholar

[4] H. Lee, A. Toride, T. Yamada and S. Araki: Study on the generation of micro shafts by turning operation, Journal of JSAT vol. 51, No. 11, 2007, pp.657-661.

Google Scholar

[5] K. Miura，M. Takahashi，Takazo Yamada and Hwa-Soo Lee：Fabrication of micro shapes by EDM with microelectrodes generated in turning operation，Advanced Material Research XIII Vol. 126-128, 2010，pp.375-380.

DOI: 10.4028/www.scientific.net/amr.126-128.375

Google Scholar
