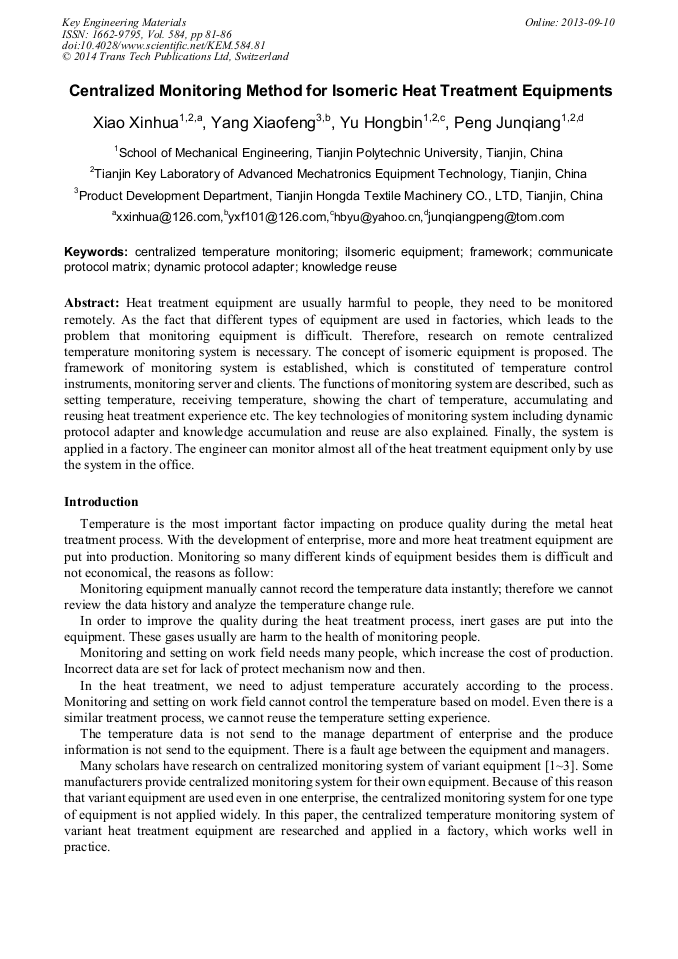

Centralized Monitoring Method for Isomeric Heat Treatment Equipments

Abstract:

Heat treatment equipment are usually harmful to people, they need to be monitored remotely. As the fact that different types of equipment are used in factories, which leads to the problem that monitoring equipment is difficult. Therefore, research on remote centralized temperature monitoring system is necessary. The concept of isomeric equipment is proposed. The framework of monitoring system is established, which is constituted of temperature control instruments, monitoring server and clients. The functions of monitoring system are described, such as setting temperature, receiving temperature, showing the chart of temperature, accumulating and reusing heat treatment experience etc. The key technologies of monitoring system including dynamic protocol adapter and knowledge accumulation and reuse are also explained. Finally, the system is applied in a factory. The engineer can monitor almost all of the heat treatment equipment only by use the system in the office.

• Periodical: Key Engineering Materials (Volume 584)
• Pages: 81-86
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.584.81
• Online since: September 2013
• Authors: Xin Hua Xiao, Xiao Feng Yang, Hong Bin Yu, Jun Qiang Peng
• Keywords: Centralized Temperature Monitoring, Communicate Protocol Matrix, Dynamic Protocol Adapter, Framework, Isomeric Equipment, Knowledge Reuse

References

[1] SHIMADEN CO., LTD, SR90 Series Digital Controller Communication interface instruction manual, Japan, (2001).

[2] ZHANG Hui-xian, ZHAO Yan-feng, Serial Communication Between FP93 Temperature Controller and Computer, Microcomputer Information, 24（2008）130~131，159.

[3] Liang Xiu-xia, Liu yue, Jin Luxiao, etc, On course parameter on-line monitoring system of process control based on RS485 bus, 2009 4th IEEE Conference on Industrial Electronics and Applications, Xi'an, China, 25-27 May (2009).

DOI: 10.1109/iciea.2009.5138340

[4] Fu ZY, Pan P, Zeng M, Data acquisition and supervisory system of DSP based on VB International Conference on Informational Technology and Environmental System Science, Henan Polytechn Univ, Jiaozuo, PEOPLES R CHINA, MAY 15-17, (2008).

[5] Song Dongdong, Ren Zhenhui, Gu Yanxia, etc., Design and implement of an intelligent coal mine monitoring system 8th International Conference on Electronic Measurement & Instruments. ICEMI 200,. Xi'an, China, 16-18 August (2007).

DOI: 10.1109/icemi.2007.4351275

[6] Li Donaming, Liu Yongfu, A study on intelligent greenhouse temperature measurement system based on RS485BUS International Conference on Agriculture Engineering, Baoding, CHINA, OCT 20-22, (2007).
