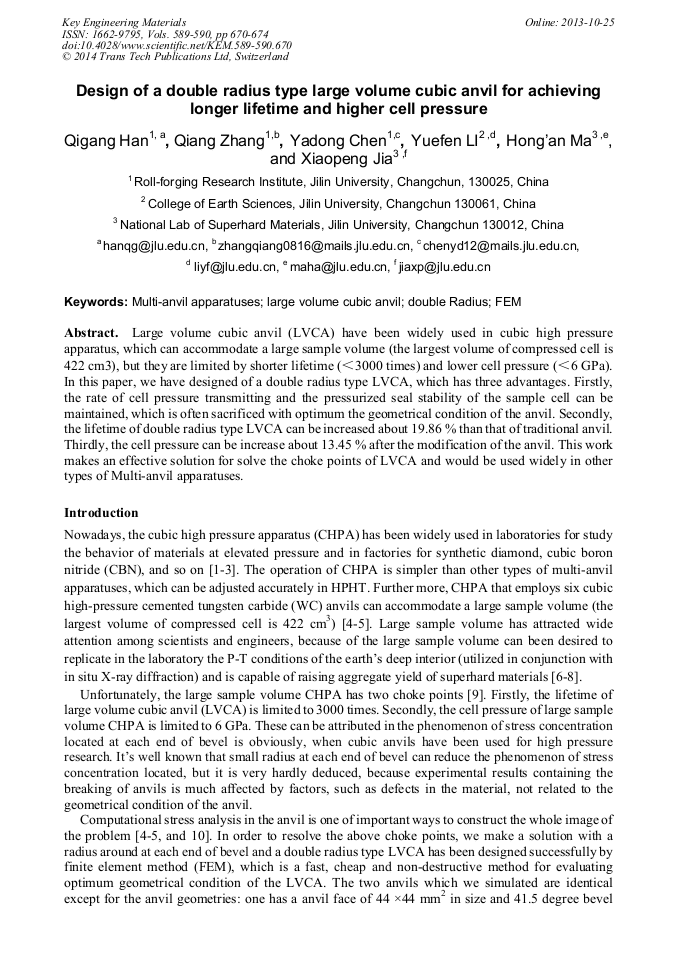

Design of a Double Radius Type Large Volume Cubic Anvil for Achieving Longer Lifetime and Higher Cell Pressure

Abstract:

Large volume cubic anvil (LVCA) have been widely used in cubic high pressure apparatus, which can accommodate a large sample volume (the largest volume of compressed cell is 422 cm3), but they are limited by shorter lifetime (£143000 times) and lower cell pressure (£146 GPa). In this paper, we have designed of a double radius type LVCA, which has three advantages. Firstly, the rate of cell pressure transmitting and the pressurized seal stability of the sample cell can be maintained, which is often sacrificed with optimum the geometrical condition of the anvil. Secondly, the lifetime of double radius type LVCA can be increased about 19.86 % than that of traditional anvil. Thirdly, the cell pressure can be increase about 13.45 % after the modification of the anvil. This work makes an effective solution for solve the choke points of LVCA and would be used widely in other types of Multi-anvil apparatuses.

• Periodical: Key Engineering Materials (Volumes 589-590)
• Pages: 670-674
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.589-590.670
• Online since: October 2013
• Authors: Qi Gang Han, Qiang Zhang, Ya Dong Chen, Yue Fen Li, Hong An Ma, Xiao Peng Jia
• Keywords: Double Radius, Finite Element Method (FEM), Large Volume Cubic Anvil, Multi-Anvil Apparatuses

References

[1] Han Q G, Liu B, Hu M H, Li Z C, Jia X P, Li M Z, Ma H A, Li S S, Xiao H Y, and Li Y: Crystal Growth Design Vol. 11(2011), p.1000.

[2] Guo W, Jia X, Guo W L, Xu H W, Shang J, Ma H A: Diamond and Related Materials Vol. 19 (2010), p.1296.

[3] Rong X Z, Tsurumi Takaaki, Fukunaga Osamu, Yano Toyohiko: Diamond and Related Materials Vol. 1 (2002), p.280.

[4] Han Q G, Li M Z, Jia X P, Ma H A: Review of Scientific Instruments Vol. 81 (2010), p.123901.

[5] Han Q G, Jia X P, Qin J M, Li R, Zhang C, Li Z C, Tian Y and Ma H A: High Pressure Research Vol. 29 (2009), p.449.

[6] Qin J M, Yao B, Yan Y, Zhang J Y, Jia X P, Zhang Z Z, Li B H, Shan C X, and Shen D Z: Appl. Phys. Lett. Vol. 95(2009), p.022101.

[7] Su T C, Jia X P, Ma H A, Yu F R, Tian Y J, Zuo G H, Zheng Y J, Jiang Y P, Dong N, Deng L, Qin B K, and Zheng S Z: J. Appl. Phys. Vol. 105 (2009), p.073713.

DOI: 10.1063/1.3106102

[8] Li X L, Ma HA, Zuo G H, Liu W Q, Zheng Y J, Li J G, Li S S and Jia X: Scripta Materialia Vol. 56 (2007) , p.1015.

[9] Han Q G, Ma H A, Huang G F, Zhang C, Li Z C, Jia X P: Review of Scientific Instruments Vol. 80 (2009), p.096107.

[10] Han Q G, Li M Z, Jia X P, Ma H A, Li Y F: Diamond & Related Materials Vol. 20 (2011) p.969.

[11] Li R, Ma H A, Han Q G, Liang Z Z, Yin B H, Liu W Q and Jia X: High Pressure Research Vol. 27 (2007), p.249.

[12] Jiang C Y, Zhang H J, and Li Z Z, Elasticity theory and finite element method, (Science Publications, China 2006).

[13] Getting Ivan C., Chen Ganglin, and Brown Jennifer A.: Pure and Applied Geophysics Vol. 141 (1993).

[14] Levitas Valery I. and Zarechny Oleg M.: Appl. Phys. Lett. Vol. 91 (2007), p.141919.
