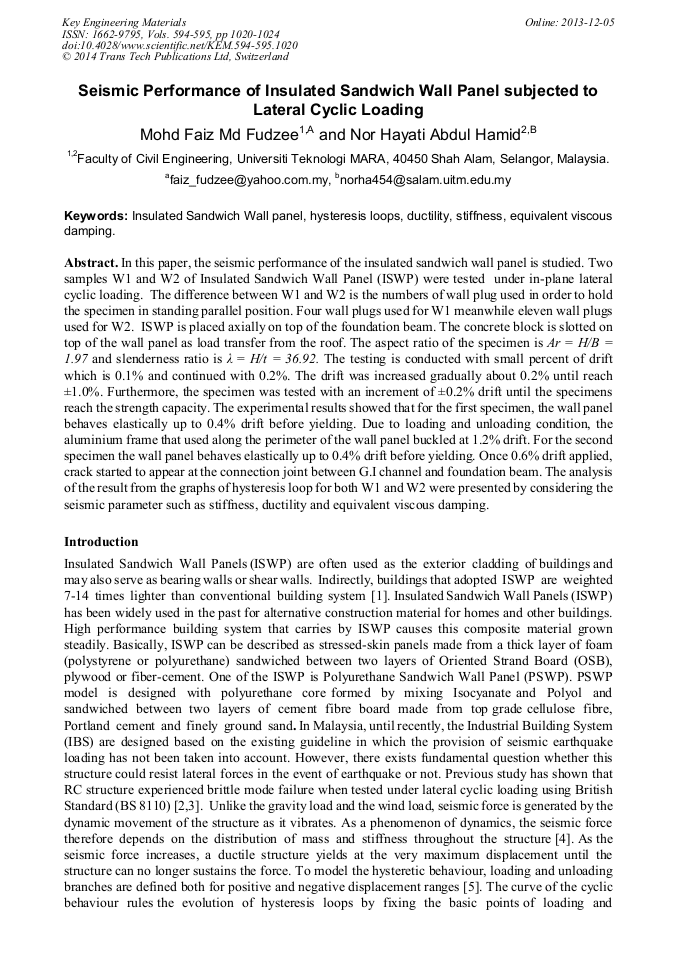

Seismic Performance of Insulated Sandwich Wall Panel Subjected to Lateral Cyclic Loading

Abstract:

In this paper, the seismic performance of the insulated sandwich wall panel is studied. Two samples W1 and W2 of Insulated Sandwich Wall Panel (ISWP) were tested under in-plane lateral cyclic loading. The difference between W1 and W2 is the numbers of wall plug used in order to hold the specimen in standing parallel position. Four wall plugs used for W1 meanwhile eleven wall plugs used for W2. ISWP is placed axially on top of the foundation beam. The concrete block is slotted on top of the wall panel as load transfer from the roof. The aspect ratio of the specimen is Ar = H/B = 1.97 and slenderness ratio is λ = H/t = 36.92. The testing is conducted with small percent of drift which is 0.1% and continued with 0.2%. The drift was increased gradually about 0.2% until reach ±1.0%. Furthermore, the specimen was tested with an increment of ±0.2% drift until the specimens reach the strength capacity. The experimental results showed that for the first specimen, the wall panel behaves elastically up to 0.4% drift before yielding. Due to loading and unloading condition, the aluminium frame that used along the perimeter of the wall panel buckled at 1.2% drift. For the second specimen the wall panel behaves elastically up to 0.4% drift before yielding. Once 0.6% drift applied, crack started to appear at the connection joint between G.I channel and foundation beam. The analysis of the result from the graphs of hysteresis loop for both W1 and W2 were presented by considering the seismic parameter such as stiffness, ductility and equivalent viscous damping.

• Periodical: Key Engineering Materials (Volumes 594-595)
• Pages: 1020-1024
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.594-595.1020
• Online since: December 2013
• Authors: Mohd Faiz Md Fudzee, Nor Hayati Hamid
• Keywords: Ductility, Equivalent Viscous Damping, Hysteresis Loop, Insulated Sandwich Wall Panel, Stiffness

References

[1] Sharaf T and Fam A, (2010), Flexural performance of sandwich panels comprising polyurethane core and GFRP skins and ribs of various configurations. J Compos Struc 92, 2927-2935.

DOI: 10.1016/j.compstruct.2010.05.004

[2] Hamid, N.H. (2006), Seismic Damage Avoidance Design of Warehouse Building Construction using Precast Hollow Core Wall Panel, Department of Civil Engineering, University of Canterbury, New Zealand.

[3] Hamid, N.H. (2008), Seismic Performance of Monolithic Wall Panel Subjected to Quasi-Static Lateral Cyclic Loading, Journal – The Institute of Engineers, Malaysia, Vol 69, No. 3, 10-17.

[4] Clarke R, (2003), Introduction to IBC seismic forces. IBC 2003 presentation.

[5] De Matteis G. and Landolfo R, (1998), Structural behaviour of sandwich panel shear walls: An experimental analysis. Materials and Structures 32, 331-341.

DOI: 10.1007/bf02479624
