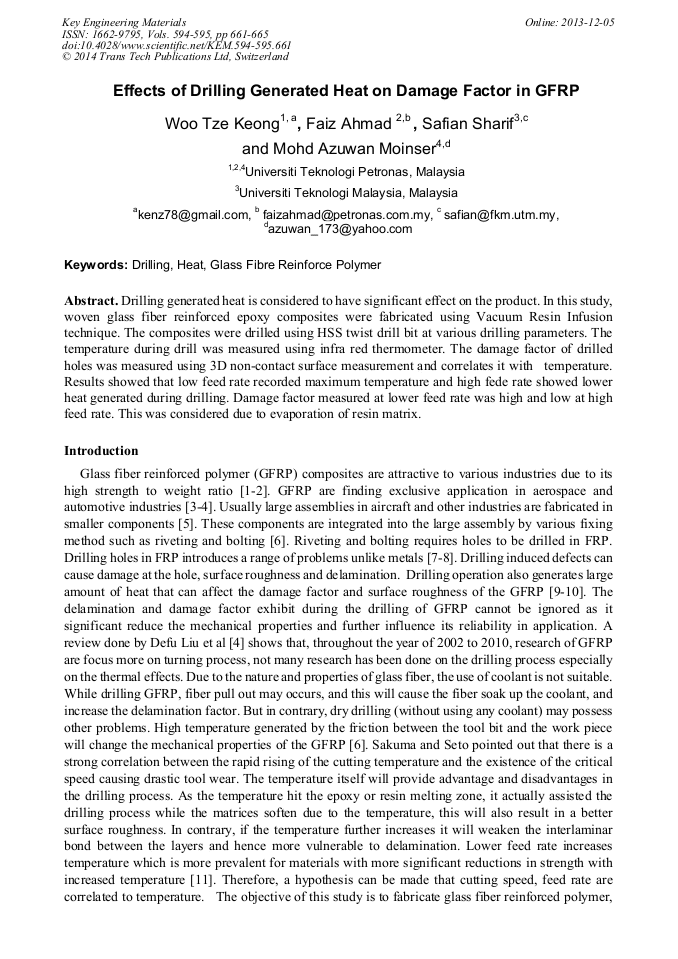

Effects of Drilling Generated Heat on Damage Factor in GFRP

Abstract:

Drilling generated heat is considered to have significant effect on the product. In this study, woven glass fiber reinforced epoxy composites were fabricated using Vacuum Resin Infusion technique. The composites were drilled using HSS twist drill bit at various drilling parameters. The temperature during drill was measured using infra red thermometer. The damage factor of drilled holes was measured using 3D non-contact surface measurement and correlates it with temperature. Results showed that low feed rate recorded maximum temperature and high fede rate showed lower heat generated during drilling. Damage factor measured at lower feed rate was high and low at high feed rate. This was considered due to evaporation of resin matrix.

• Periodical: Key Engineering Materials (Volumes 594-595)
• Pages: 661-665
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.594-595.661
• Online since: December 2013
• Authors: Tze Keong Woo, Faiz Ahmad, Safian Sharif, Mohd Azuwan Maoinser
• Keywords: Drilling, Glass Fibre Reinforce Polymer, Heat

References

[1] Santhanakrihnan, G. Krishnamoorhy, R. Malhotra, S.K., Machinability characteristics of fibre reinforced plastics composites. J. Mech. Work. Technol. 17, (1988) 195-204.

[2] Lincoln Cardoso Brandao, Reginaldo Teixeira Coelho, Carlos Henrique Laura, Contribution to dynamic characteristics of the cutting temperature in the drilling process considering one dimension heat flow. Applied thermal engineering 31 (2011).

DOI: 10.1016/j.applthermaleng.2011.07.024

[3] I. Lazoglu, Y. Altintas, Prediction of tool and chip temperature in continuous and interrupted machining, International Journal of Machine Tools and Manufacture 42 (9) ( 2002) 1011-1022.

DOI: 10.1016/s0890-6955(02)00039-1

[4] Defu Liu, YongJun Tang, W.L. Cong. A review of mechanical drilling for composite laminates. Composite Structures (2011).

[5] Kalobaran Das, S M Kamaruzzaman, Tapas Ranjan Middya, Siddhartha Datta. Study of variation of thermal diffusity of advanced composite materials of E-glass fiber reinforced plastic (GFRP) in temperature range 5-300K. Bulletin Material Science, Vol 32, no 1 (2009).

DOI: 10.1007/s12034-009-0013-0

[6] J . Paulo Davim, Pedro Reis, C. Conceicao Antonio. Experimental study of drilling glass fiber reinforced plastics (GFRP) manufactured by hand lay-up. Composite Science and Technology 64 (2004) 289-297.

DOI: 10.1016/s0266-3538(03)00253-7

[7] K. Palanikumar, L. Karunamoorthy, R. Karthikeyan. Assessment of factors influencing surface roughness on the machining of glass fiber-reinforced polymer composites. Materials and Design 27 (2006) 862-871.

DOI: 10.1016/j.matdes.2005.03.011

[8] Abdolkarim Abbasi, Paul J. Hogg. Temperature and environmental effects on glass fiber rebar : modulus, strength and interfacial bond strength with concrete. Composites : part B (2005) 394-404.

DOI: 10.1016/j.compositesb.2005.01.006

[9] A.M. Abrao, P.E. Faria, J.C. Campos Rubio, P. Reis, J. Paulo Davim. Drilling of fiber reinforced plastics : a review. Journal of Materials Processing Technology 186 (2007) 1-7.

DOI: 10.1016/j.jmatprotec.2006.11.146

[10] N.S. Mohan, S.M. Kulkarni, A. Ramachandra. Delamination analysis in drilling process of glass fiber reinforced plastic (GFRP) composite materials. Journal of Materials Processing Technology 186 (2007) 265-271.

DOI: 10.1016/j.jmatprotec.2006.12.043

[11] K. Kadirgama, M.M. Noor, M.M. Rahman, W.S.W. Harun, C.H.C. Haron, Finite Element Analysis and Statistical Method to DetermineTemperature Distribution on Cutting Tool in End-Milling, European Journal of Scientific Research, ISSN 1450-216X Vol. 30 No. 3 (2009).

[12] Stuart Lee, Dictionary of Composite Materials Technology, CRC Press LLC (2002).

[13] M.R.M. Rejab, C.W. Theng, M.M. Rahman, M.M. Noor and A.N.M. Rose, An Investigation into the Effects of Fibre Volume Fraction on GFRP Plate, Proceedings of Malaysian Technical Universities Conference on Engineering and Technology (2008).
