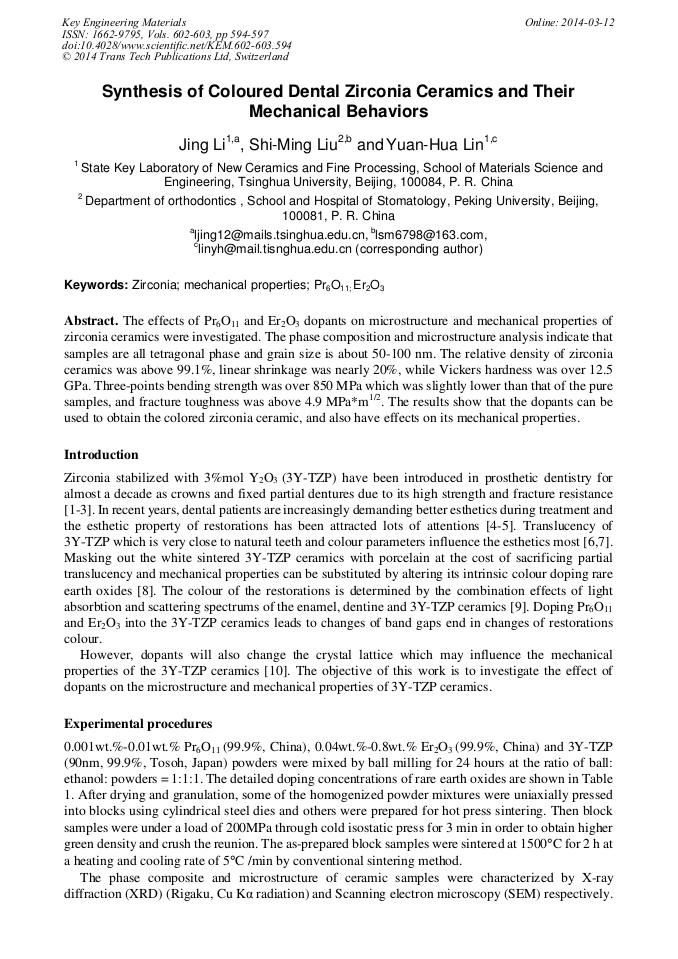

Synthesis of Coloured Dental Zirconia Ceramics and their Mechanical Behaviors

Abstract:

The effects of Pr₆O₁₁ and Er₂O₃ dopants on microstructure and mechanical properties of zirconia ceramics were investigated. The phase composition and microstructure analysis indicate that samples are all tetragonal phase and grain size is about 50-100 nm. The relative density of zirconia ceramics was above 99.1%, linear shrinkage was nearly 20%, while Vickers hardness was over 12.5 GPa. Three-points bending strength was over 850 MPa which was slightly lower than that of the pure samples, and fracture toughness was above 4.9 MPa*m^1/2. The results show that the dopants can be used to obtain the colored zirconia ceramic, and also have effects on its mechanical properties.

• Periodical: Key Engineering Materials (Volumes 602-603)
• Pages: 594-597
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.602-603.594
• Online since: March 2014
• Authors: Jing Li, Shi Ming Liu, Yuan Hua Lin*
• Keywords: Er₂O₃, Mechanical Property, Pr₆O₁₁, Zirconia

References

[1] H.J. Conrad, W.J. Seong, I.J. Pesun. Current ceramic materials and systems with clinical recommendations: a systematic review. Journal of Prosthetic Dentistry 2007, 98: 389-404.

DOI: 10.1016/s0022-3913(07)60124-3

[2] J. Tinschert, G. Natt, W. Mautsch et al. Fracture resistance of lithium disilicate-, alumina-, and zirconia-based three-unite fixed partial denture: a laboratory study. International Journal of Prosthodontics 2001, 14: 231-238.

[3] Y.M. Chen, R.J. Smales, K.H. Yip et al. Translucency and biaxial flexural strength of four ceramic core materials. Dental Materials 2008, 24: 1506-1511.

DOI: 10.1016/j.dental.2008.03.010

[4] F.N. Hattab, M.A. Qudeimat, H.S. AL-Rimawl. Dental diacoloration: an review. Journal of Esthetic Dentistry 1999, 11: 291-310.

[5] S.M. Mayekar. Shades of color illusion or reality? Dental Clinics North America 2001, 45: 155-172.

DOI: 10.1016/s0011-8532(22)00474-8

[6] D.A. Terry, W. Gelle, O. Tric et al. Anatomical form defines color: function, form and aesthetics. Practical Procedure Aesthetic Dentistry 2002, 14: 59-67.

[7] P.K. Vallittu, A.S.J. Vallittu, V.P. Lassila. Dental aesthetics-a survey of attitudes in different groups of patients. Journal of Dentistry 1996, 24: 335-338.

DOI: 10.1016/0300-5712(95)00079-8

[8] D.P. Wang, W.H. Huang. Effect of colouring agent Pr6O11 addition on properties of zirconia ceramics. Journal of Building Materials 1999, 2: 329-333.

[9] J.J. Ten Bosch, J.C. Coops. Tooth color and reflectance as related to light scattering and enamel hardness. Journal of Dental Research 1995, 74: 374-380.

DOI: 10.1177/00220345950740011401

[10] D.Y. Le, D.J. Kim, Y.S. Song. Chromaticity, hydrothermal stability, and mechanical properties of t-ZrO2/Al2O3 composites doped with yttrium, niobium, and ferric oxides. Materials Science and Engineering A 2000, 289: 1-7.

DOI: 10.1016/s0921-5093(00)00937-0

[11] R.C. Garvie, R.H. Hannink, R.T. Pascoe. Ceramic steel. Nature 1975, 258: 704-703.

DOI: 10.1038/258703a0

[12] W.D. Callister, D.G. Rethwisch. Fundamental of materials science and engineering: An integrated approach, John Wiley and Sons, California, (2007).
