Nanoindentation and AFM Studies on Tungsten Carbide Crystals in WC-Co Hardmetal

Abstract:

The room temperature elastic and plastic properties of the WC grains of WC-9%Co hardmetal were investigated by nanoindentation and atomic force microscope (AFM). Two easily distinguishable crystallographic planes (using EBSD analyses) were investigated, namely the basal and prismatic planes, on which nanoindentation tests were performed with different applied loads from 1 mN to 50 mN to determine the hardness and reduced-modulus, respectively. The results deriving from nanoindentation show significantly higher indentation hardness on basal planes (H_IT=28.9±0.1 GPa) than on prismatic ones (H_IT=21.9±0.1 GPa) over 10 mN load. For loads below that the results were inconsistent. The corresponding indents were checked by AFM and correct values of hardness were found. The discrepancies indicate the inaccuracy of the built-in evaluation procedure (Oliver-Pharr method) in this low load, or more precisely in the low indentation depth range. It is pointed out that below 50 nm contact depth the applied built-in contact area-contact depth function is not appropriate and a new correct contact area-contact depth function is proposed, thus the resulting recalculated hardness values are in good agreement with the AFM measurements.

You might also be interested in these eBooks

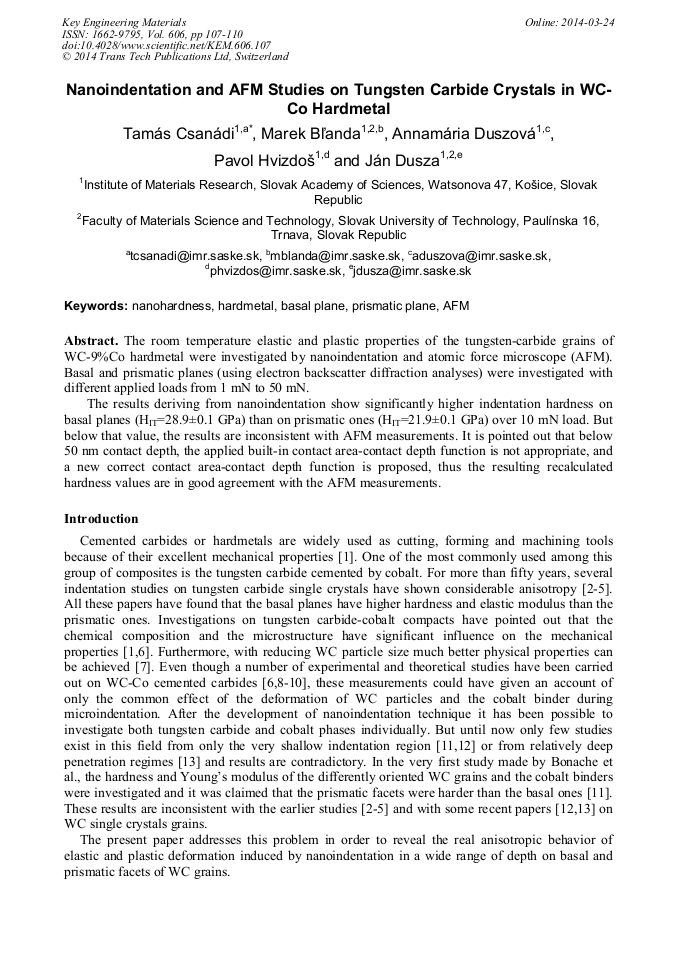

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 606)

Pages:

107-110

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.606.107

Citation:

Cite this paper

Online since:

March 2014

Authors:

Tamás Csanádi*, Marek Bľanda, Annamária Duszová, Pavol Hvizdoš, Ján Dusza

Keywords:

AFM, Basal Plane, Hardmetal, Nanohardness, Prismatic Plane

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] H.E. Exner, Physical and chemical nature of cemented carbides, Int. Met. Rev. 4 (1979) 149-173.

Google Scholar

[2] T. Takahashi, E.J. Friese, Determination of the slip systems in single crystals of tungsten monocarbide, Phil. Mag. 12 (1965) 1-8.

Google Scholar

[3] D.N. French, D.A. Thomas, Hardness anisotropy and slip in WC crystals, Trans. Metall. Soc. AIME 233 (1965) 950-952.

Google Scholar

[4] M.K. Hibbs, R. Sinclair, Room-temperature deformation mechanisms and the defect structure of tungsten carbide, Acta Metall. 29 (1981) 1645-1654.

DOI: 10.1016/0001-6160(81)90047-x

Google Scholar

[5] S.B. Luyckx, F.R.N. Nabarro, S-W Wai, M.N. James, The anisotropic work hardening of WC crystals, Acta Metall. 40 (1992) 1623-1627.

DOI: 10.1016/0956-7151(92)90104-m

Google Scholar

[6] K.V. Sarin, T. Johannesson, On the deformation of WC-Co cemented carbides, Metal Sci. 9 (1975) 472-476.

DOI: 10.1179/030634575790444531

Google Scholar

[7] H.C. Kim, I.J. Shon, J.K. Yoon, J.M. Don, Consolidation of ultra fine WC and WC-Co hard materials by pulsed current activated sintering and its mechanical properties, Int. J. Refract. Met. Hard Mater. 25 (2007) 46-52.

DOI: 10.1016/j.ijrmhm.2005.11.004

Google Scholar

[8] F.R.N. Nabarro, S.B. Luyckx, The theory of the strength of tungsten carbide-cobalt compacts, Trans. J. Int. Met. 9 (1968) 610-615.

Google Scholar

[9] B. Roebuck, E.A. Almond, Deformation and fracture processes and the physical metallurgy of WC-Co hardmetals, Int. Mater. Rev. 33 (1988) 90-110.

DOI: 10.1179/imr.1988.33.1.90

Google Scholar

[10] D.J. Rowcliffe, V. Jayaram, M.K. Hibbs, R. Sinclair, Compressive deformation and fracture in WC materials, Mater. Sci. Eng. A 105-106 (1988) 299-303.

DOI: 10.1016/0025-5416(88)90710-0

Google Scholar

[11] V. Bonache, E. Rayón, M.D. Salvador, D. Busquets, Nanoindentation study of WC-12Co hardmetals obtained from nanocrystalline powders: Evaluation of hardness and modulus on individual phases, Mater. Sci. Eng. A 527 (2010) 2935-2941.

DOI: 10.1016/j.msea.2010.01.026

Google Scholar

[12] A. Duszová, R. Halgas, M. Bľanda, P. Hvizdoš, F. Lofaj, J. Dusza, J. Morgiel, Nanoindentation of WC-Co hardmetals, J. Eur. Ceram. Soc. 33 (2013) 2227-2232.

DOI: 10.1016/j.jeurceramsoc.2012.12.018

Google Scholar

[13] N. Cuadrado, D. Casellas, L. Llanes, I. Gonzalez, J. Caro, Effect of crystal anisotropy on the mechanical properties of WC embedded in WC-Co cemented carbides, Proceedings Euro PM2011-Hard materials, Vol. 2. (2011).

Google Scholar

[14] W.C. Oliver, G.M. Pharr, An improved technique to determine hardness and elastic modulus using load and displacement sensing indentation experiments, J. Mater. Res. 7 (1992) 1564-1583.

DOI: 10.1557/jmr.1992.1564

Google Scholar
