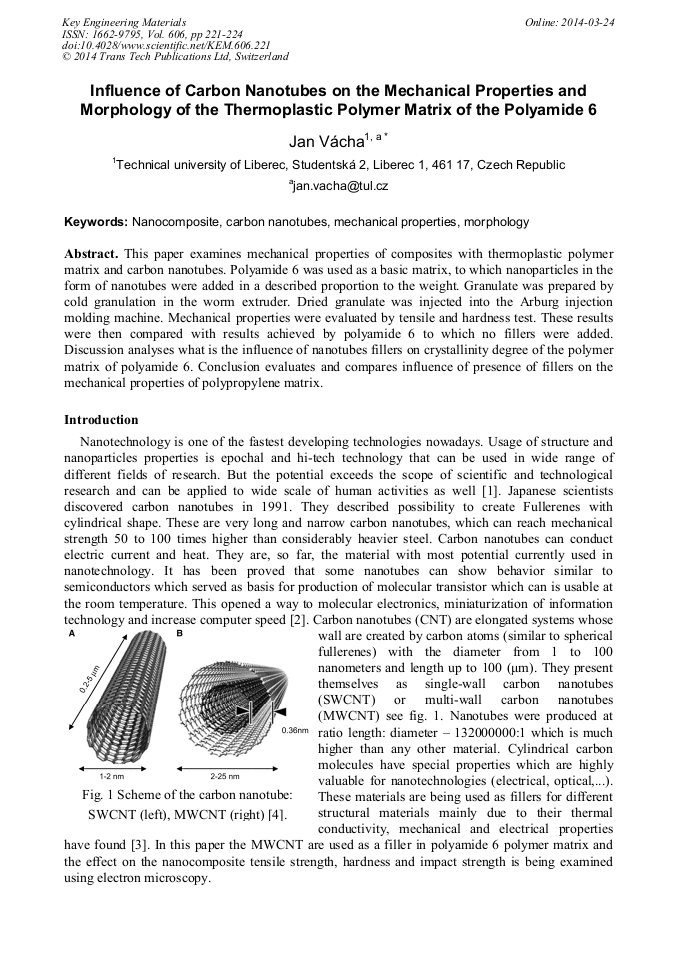

Influence of Carbon Nanotubes on the Mechanical Properties and Morphology of the Thermoplastic Polymer Matrix of the Polyamide 6

Abstract:

This paper examines mechanical properties of composites with thermoplastic polymer matrix and carbon nanotubes. Polyamide 6 was used as a basic matrix, to which nanoparticles in the form of nanotubes were added in a described proportion to the weight. Granulate was prepared by cold granulation in the worm extruder. Dried granulate was injected into the Arburg injection molding machine. Mechanical properties were evaluated by tensile and hardness test. These results were then compared with results achieved by polyamide 6 to which no fillers were added. Discussion analyses what is the influence of nanotubes fillers on crystallinity degree of the polymer matrix of polyamide 6. Conclusion evaluates and compares influence of presence of fillers on the mechanical properties of polypropylene matrix.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 606)

Pages:

221-224

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.606.221

Citation:

Cite this paper

Online since:

March 2014

Authors:

Jan Vácha*

Keywords:

Carbon Nanotube (CN), Mechanical Property, Morpholoy, Nanocomposite

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] B. Duleba, Uhlíkové nanotrubice- materál pro budoucnost. Košice: transfer inovacií 21/2011, Košice, (2011), pp.192-197.

Google Scholar

[2] R. Kubínek, V. Stránská. Úvod do problematiky nanotechnologií. Kvalitní rozvoj učitelství fyziky, Masarykova univerzita v Brně, (2007).

Google Scholar

[3] X. Wang and coll. Fabrication of Ultralong and Electrically Uniform Single-Walled Carbon Nanotubes on Clean Substrates, Nano Letters 9 (9), Beijing, (2009), pp.128-133.

DOI: 10.1021/nl901260b

Google Scholar

[4] P. Lenfeld and coll., Evaluation of plastication and injection molding influence on the morphology of polyamide with carbon nanotubes. The 28th International conference of polymer processing society (PPS-28), Pattaya, Thailand, (2012), pp.134-138.

Google Scholar

[5] P. Pötschke and coll. A novel strategy to incorporate carbon nanotubes into thermoplastic matrices. Macromolecular rapid communication, Weinheim, (2008), pp.15-20.

DOI: 10.1002/marc.200700637

Google Scholar

[6] K. Prashantha, J. Soulestin. Masterbatch-based multi-walled carbon nanotube filled polypropylene nanocomposites: Assessment of rheological and mechanical properties. Composites science and technology 69, (2009), pp.1756-1763.

DOI: 10.1016/j.compscitech.2008.10.005

Google Scholar

[7] A. Chandra and coll. Effect of injection molding parameters on the electrical conductivity of polycarbonate/carbon nanotube nanocompozites. Antec 2007 Plastics: Annual Technical Conference Proceedings, (2007), pp.351-355.

Google Scholar
