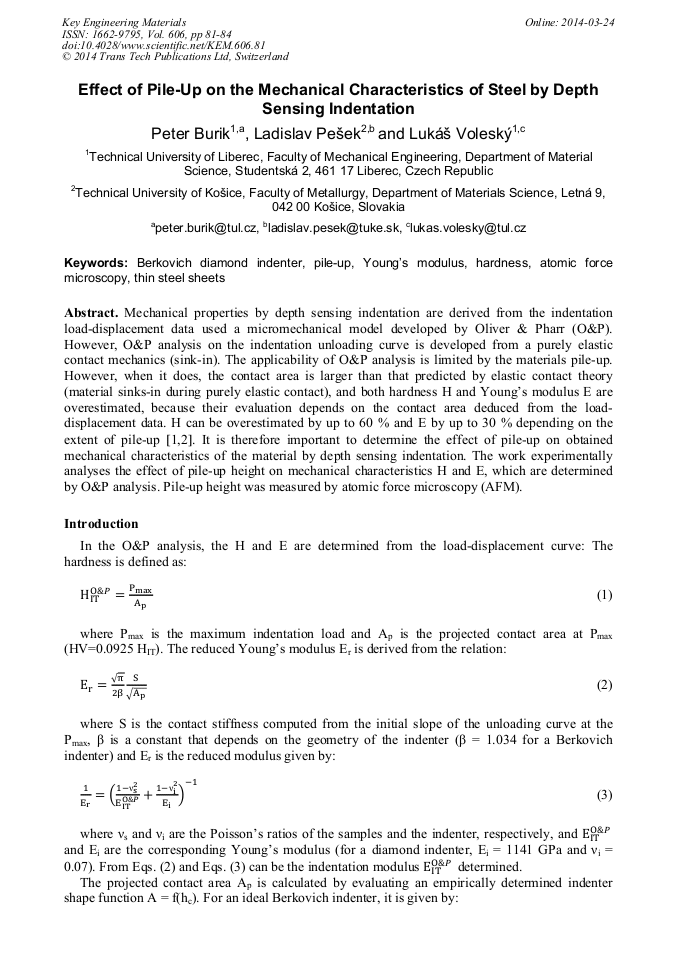

Effect of Pile-Up on the Mechanical Characteristics of Steel by Depth Sensing Indentation

Abstract:

Mechanical properties by depth sensing indentation are derived from the indentation load-displacement data used a micromechanical model developed by Oliver & Pharr (O&P). However, O&P analysis on the indentation unloading curve is developed from a purely elastic contact mechanics (sink-in). The applicability of O&P analysis is limited by the materials pile-up. However, when it does, the contact area is larger than that predicted by elastic contact theory (material sinks-in during purely elastic contact), and both hardness H and Youngs modulus E are overestimated, because their evaluation depends on the contact area deduced from the load-displacement data. H can be overestimated by up to 60 % and E by up to 30 % depending on the extent of pile-up [1,2]. It is therefore important to determine the effect of pile-up on obtained mechanical characteristics of the material by depth sensing indentation. The work experimentally analyses the effect of pile-up height on mechanical characteristics H and E, which are determined by O&P analysis. Pile-up height was measured by atomic force microscopy (AFM).

• Periodical: Key Engineering Materials (Volume 606)
• Pages: 81-84
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.606.81
• Online since: March 2014
• Authors: Peter Burik*, Ladislav Pešek, Lukáš Voleský
• Keywords: Atomic Force Microscopy (AFM), Berkovich Diamond Indenter, Hardness, Pile-Up, Thin Steel Sheets, Young's Modulus

References

[1] L.N. Zhu, B.S. Xu, H.D. Wang, Measurement of mechanical properties of 1045 steel with significant pile-up by sharp indentation, J Mater Sci. 46 (2011) 1083–1086.

DOI: 10.1007/s10853-010-4876-7

[2] J.L. HAY, Instrumented Indentation Testing, ASM Handbook. 8 (2000), Mechanical Testing and Evaluation. 236, 232-244.

[3] X. Zhou, Z. Jiang, H. Wang , R. Yu, Investigation on methods for dealing with pile-up errors in evaluating the mechanical properties of thin metal films at sub-micron scale on hard substrates by nanoindentation technique, Materials Science and Engineering. A 488 (2008).

DOI: 10.1016/j.msea.2008.01.020

[4] Y.H. Lee, U. Baek, Y.L. Kim, S.H. Nahm, On the measurement of pile-up corrected hardness based on the early Hertzian loading analysis, Materials Letters. 61 (2007) 4039–4042.

DOI: 10.1016/j.matlet.2007.01.020

[5] X. Zhou, Z. Jiang, H. Wang ,R. Yu, Investigation on methods for dealing with pile-up errors in evaluating the mechanical properties of thin metal films at sub-micron scale on hard substrates by nanoindentation technique, Materials Science and Engineering. A 488 (2008).

DOI: 10.1016/j.msea.2008.01.020
