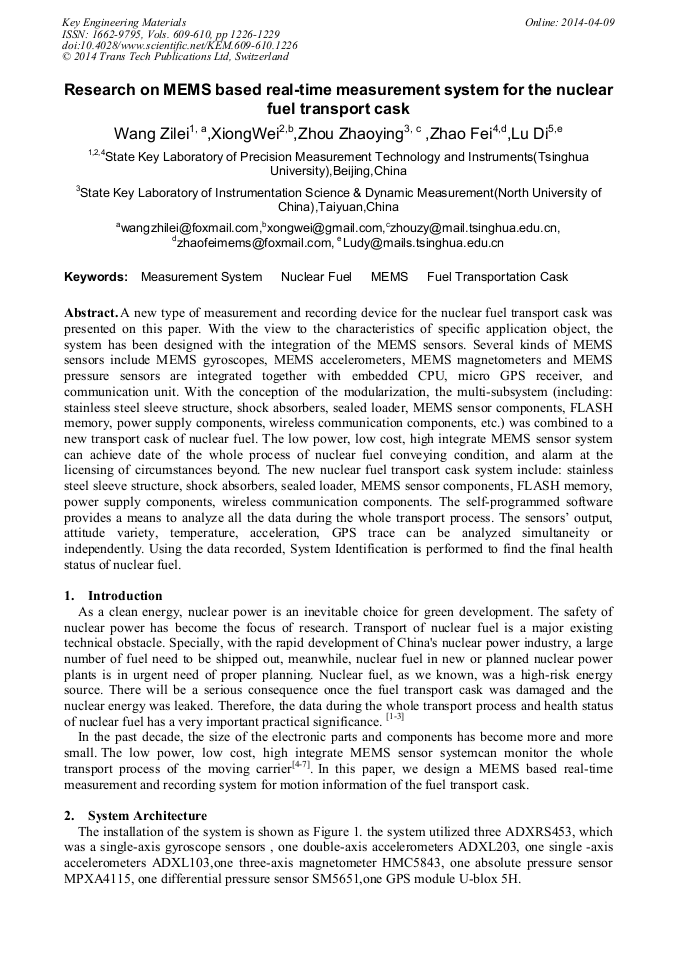

Research on MEMS Based Real-Time Measurement System for the Nuclear Fuel Transport Cask

Abstract:

A new type of measurement and recording device for the nuclear fuel transport cask was presented on this paper. With the view to the characteristics of specific application object, the system has been designed with the integration of the MEMS sensors. Several kinds of MEMS sensors include MEMS gyroscopes, MEMS accelerometers, MEMS magnetometers and MEMS pressure sensors are integrated together with embedded CPU, micro GPS receiver, and communication unit. With the conception of the modularization, the multi-subsystem (including: stainless steel sleeve structure, shock absorbers, sealed loader, MEMS sensor components, FLASH memory, power supply components, wireless communication components, etc.) was combined to a new transport cask of nuclear fuel. The low power, low cost, high integrate MEMS sensor system can achieve date of the whole process of nuclear fuel conveying condition, and alarm at the licensing of circumstances beyond. The new nuclear fuel transport cask system include: stainless steel sleeve structure, shock absorbers, sealed loader, MEMS sensor components, FLASH memory, power supply components, wireless communication components. The self-programmed software provides a means to analyze all the data during the whole transport process. The sensors’ output, attitude variety, temperature, acceleration, GPS trace can be analyzed simultaneity or independently. Using the data recorded, System Identification is performed to find the final health status of nuclear fuel.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 1226-1229
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.1226
• Online since: April 2014
• Authors: Zi Lei Wang*, Wei Xiong, Zhao Ying Zhou, Fei Zhao, Di Lu
• Keywords: Fuel Transportation Cask, Measurement System, MEMS, Nuclear Fuel

References

[1] R. Lo Frano , G. Pugliese , G. Forasassi. Thermal analysis of a spent fuel cask in different transport conditions. Energy, 2010, Vol. 36 (4), pp.2285-2293.

DOI: 10.1016/j.energy.2010.01.041

[2] Eberhard Seifert. Nuclear criticality safety considerations for CASTOR casks with spent fuel of the Rossendorf nuclear devices. [J]. Nuclear Engineering and Design , 1997, Vol. 170 (1), pp.53-58.

DOI: 10.1016/s0029-5493(97)00011-3

[3] Havel R J. Caloric homeostasis and disorders of fuel transport. New England Journal of Medicine, 1972, Vol. 287 (23), pp.1186-92.

DOI: 10.1056/nejm197212072872307

[4] Kumar N S, JANN T. Estimation of attitudes from a low-cost miniaturized inertial platform using Kalman filter-based sensor fusion algorithm. Academy Proceedings in Engineering Sciences, 2004, 29(2): 217-235.

DOI: 10.1007/bf02703733

[5] Gebre E, Demoz E, Gabriel H, et al. Gyro-free quaternion-based attitude determination system suitable for implementation using low cost sensors. Position Location and Navigation Symposium. 2000: 185-192.

DOI: 10.1109/plans.2000.838301

[6] Michael A. Horton, Los Gatos. Dynamic Attitude Measurement Method and Apparatus. United States Patent Application. US6. 647. 352.

[7] Peng.H. M, Chiang.Y. T, Chang F.R. Maximum-likelihood base filtering for attitude determination via GPS carrier phase. Proceedings of the IEEE Position, Location, and Navigation Symposium, San Diego, Canada, 2000. 3: 480-487.

DOI: 10.1109/plans.2000.838342
