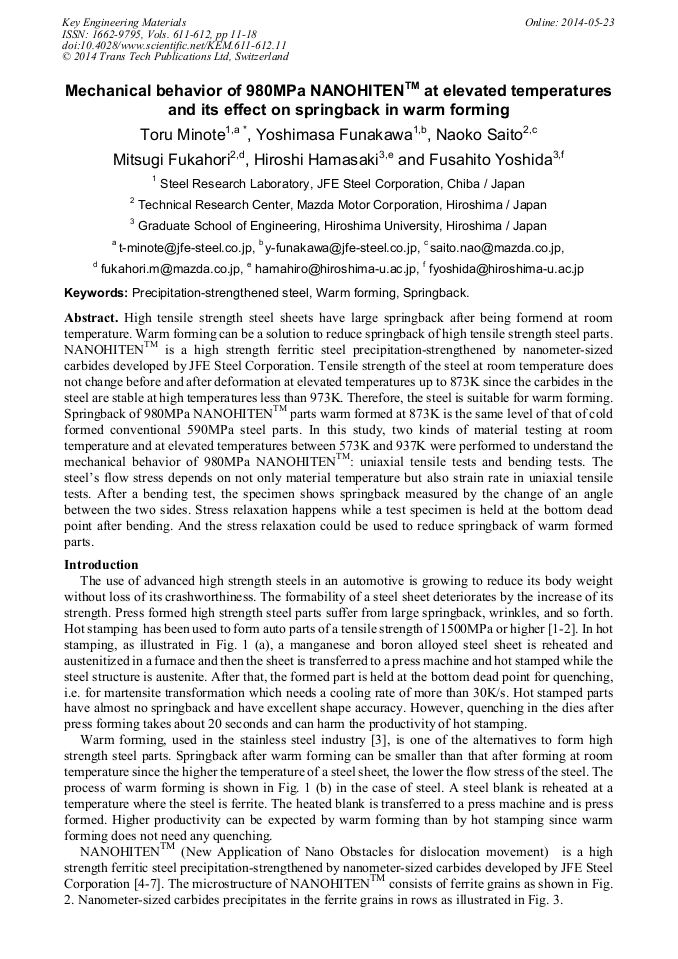

Mechanical Behavior of 980MPa NANOHITEN^TM at Elevated Temperatures and its Effect on Springback in Warm Forming

Abstract:

High tensile strength steel sheets have large springback after being formend at room temperature. Warm forming can be a solution to reduce springback of high tensile strength steel parts. NANOHITEN^TM is a high strength ferritic steel precipitation-strengthened by nanometer-sized carbides developed by JFE Steel Corporation. Tensile strength of the steel at room temperature does not change before and after deformation at elevated temperatures up to 873K since the carbides in the steel are stable at high temperatures less than 973K. Therefore, the steel is suitable for warm forming. Springback of 980MPa NANOHITEN^TM parts warm formed at 873K is the same level of that of cold formed conventional 590MPa steel parts. In this study, two kinds of material testing at room temperature and at elevated temperatures between 573K and 937K were performed to understand the mechanical behavior of 980MPa NANOHITEN^TM: uniaxial tensile tests and bending tests. The steels flow stress depends on not only material temperature but also strain rate in uniaxial tensile tests. After a bending test, the specimen shows springback measured by the change of an angle between the two sides. Stress relaxation happens while a test specimen is held at the bottom dead point after bending. And the stress relaxation could be used to reduce springback of warm formed parts.

• Periodical: Key Engineering Materials (Volumes 611-612)
• Pages: 11-18
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.611-612.11
• Online since: May 2014
• Authors: Toru Minote*, Yoshimasa Funakawa, Naoko Saito, Mitsugi Fukahori, H. Hamasaki, Fusahito Yoshida
• Keywords: Precipitation-Strengthened Steel, Springback, Warm Forming

References

[1] M. Naderi, M. Ketabchi, M. Abbasi, W. Bleck, Analysis of Microstructure and Mechanical Properties of Different Hot Stamped B-bearing Steels, steel research int. 81 (2010) No. 3, pp.216-223.

DOI: 10.1002/srin.200900125

[2] H. Karbasian, A.E. Tekkaya, A review of hot stamping, Journal of Materials Processing Technology 210 (2010) pp.2013-2118.

DOI: 10.1016/j.jmatprotec.2010.07.019

[3] K. Nohara, Y. Watanabe, N. Ohashi, Improvement of Deep Drawing Technology for Stainless Steel Sheets by Warm Press Forming and its Application to Industry, Proc. 5th Japan International SAMPE Symposium, Oct. 28-31, 1997, pp.341-346.

[4] Y. Funakawa, T. Shiozaki, K. Tomita, T. Yamamoto, E. Maeda, Development of High Strength Hot-rolled Sheet Steel Consisting of Ferrite and Nanometer-sized Carbides, ISIJ International, Vol. 44 (2004), No. 11, p.1945-(1951).

DOI: 10.2355/isijinternational.44.1945

[5] Y. Funakawa, T. Fujita, K. Yamada, Metallurgical Feature of NANO-HITEN and Its Application to Warm Stamping, JFE Gihou, No. 30 (2012), pp.1-5.

[6] Y. Funakawa, K. Seto, Stabilization in Strength of Hot-rolled Sheet Steel Strengthened by Nanometer-sized Carbides, Tetsu-to-Hagane, Vol. 93 (2007) No. 1, pp.49-56.

DOI: 10.2355/tetsutohagane.93.49

[7] Y. Funakawa, K. Seto, Coarsening Behavior of Nanometer-sized Carbides in Hot-rolled High Strength Sheet Steel, Materials Science Forum Vols. 539-543 (2007) pp.4813-4818.

DOI: 10.4028/www.scientific.net/msf.539-543.4813

[8] W. F. Hosford, Mechanical Behavior of Materials, Cambridge University Press, (2005).
