Structure and Reactivity of the La2-xSrXMnO4±δ (0.7≤ X ≤1.0) Solid Solutions in Oxidizing Condition

Thibault Broux; M. Briand; C. Prestipino; Olivier Hernandez; Mona Bahout

doi:10.4028/www.scientific.net/KEM.617.98

Paper Titles

Mechanochemical/Solvothermal Synthesis of LiMn₂O₄ as a Cathode Material for Rechargeable Batteries
p.81

Process Study of Nanosized Powder Dispersion for DEFC
p.85

Redox Behaviour of Potential SOFC Cathode Materials La_1.6Sr_0.4Ni_1-xCo_xO_4+δ (x = 0.6 and 0.8) Determined from In Situ Neutron Powder Diffraction under Flowing O₂ and 5%H₂
p.89

SEM-TES Application to Chemical State Analysis on Cation of Electrode Materials for Electrochemical Capacitors Based on the Sensitivity Correction of X-Ray Intensity Data
p.94

Structure and Reactivity of the La_2-xSr_XMnO_4±δ (0.7≤ X ≤1.0) Solid Solutions in Oxidizing Condition
p.98

Development of Novel "Sponge-Type" Sorbent for Elimination of CS: Preparation of Ammonium Molybdophosphate - Polyurethane Foam (AMP-PUF) Composite and its Sorption Behavior
p.105

Effect of Multiple Parallel Grooves on the Photocatalytic Activity of Rutile TiO₂ Surfaces
p.109

Gravimetric and Differential Thermal Analysis of Cullet-Based Glass Foams
p.113

Decontamination of Radioactive Cesium from Sea Sludge Using Microbial Activity
p.117

HomeKey Engineering MaterialsKey Engineering Materials Vol. 617Structure and Reactivity of the La2-xSrXMnO4±δ...

Structure and Reactivity of the La_2-xSr_XMnO_4±δ (0.7≤ X ≤1.0) Solid Solutions in Oxidizing Condition

Abstract:

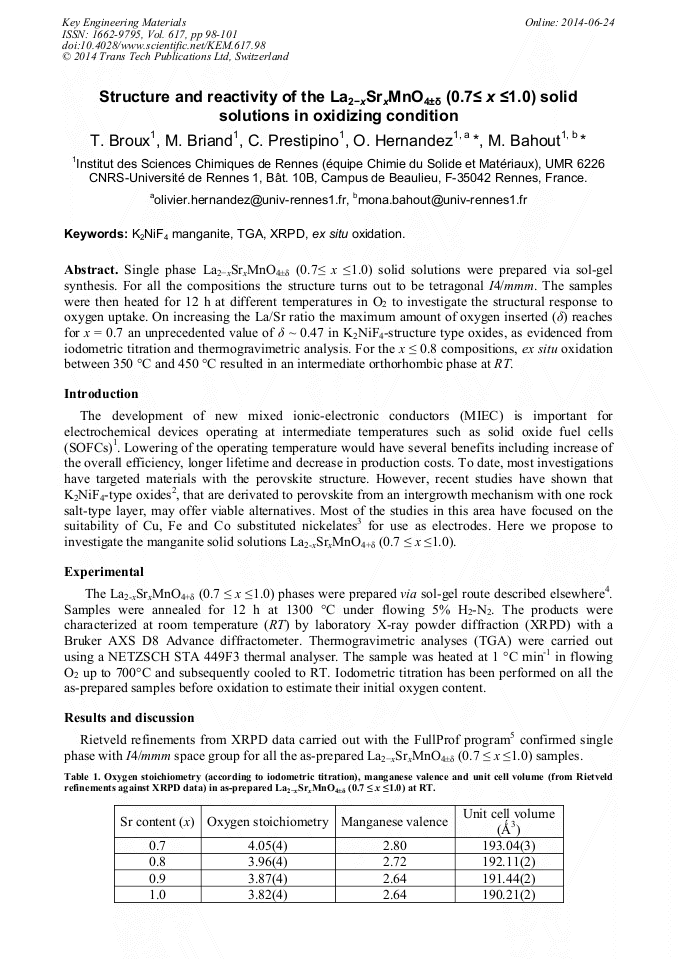

Single phase La_2xSr_xMnO_4±δ (0.7 x 1.0) solid solutions were prepared via sol-gel synthesis. For all the compositions the structure turns out to be tetragonal I4/mmm. Samples were then heated for 12 h at different temperatures in O₂ to investigate the structural response to oxygen uptake. On increasing the La/Sr ratio the maximum amount of oxygen inserted (δ) reaches for x = 0.7 an unprecedented value of δ ~ 0.47 in K₂NiF₄-structure type oxides, as evidenced from iodometric titration and thermogravimetric analysis. For the x 0.8 compositions the oxidation resulted in an intermediate orthorhombic phase.
