Research on Non-Circular Gear Hobbing Simulation Based on Piecewise Cubic Spline Fitting

Abstract:

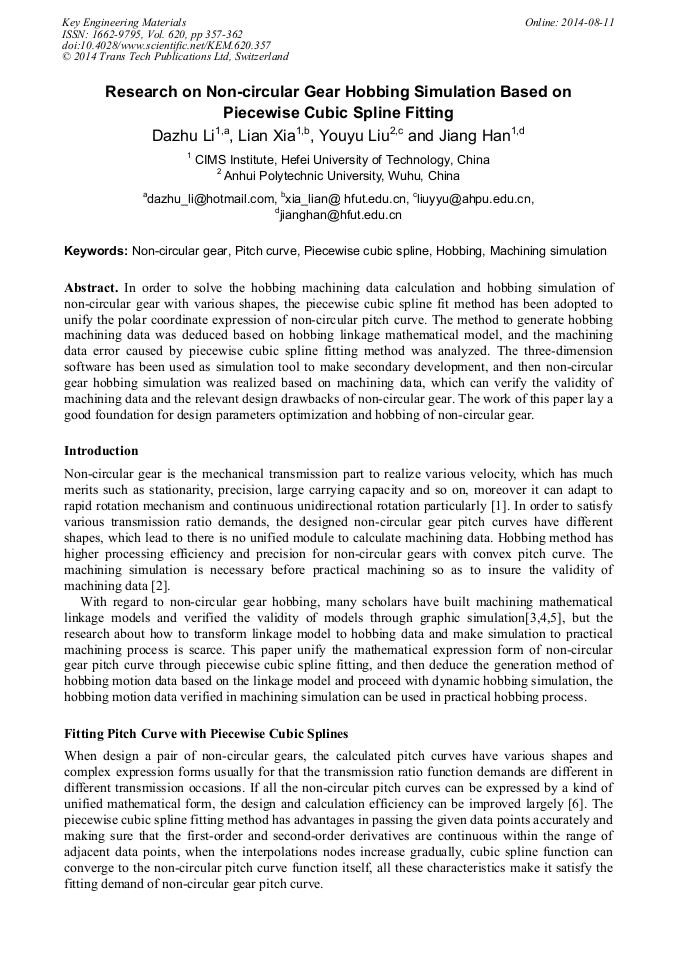

In order to solve the hobbing machining data calculation and hobbing simulation of non-circular gear with various shapes, the piecewise cubic spline fit method has been adopted to unify the polar coordinate expression of non-circular pitch curve. The method to generate hobbing machining data was deduced based on hobbing linkage mathematical model, and the machining data error caused by piecewise cubic spline fitting method was analyzed. The three-dimension software has been used as simulation tool to make secondary development, and then non-circular gear hobbing simulation was realized based on machining data, which can verify the validity of machining data and the relevant design drawbacks of non-circular gear. The work of this paper lay a good foundation for design parameters optimization and hobbing of non-circular gear.
