Investigation on Intragranular Stress of Mg Including Several Twin-Bands Using Dislocation-Based Crystal Plasticity and Phase-Field Models

Ruho Kondo; Yuichi Tadano; Kazuyuki Shizawa

doi:10.4028/www.scientific.net/KEM.626.246

Paper Titles

Effect of Asperity Plastic Deformation on the Interface Friction in Metal Forming
p.222

An Estimation of Joint Strength by Using Fe-Based Shape Memory Alloy Subjected to Bending Deformation at Various Deformation Rate
p.228

Buckling Behavior and Atomic Elastic Stiffness in Defective Multi-Walled Carbon Nanotube under Axial Compression
p.234

Effect of Plastic Anisotropy on the Strain Rate Intensity Factor: A Simple Analytic Solution
p.240

Investigation on Intragranular Stress of Mg Including Several Twin-Bands Using Dislocation-Based Crystal Plasticity and Phase-Field Models
p.246

Study for Sheared Edge Quality of High Strength Steel Sheet
p.252

Dynamic Behaviors of Aluminium Foam Analyzed Using Digital Image Processing Technology
p.258

Crystal Plasticity Analysis of Mechanical Response and Size Effect in Two Phase Alloys with Dispersion of Fine Particles
p.264

Experimental Investigation and FEM Simulation on Material Behaviors of Cylinder with the Rotating Flat Die
p.269

HomeKey Engineering MaterialsKey Engineering Materials Vol. 626Investigation on Intragranular Stress of Mg...

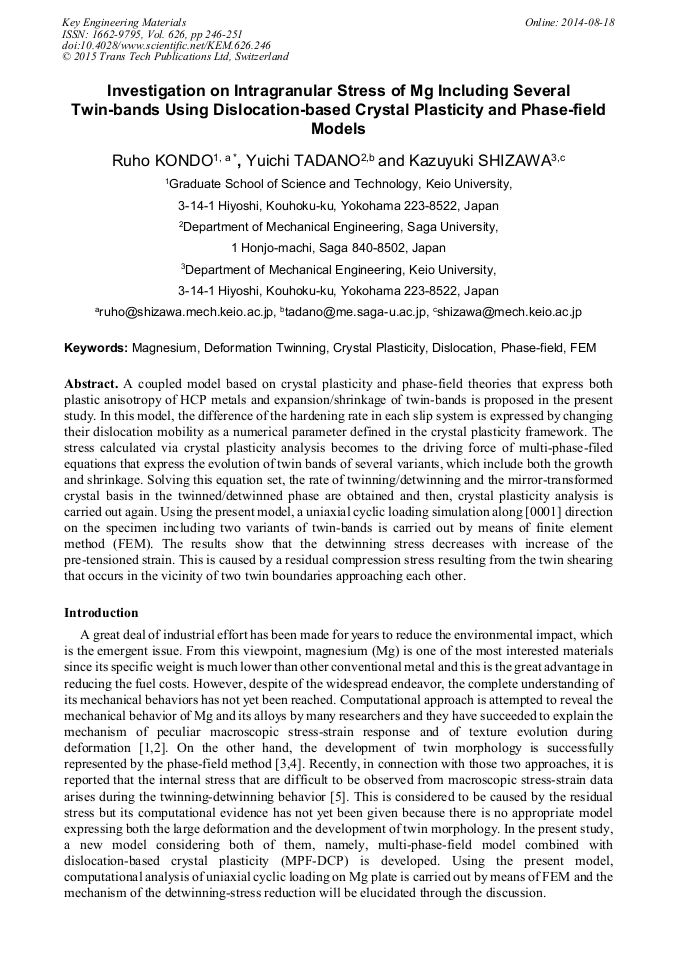

Investigation on Intragranular Stress of Mg Including Several Twin-Bands Using Dislocation-Based Crystal Plasticity and Phase-Field Models

Abstract:

A coupled model based on crystal plasticity and phase field theories that express both plastic anisotropy of HCP metals and expansion/shrinkage of twin-bands is proposed in the present study. In this model, the difference of the hardening rate in each slip system is expressed by changing their dislocation mobility as a numerical parameter defined in the crystal plasticity framework. The stress calculated via crystal plasticity analysis becomes to the driving force of multi-phase filed equations that express the evolution of twin bands of several variants, which include both the growth and shrinkage. Solving this equation set, the rate of twinning/detwinning and the mirror-transformed crystal basis in the twinned/detwinned phase are obtained and then, crystal plasticity analysis is carried out again. Using the present model, a uniaxial cyclic loading simulation along [0001] direction on the specimen including two variants of twin-bands is carried out by means of finite element method (FEM). The results show that the detwinning stress decreases with increase of the pre-tensioned strain. This is caused by a residual compression stress resulting from the twin shearing that occurs in the vicinity of two twin boundaries approaching each other.
