Study of Microhardness and Young's Modulus of Copper Thin Film by Tip-Grit AFM Scratch Technology in Various Environments

Abstract:

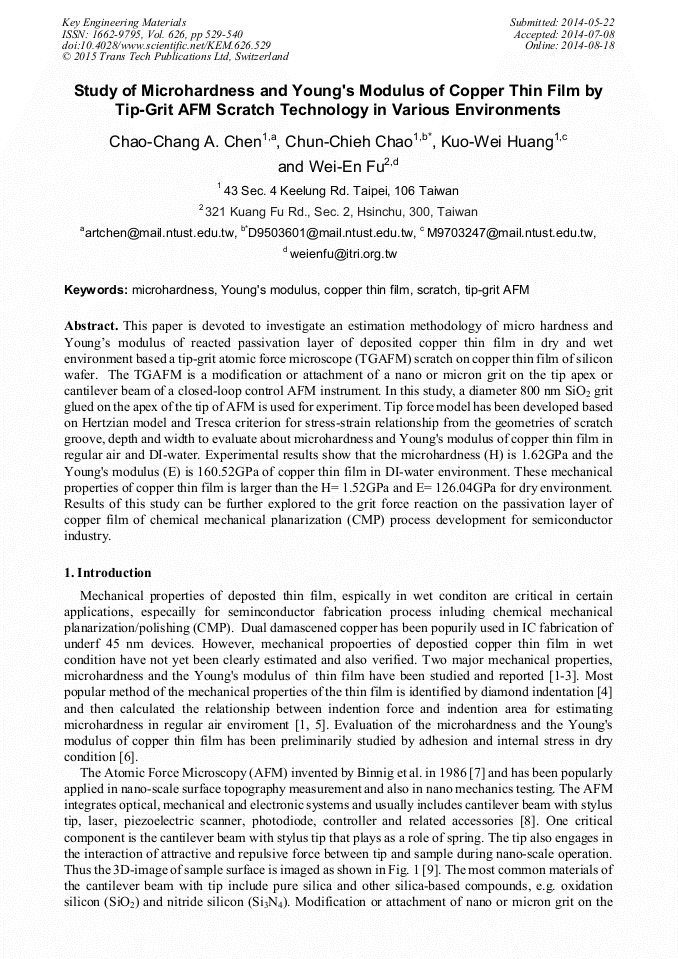

Article Preview

This paper is devoted to investigate an estimation methodology of micro hardness and Young’s modulus of reacted passivation layer of deposited copper thin film in dry and wet environment based a tip-grit atomic force microscope (TGAFM) scratch on copper thin film of silicon wafer. The TGAFM is a modification or attachment of a nanoor micron grit on the tip apex or cantilever beam of a closed-loop control AFM instrument. In this study, a diameter 800 nm SiO2 grit glued on the apex of the tip of AFM is used for experiment. Tip force model has been developed based on Hertzian model and Tresca criterion for stress-strain relationship from the geometries of scratch groove, depth and width to evaluate about microhardness and Young's modulus of copper thin film in regular air and DI-water. Experimental results show that the microhardness (H) is 1.62GPa and the Young's modulus (E) is 160.52GPa of copper thin film in DI-water environment. These mechanical properties of copper thin film is larger than the H= 1.52GPa and E= 126.04GPa for dry environment. Results of this study can be further explored to the grit force reaction on the passivation layer of copper film of chemical mechanical planarization (CMP) process development for semiconductor industry.

Info:

Periodical:

Edited by:

Yeong-Maw Hwang and Cho-Pei Jiang

Pages:

529-540

Citation:

C. C. A. Chen et al., "Study of Microhardness and Young's Modulus of Copper Thin Film by Tip-Grit AFM Scratch Technology in Various Environments", Key Engineering Materials, Vol. 626, pp. 529-540, 2015

Online since:

August 2014

Export:

Price:

$38.00

* - Corresponding Author

[1] T. -H. Fang and W. -J. Changb, Nanomechanical properties of copper thin films on different substrates using the nanoindentation technique, Microelectronic Engineering, vol. 65, pp.231-238, (2003).

DOI: https://doi.org/10.1016/s0167-9317(02)00885-7

[2] P. G. Sanders, J. A. Eastman, and R. Weertman, Elastic and Tensile Behavior of Nanocrystalline Copper and Palladium, Acta Materialia, vol. 45, pp.4019-4025, (1997).

DOI: https://doi.org/10.1016/s1359-6454(97)00092-x

[3] B. -K. Jang and H. Matsubara, Hardness and Young's modulus of nanoporous EB-PVD YSZ coatings by nanoindentation, Journal of Alloys and Compounds, vol. 402, pp.237-241, (2005).

DOI: https://doi.org/10.1016/j.jallcom.2005.02.064

[4] M. Zhao, X. Chen, Y. Xiang, J. J. Vlassak, D. Lee, N. Ogasawara, et al., Measuring elastoplastic properties of thin films on an elastic substrate using sharp indentation, Acta Materialia, vol. 55, pp.6260-6274, (2007).

DOI: https://doi.org/10.1016/j.actamat.2007.07.045

[5] A. T. Al-Halhouli, I. Kampen, T. Krah, and S. Büttgenbach, Nanoindentation testing of SU-8 photoresist mechanical properties, Microelectronic Engineering, vol. 85, pp.942-944, (2008).

DOI: https://doi.org/10.1016/j.mee.2008.01.033

[6] M. Yu, J. Zhang, D. Li, Q. Meng, and W. Li, Internal stress and adhesion of Cu film/Si prepared by both MEVVA and IBAD, Surface and Coatings Technology, vol. 201, pp.1243-1249, (2006).

DOI: https://doi.org/10.1016/j.surfcoat.2006.01.047

[7] G. Binnig and C. F. Quate, Atomic Force Microscope, Physical Review Letters, vol. 56, p.930, (1986).

[8] D. Li, H. Yamamoto, H. Takeuchi, and Y. Kawashima, A novel method for modifying AFM probe to investigate the interaction between biomaterial polymers (Chitosan-coated PLGA) and mucin film, European Journal of Pharmaceutics and Biopharmaceutics, vol. 75, pp.277-283, (2010).

DOI: https://doi.org/10.1016/j.ejpb.2010.02.013

[9] N. Saka, T. Eusner, and J. -H. Chun, Nano-scale scratching in chemical–mechanical polishing, CIRP Annals - Manufacturing Technology, vol. 57, pp.341-344, (2008).

DOI: https://doi.org/10.1016/j.cirp.2008.03.098

[10] Y. Gan, Invited Review Article: A review of techniques for attaching micro- and nanoparticles to a probe's tip for surface force and near-field optical measurements, Review of Scientific Instruments, vol. 78, p.081101, (2007).

DOI: https://doi.org/10.1063/1.2754076

[11] D. Beegan, S. Chowdhury, and M. T. Laugier, A nanoindentation study of copper films on oxidised silicon substrates, Surface and Coatings Technology, vol. 176, pp.124-130, (2003).

DOI: https://doi.org/10.1016/s0257-8972(03)00774-6

[12] D. Beegan, S. Chowdhury, and M. T. Laugier, The nanoindentation behaviour of hard and soft films on silicon substrates, Thin Solid Films, vol. 466, pp.167-174, (2004).

DOI: https://doi.org/10.1016/j.tsf.2004.03.006

[13] Y. M. Soifer, A. Verdyan, M. Kazakevich, and E. Rabkin, Edge effect during nanoindentation of thin copper films, Materials Letters, vol. 59, pp.1434-1438, (2005).

DOI: https://doi.org/10.1016/j.matlet.2004.08.043

[14] A. A. Tseng, S. Jou, A. Notargiacomo, and T. P. Chen, Recent Developments in Tip-Based Nanofabrication and Its Roadmap, Journal of Nanoscience and Nanotechnology, vol. 8, pp.2167-2186, (2008).

DOI: https://doi.org/10.1166/jnn.2008.243

[15] C. -C. A. Chen and J. -R. Chen, Nanopattern Fabrication by Tip Plowing Technology on 55 nm Grating with Stitching Image Method, Journal of Nanoscience and Nanotechnology, vol. 10, pp.1-6, (2010).

DOI: https://doi.org/10.1166/jnn.2010.2354

[16] J. -E. Schmutz, H. Fuchs, and H. Hölscher, Measuring wear by combining friction force and dynamic force microscopy, Wear, vol. 268, pp.526-532, (2010).

DOI: https://doi.org/10.1016/j.wear.2009.09.010

[17] F. Sansoz and T. Gang, A force-matching method for quantitative hardness measurements by atomic force microscopy with diamond-tipped sapphire cantilevers, Ultramicroscopy, vol. 111, pp.11-9, Dec (2010).

DOI: https://doi.org/10.1016/j.ultramic.2010.09.012

[18] W. -E. Fu, C. -C. A. Chen, K. -W. Huang, and Y. -Q. Chang, Material removal mechanism of Cu-CMP studied by nano-scratching under various environmental conditions, Wear, vol. 278-279, pp.87-93, (2012).

DOI: https://doi.org/10.1016/j.wear.2012.01.003

[19] W. -E. Fu, C. -C. A. Chen, K. -W. Huang, Y. -Q. Chang, T. -Y. Lin and C. -S. Chang, Nano-scratch evaluations of copper chemical mechanical polishing, Thin Solid Films, vol. 529, pp.306-311, (2013).

DOI: https://doi.org/10.1016/j.tsf.2012.03.057

[20] C. -C. Chao, C. -C. A. Chen, K. -W. Huang, and W. -E. Fu, State-of-the-Art Review of Tip-Grit AFM Force Analysis Methods for CMP Process, The 16th International Conference on Advances in Materials & Processing Technologies, vol. S34_3, (2013).

[21] W. -E. Fu, Y. -Q. Chang, B. -C. He, and C. -L. Wu, Determination of Young's modulus and Poisson's ratio of thin films by X-ray methods, Thin Solid Films, vol. 544, pp.201-205, (2013).

DOI: https://doi.org/10.1016/j.tsf.2013.03.121

[22] A. Gouldstone, H. -J. Koh, K. -Y. Zeng, A. E. Giannakopulos, and S. Suresh, Discrete and Continuous Deformation During Nanoindentation of Thin Films, Acta Materialia, vol. 48, pp.2277-2295, (2000).

DOI: https://doi.org/10.1016/s1359-6454(00)00009-4

[23] C. F. Tsang and J. Woo, Effect of nitrogen and oxygen annealing on the morphology and hardness behavior of copper thin films, Materials Characterization, vol. 45, pp.187-194, (2000).

DOI: https://doi.org/10.1016/s1044-5803(00)00072-3

[24] R. W. Armstrong, H. Shin, and A. W. Ruff, Elastic/Plastic Effects During Very Low-Load Hardness Testing of Copper, Acta metall, mater., vol. 43, pp.1037-1043, (1995).

DOI: https://doi.org/10.1016/0956-7151(94)00291-o
