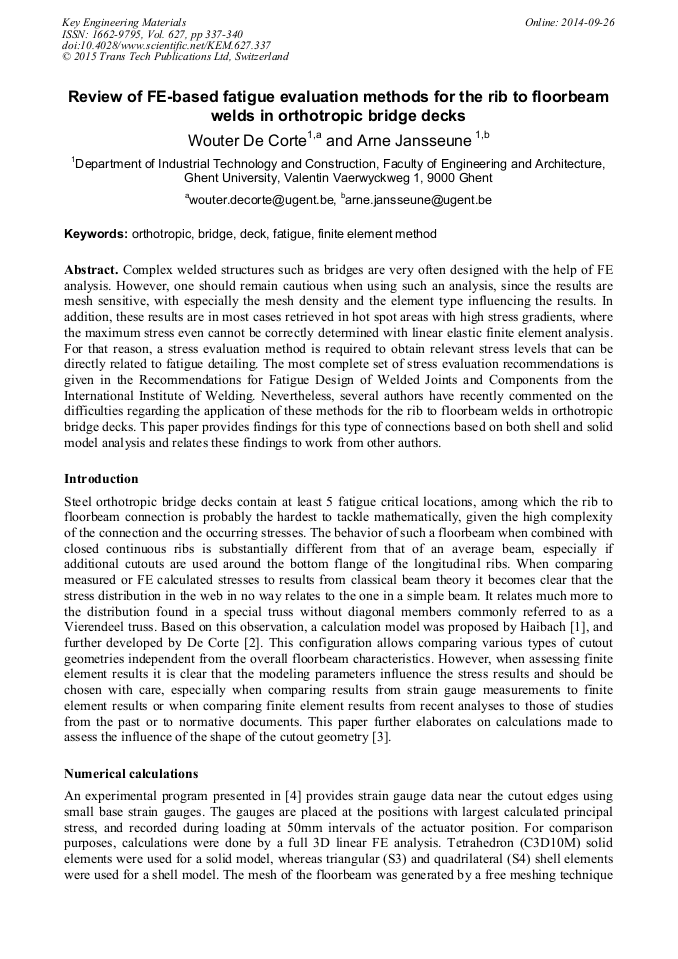

Review of FE-Based Fatigue Evaluation Methods for the Rib to Floorbeam Welds in Orthotropic Bridge Decks

Abstract:

Complex welded structures such as bridges are very often designed with the help of FE analysis. However, one should remain cautious when using such an analysis, since the results are mesh sensitive, with especially the mesh density and the element type influencing the results. In addition, these results are in most cases retrieved in hot spot areas with high stress gradients, where the maximum stress even cannot be correctly determined with linear elastic finite element analysis. For that reason, a stress evaluation method is required to obtain relevant stress levels that can be directly related to fatigue detailing. The most complete set of stress evaluation recommendations is given in the Recommendations for Fatigue Design of Welded Joints and Components from the International Institute of Welding. Nevertheless, several authors have recently commented on the difficulties regarding the application of these methods for the rib to floorbeam welds in orthotropic bridge decks. This paper provides findings for this type of connections based on both shell and solid model analysis and relates these findings to work from other authors.

• Periodical: Key Engineering Materials (Volume 627)
• Pages: 337-340
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.627.337
• Online since: September 2014
• Authors: Wouter de Corte*, Arne Jansseune
• Keywords: Bridge, Deck, Fatigue, Finite Element Method (FEM), Orthotropic

References

[1] E. Haibach and I. Pläsil, Untersuchungen zur Betriebsfestigkeit von Stahlleichtfahrbahnen met Trapezhohlsteifen im Eisenbahnbrückenbau. Der Stahlbau Vol.9, p.269–74, 1983.

[2] W. De Corte and P. Van Bogaert, Improvements to the analysis of floorbeams with additional web cutouts for orthotropic plated decks with closed continuous ribs. Steel and Composite Structures Vol.7(1), pp.1-18, 2007.

DOI: 10.12989/scs.2007.7.1.001

[3] W. De Corte, How Finite Element Modeling Choices Influence the Assessment of Stresses at the rib to floorbeam intersection, Proceedings of the 3rd Orthotropic Bridge Conference, Sacramento CA, USA, June 26-28 2013, CD-ROM.

[4] W. De Corte and A. Jansseune, Influence of Finite Element Modeling Choices in the Assessment of Stress Concentrations at Fatigue Prone Locations in Orthotropic Bridge Decks, Key Engineering Materials Vol. 525 – 526, pp.37-40, 2013.

DOI: 10.4028/www.scientific.net/kem.525-526.37

[5] A. Hobbacher, Recommendations for Fatigue Design of Welded Joints and Components. International Institute of Welding, Paris, France, October 2008.
