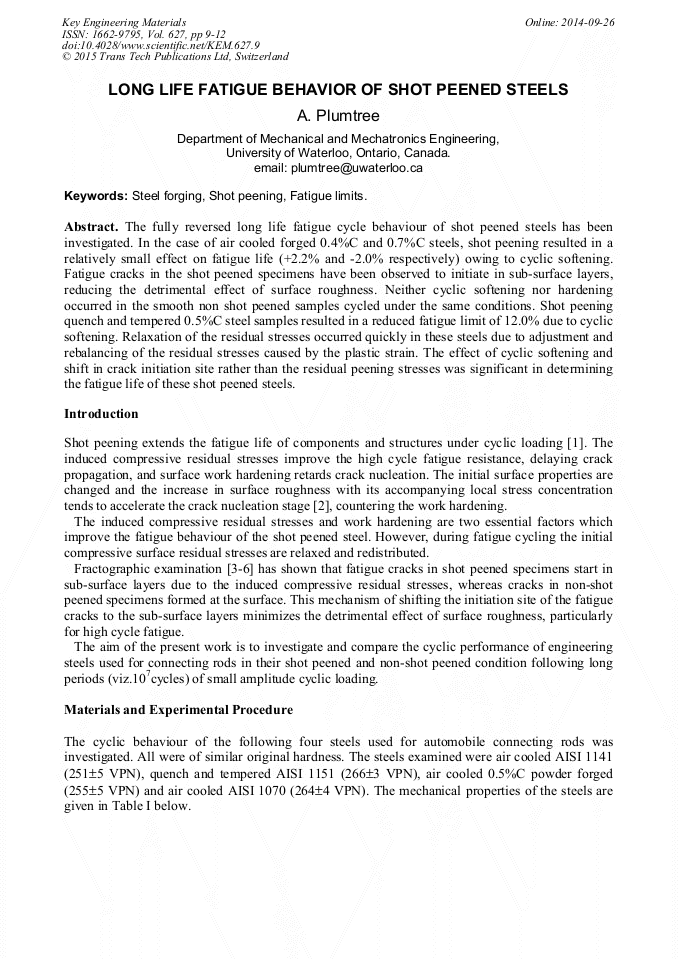

Long Life Fatigue Behavior of Shot Peened Steels

Abstract:

The fully reversed long life fatigue cycle behaviour of shot peened steels has been investigated. In the case of air cooled forged 0.4%C and 0.7%C steels, shot peening resulted in a relatively small effect on fatigue life (+2.2% and-2.0% respectively) owing to cyclic softening. Fatigue cracks in the shot peened specimens have been observed to initiate in sub-surface layers, reducing the detrimental effect of surface roughness. Neither cyclic softening nor hardening occurred in the smooth non shot peened samples cycled under the same conditions. Shot peening quench and tempered 0.5%C steel samples resulted in a reduced fatigue limit of 12.0% due to cyclic softening. Relaxation of the residual stresses occurred quickly in these steels due to adjustment and rebalancing of the residual stresses caused by the plastic strain. The effect of cyclic softening and shift in crack initiation site rather than the residual peening stresses was significant in determining the fatigue life of these shot peened steels.

• Periodical: Key Engineering Materials (Volume 627)
• Pages: 9-12
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.627.9
• Online since: September 2014
• Authors: Alan Plumtree
• Keywords: Fatigue Limit, Shot Peening, Steel Forging

References

[1] H. Guechichi and L. Castex, "Fatigue Limits Prediction of Surface Treated Materials", Journal of Materials Processing Technology, Vol.172 (2006), p.381.

DOI: 10.1016/j.jmatprotec.2005.10.010

[2] R. Fathallah, A. Laamouri, H. Sidhom, and C. Braham," High Cycle Fatigue Behavior Prediction of Shot Peened Parts", International Journal of Fatigue, Vol.26 (2004), p.1053.

DOI: 10.1016/j.ijfatigue.2004.03.007

[3] J.E. Hoffmann, D. Lohe and E. Macherauch,"Influence of Shot Peening on the Bending Fatigue Behaviour of Notched Specimens of CK 45", International Conferences on Shot Peening (ICSP-3), Garmisch-Partenkirchen, Germany, 1987, p.631.

[4] A. Plumtree,"Shot-peening Effects on Fatigue Life", 12th International Conference on Fracture, Ottawa, Canada, 2009, p.1. .

[5] M.A.S. Torres and H.J.C. Voorwald, "An Evaluation of Shot Peening, Residual Stress and Stress Relaxation on the Fatigue Life of AISI 4340 Steel", International Journal of Fatigue, Vol, 24, 2002, p.877.

DOI: 10.1016/s0142-1123(01)00205-5

[6] W.Z. Zhuang and G.R. Halford, "Investigation of Residual Stress Relaxation under Cyclic Load", International Journal of Fatigue, Vol.23, 2001, p.31.

DOI: 10.1016/s0142-1123(01)00132-3

[7] D. Eifler, D. Löhe and B. Scholtes, "Residual Stresses and Fatigue of Metallic Materials", Residual Stresses - Measurement, Calculation and Evaluation, DGM, Informationsgesellschaft Verlag, Oberursel, 1991, p.157.
