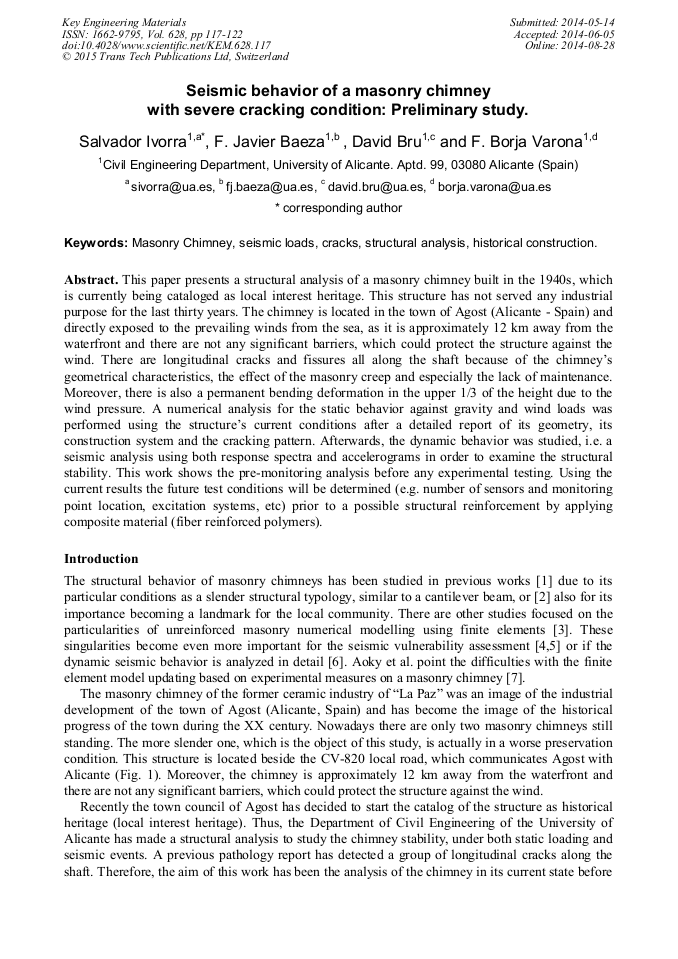

Seismic Behavior of a Masonry Chimney with Severe Cracking Condition: Preliminary Study

Abstract:

This paper presents a structural analysis of a masonry chimney built in the 1940s, which is currently being cataloged as local interest heritage. This structure has not served any industrial purpose for the last thirty years. The chimney is located in the town of Agost (Alicante - Spain) and directly exposed to the prevailing winds from the sea, as it is approximately 12 km away from the waterfront and there are not any significant barriers, which could protect the structure against the wind. There are longitudinal cracks and fissures all along the shaft because of the chimney’s geometrical characteristics, the effect of the masonry creep and especially the lack of maintenance. Moreover, there is also a permanent bending deformation in the upper 1/3 of the height due to the wind pressure. A numerical analysis for the static behavior against gravity and wind loads was performed using the structure’s current conditions after a detailed report of its geometry, its construction system and the cracking pattern. Afterwards, the dynamic behavior was studied, i.e. a seismic analysis using both response spectra and accelerograms in order to examine the structural stability. This work shows the pre-monitoring analysis before any experimental testing. Using the current results the future test conditions will be determined (e.g. number of sensors and monitoring point location, excitation systems, etc) prior to a possible structural reinforcement by applying composite material (fiber reinforced polymers).

• Periodical: Key Engineering Materials (Volume 628)
• Pages: 117-122
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.628.117
• Online since: August 2014
• Authors: S. Ivorra*, F. Javier Baeza, David Bru, F. Borja Varona
• Keywords: Crack, Historical Construction, Masonry Chimney, Seismic Loads, Structural Analysis

References

[1] P.B. Lourenço, Recommendations for restoration of ancient buildings and the survival of a masonry chimney, Construct. Build. Mater. 20 (2006) 239-251.

DOI: 10.1016/j.conbuildmat.2005.08.026

[2] F.J. Pallarés, S. Ivorra, L. Pallarés, J.M. Adam, State of the art of industrial masonry chimneys: A review from construction to strengthening, Construct. Build. Mater. 25 (2011) 4351-4361.

DOI: 10.1016/j.conbuildmat.2011.02.004

[3] H. Bilgin, and O. Korini, Seismic capacity evaluation of unreinforced masonry residential buildings in Albania, Nat. Hazards Earth Syst. Sci. 12 (2012) 3753-3764.

DOI: 10.5194/nhess-12-3753-2012

[4] M. Betti, L. Galano, A. Vignoli, Comparative analysis on the seismic behaviour of unreinforced masonry buildings with flexible diaphragms, Eng. Struct. 61 (2014) 195-208.

DOI: 10.1016/j.engstruct.2013.12.038

[5] P.G. Asteris, M.P. Chronopoulos, C.Z. Chrysostomou, H. Varum, V. Plevris, N. Kyriakides, V. Silva, Seismic vulnerability assessment of historical masonry structural systems, Eng. Struct. 62-63 (2014) 118-134.

DOI: 10.1016/j.engstruct.2014.01.031

[6] F.J. Pallarés, A. Agüero, M. Martín, Seismic behaviour of industrial masonry chimneys, Int. J. Solids Struct. 43 (2006) 2076-(2090).

DOI: 10.1016/j.ijsolstr.2005.06.014

[7] T. Aoki, D. Sabia, D. Rivella, Influence of experimental data and FE model on updating results of a brick chimney, Advances Eng. Software 39 (2008) 327-335.

DOI: 10.1016/j.advengsoft.2007.01.005

[8] K. Hacıefendioğlu, Seasonally frozen soil's effect on stochastic response of masonry minaret–soil interaction systems to random seismic excitation, Cold Regions Sci. Technol. 60 (2010) 66-74.

DOI: 10.1016/j.coldregions.2009.08.007

[9] http: /www. globalwindmap. com/VisorCENER. Centro nacional de energías renovables. Mapa eólico nacional. Spanish Government. February (2014).

[10] EN 1996-1: European masonry design code, Design of masonry structures, Part 1: General rules for reinforced and unreinforced masonry structures, (2005).

DOI: 10.3403/30092858u

[11] Norma Sismorresistente Española, NCSE-02. Ministerio de Fomento. 2002 [In Spanish].

[12] EN 1998-1: European seismic design code, Design of structures for earthquake resistance, Part 1: General rules, seismic actions and rules for buildings, (2004).

DOI: 10.1002/9783433609194.ch3

[13] D. Gasparini and E. Vanmarcke, (1976). Simulated Earthquake Motions Compatible with Prescribed Response Spectra, Report R76-4 of the Department of Civil Engineering, Massachussets Institute of Technology, Massachussets.
