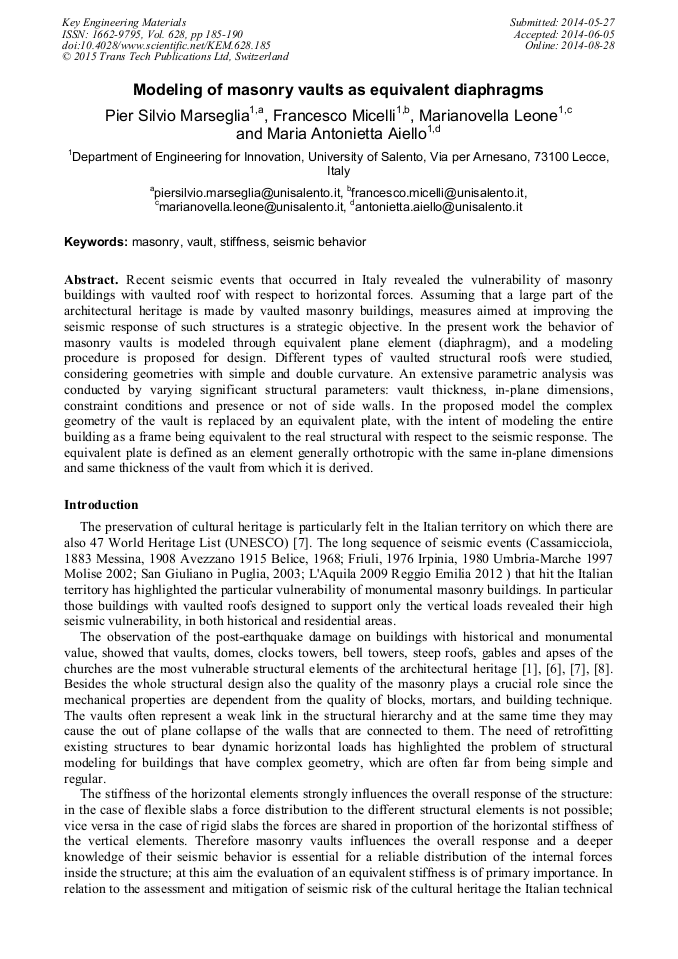

Modeling of Masonry Vaults as Equivalent Diaphragms

Abstract:

Recent seismic events that occurred in Italy revealed the vulnerability of masonry buildings with vaulted roof with respect to horizontal forces. Assuming that a large part of the architectural heritage is made by vaulted masonry buildings, measures aimed at improving the seismic response of such structures is a strategic objective. In the present work the behavior of masonry vaults is modeled through equivalent plane element (diaphragm), and a modeling procedure is proposed for design. Different types of vaulted structural roofs were studied, considering geometries with simple and double curvature. An extensive parametric analysis was conducted by varying significant structural parameters: vault thickness, in-plane dimensions, constraint conditions and presence or not of side walls. In the proposed model the complex geometry of the vault is replaced by an equivalent plate, with the intent of modeling the entire building as a frame being equivalent to the real structural with respect to the seismic response. The equivalent plate is defined as an element generally orthotropic with the same in-plane dimensions and same thickness of the vault from which it is derived.

• Periodical: Key Engineering Materials (Volume 628)
• Pages: 185-190
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.628.185
• Online since: August 2014
• Authors: Pier Silvio Marseglia*, Francesco Micelli, Marianovella Leone, Maria Antonietta Aiello
• Keywords: Masonry, Seismic Behavior, Stiffness, Vault

References

[1] Brandonisio G., Lucibello G., Mele E., De Luca A., , Damage and performance evaluation of masonry churches in the 2009 L'Aquila earthquake, Engineering Failure Analysis, Volume 34, December, (2013) (693–714).

DOI: 10.1016/j.engfailanal.2013.01.021

[2] Cattari S., Resemini S, Lagomarsino S, , Modelling of vaults as equivalent diaphragms in 3D seismic analysis of masonry buildings, - DICAT, University of Genoa, Italy –SACH (2008).

DOI: 10.1201/9781439828229.pt5

[3] Direttiva del presidente del consiglio dei ministri, Valutazione e riduzione del rischio sismico del patrimonio culturale con riferimento alle Norme tecniche per le costruzioni di cui al decreto del Ministero delle infrastrutture e dei trasporti del 14-gennaio 2008, (2011).

DOI: 10.2307/j.ctv170x3r5.14

[4] NTC2008 - Norme tecniche per le costruzioni - D.M. 14 Gennaio (2008).

[5] Galasco A., Lagomarsino S., Penna A., Resemini S. "Non-linear seismic analysis of masonry structures, 13th WCEE, Vancouver, B.C., August 1-6 2004, (2004) paper no. 843.

[6] Gattulli V., Antonacci E., Vestroni F., "Field observations and failure analysis of the Basilica Engineering Failure Analysis, Volume 34, December, , (2013) (715–734).

DOI: 10.1016/j.engfailanal.2013.01.020

[7] Parisi F., Augenti N., Earthquake damages to cultural heritage constructions and simplified assessment of artworks, Engineering Failure Analysis, Volume 34, December 2013, (2013) (735–760).

DOI: 10.1016/j.engfailanal.2013.01.005

[8] Romão X., Costa A.A., Paupério E., Rodrigues H., Vicente R., Varum H., Costa A., - Field observations and interpretation of the structuralperformance of constructions after the 11 May 2011 Lorca earthquake, Engineering Failure Analysis, Volume 34, December, (2013).

DOI: 10.1016/j.engfailanal.2013.01.040

[9] Saracino M., – Il tufo e la stanza a volta, – Edizioni Grifo, Lecce, (1998).

[10] Autodesk Inventor, software di modellazione 3D.

[11] Eurocode 6 – Design of masonry structures, part 1-1, general rules for buildings, rules for reinforced and unreinforced masonry, UNI EN 1996 -1-1: (2006).

DOI: 10.3403/00873617

[12] Information on http: /www. costruzioniavolta. com.

[13] ANSYS® Academic Research, Release 14. 0.
