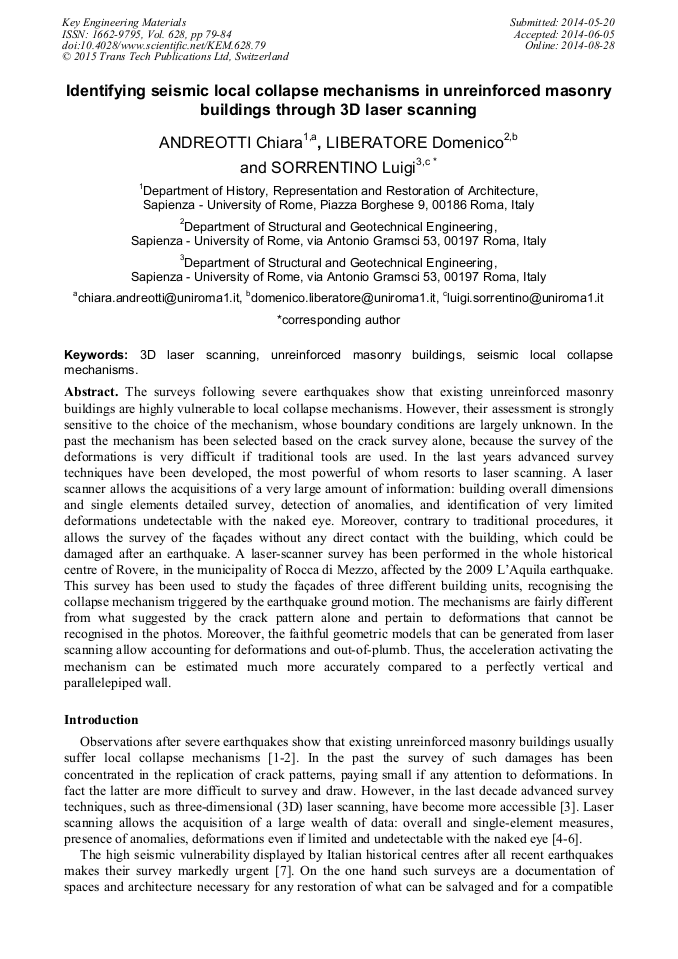

Identifying Seismic Local Collapse Mechanisms in Unreinforced Masonry Buildings through 3D Laser Scanning

Abstract:

The surveys following severe earthquakes show that existing unreinforced masonry buildings are highly vulnerable to local collapse mechanisms. However, their assessment is strongly sensitive to the choice of the mechanism, whose boundary conditions are largely unknown. In the past the mechanism has been selected based on the crack survey alone, because the survey of the deformations is very difficult if traditional tools are used. In the last years advanced survey techniques have been developed, the most powerful of whom resorts to laser scanning. A laser scanner allows the acquisitions of a very large amount of information: building overall dimensions and single elements detailed survey, detection of anomalies, and identification of very limited deformations undetectable with the naked eye. Moreover, contrary to traditional procedures, it allows the survey of the façades without any direct contact with the building, which could be damaged after an earthquake. A laser-scanner survey has been performed in the whole historical centre of Rovere, in the municipality of Rocca di Mezzo, affected by the 2009 L’Aquila earthquake. This survey has been used to study the façades of three different building units, recognising the collapse mechanism triggered by the earthquake ground motion. The mechanisms are fairly different from what suggested by the crack pattern alone and pertain to deformations that cannot be recognised in the photos. Moreover, the faithful geometric models that can be generated from laser scanning allow accounting for deformations and out-of-plumb. Thus, the acceleration activating the mechanism can be estimated much more accurately compared to a perfectly vertical and parallelepiped wall.

• Periodical: Key Engineering Materials (Volume 628)
• Pages: 79-84
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.628.79
• Online since: August 2014
• Authors: Chiara Andreotti, Domenico Liberatore, Luigi Sorrentino*
• Keywords: 3D Laser Scanning, Seismic Local Collapse Mechanisms, Unreinforced Masonry Buildings

References

[1] L. Sorrentino, L. Liberatore, D. Liberatore, R. Masiani, The behaviour of vernacular buildings in the 2012 Emilia earthquakes. Bull. Earthquake Eng. (2013), doi: 10. 1007/s10518-013-9455-2.

DOI: 10.1007/s10518-013-9455-2

[2] L. Sorrentino, L. Liberatore, L.D. Decanini, D. Liberatore, The performance of churches in the 2012 Emilia earthquakes. Bull. Earthquake Eng. (2013), doi: 10. 1007/s10518-013-9519-3.

DOI: 10.1007/s10518-013-9519-3

[3] T. Fiorucci, Metodologie innovative integrate per il rilevamento dell'architettura e dell'ambiente, Gangemi, Roma, (2005).

[4] E. Milani, C. Alessandri, Rilievo 3D ed interfacciamento con il calcolo strutturale: la casa di Paquius Proculus a Pompei, in: M. Docci (Ed. ), Metodi e tecniche integrate di rilevamento per la realizzazione di modelli virtuali dell'architettura della città, Gangemi, Roma, pp.68-73.

DOI: 10.4995/fortmed2020.2020.11356

[5] J. McInerney, I. Trzcinski, M.J. DeJong, Discrete element modelling of masonry using laser scanning data, in: 8th International Conference on Structural Analysis of Historical Constructions, Wroclaw, 15-17 October 2012, pp.2480-2487.

[6] D. Liberatore, N. Masini, L'acciaio negli interventi di rinforzo e miglioramento strutturale del patrimonio monumentale, In: Rehabend 2014, 1-4 Abril 2014, Santander.

[7] L. Caravaggi, O. Carpenzano, A. Fioritto, C. Imbroglini, L. Sorrentino, Ricostruzione e governo del rischio. Piani di Ricostruzione post sisma dei Comuni di Lucoli, Ovindoli, Rocca di Cambio e Rocca di Mezzo (L'Aquila), Quodlibet, Macerata, (2013).

DOI: 10.2307/j.ctv18phgdk.10

[8] N. Milella, M. Zonno, La scansione laser per il rilievo di edifici danneggiati dal sisma, L'Edilizia 161 (2009): 56-59.

[9] F. Guerra, V. Buttolo, E. Geremia, Rilievo laser scanning e analisi di facciate colpite dal sisma, In: La realtà virtuale a supporto dell'osservazione della terra, L'Aquila, 4 maggio 2011, paper 2.

[10] V. Buttolo, Il sisma aquilano: rilievo laser-scanner delle architetture e interpretazione dei dati, in: 15ᵃ Conferenza Nazionale delle Associazioni Scientifiche per le Informazioni Territoriali e Ambientali, Reggia di Colorno, 15-18 novembre 2011, pp.513-519.

[11] A. Pesci, E. Bonali, Esperienze di rilievo laser scanning nelle zone emiliane colpite dal terremoto: interventi in fase di emergenza, Ingenio 5 (2012): 24.

[12] E. Bonali, A. Pesci, G. Casula, E. Boschi, L'antica Pieve di Cantalovo e i segni del terremoto. Archeomatica 2 (2012): 32-35.

[13] L. Sorrentino, E. Raglione, L. Decanini, D. Liberatore, Chiesa di San Biagio d'Amiternum, Arkos: Scienza e Restauro 20 (2009): 67-72.
