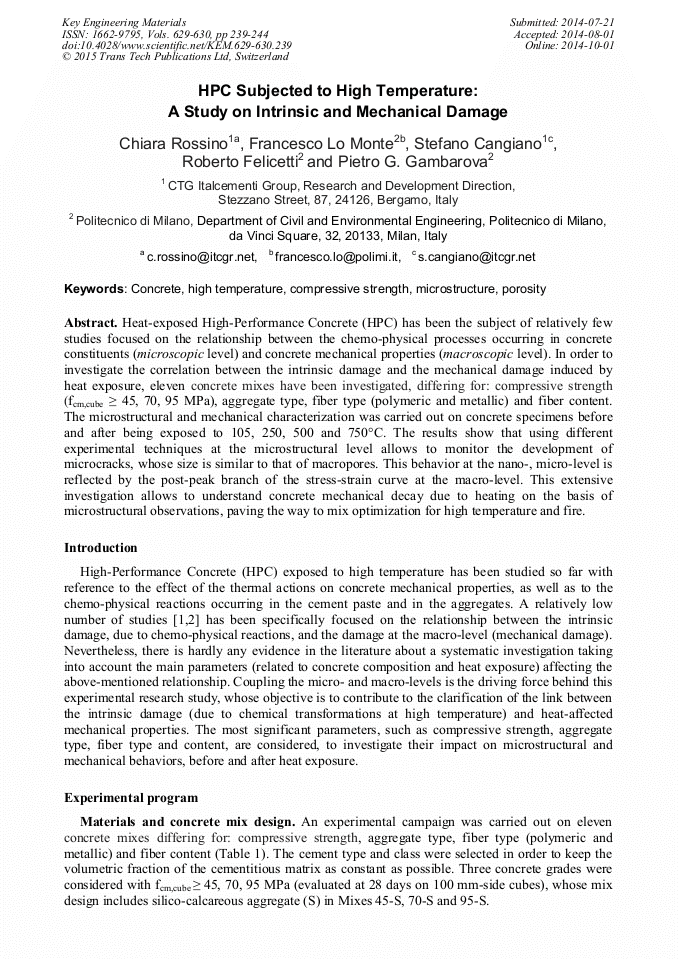

HPC Subjected to High Temperature: A Study on Intrinsic and Mechanical Damage

Abstract:

Heat-exposed High-Performance Concrete (HPC) has been the subject of relatively few studies focused on the relationship between the chemo-physical processes occurring in concrete constituents (microscopic level) and concrete mechanical properties (macroscopic level). In order to investigate the correlation between the intrinsic damage and the mechanical damage induced by heat exposure, eleven concrete mixes have been investigated, differing for: compressive strength (f_cm,cube ≥ 45, 70, 95 MPa), aggregate type, fiber type (polymeric and metallic) and fiber content. The microstructural and mechanical characterization was carried out on concrete specimens before and after being exposed to 105, 250, 500 and 750°C. The results show that using different experimental techniques at the microstructural level allows to monitor the development of microcracks, whose size is similar to that of macropores. This behavior at the nano, micro-level is reflected by the post-peak branch of the stress-strain curve at the macro-level. This extensive investigation allows to understand concrete mechanical decay due to heating on the basis of microstructural observations, paving the way to mix optimization for high temperature and fire.

• Periodical: Key Engineering Materials (Volumes 629-630)
• Pages: 239-244
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.629-630.239
• Online since: October 2014
• Authors: Chiara Rossino*, Francesco Lo Monte, Stefano Cangiano, Roberto Felicetti, Pietro G. Gambarova
• Keywords: Compressive Strength, Concrete, High Temperature, Microstructure, Porosity

References

[1] A. Noumowe, Mechanical properties and microstructure of high strength concrete containing polypropylene fibres exposed to temperatures up to 200°C, Cement and Concrete Research, 35 (2005), 2192-2198.

DOI: 10.1016/j.cemconres.2005.03.007

[2] Y.N. Chan, X. Luo, W. Sun, Compressive strength and pore structure of high-performance concrete after exposure to high temperature up to 800°C, Cement and Concrete Research, 30 (2000), 247-251.

DOI: 10.1016/s0008-8846(99)00240-9

[3] G.A. Khoury, Polypropylene Fibres in Heated Concrete. Part 2: Pressure Relief Mechanism and Modelling Criteria, Magazine of Concrete Research, 60/3 (2008), 189-204.

DOI: 10.1680/macr.2007.00042

[4] F. Lo Monte, J.M. Miah, A. Shamina, R. Negri, C. Rossino, R. Felicetti, Experimental Study on the Explosive Spalling in HPC: Role of Aggregate and Fiber Types, 8th International Conference on Structures in Fire, Shanghai - China (2014), in press.

[5] C. Rossino, Intrinsic Damage and Spalling Sensitivity of Concrete Subjected to High Temperature, Ph.D. Thesis, (Supervisors: S. Cangiano and P.G. Gambarova), Politecnico di Milano, Milan – Italy (2014).

[6] L.T. Phan, N.J. Carino, Review of mechanical properties of HSC at elevated temperature, Journal of Materials in Civil Engineering, 10/8 (1998), 58-64.

DOI: 10.1061/(asce)0899-1561(1998)10:1(58)

[7] F. Cheng, V.K.R. Kodur, T. Wang, Stress-strain curves for high strength concrete at elevated temperatures, Journal of Materials in Civil Engineering, 16/1 (2004), 84-94.

DOI: 10.1061/(asce)0899-1561(2004)16:1(84)
