Influence of Aluminum Contents on Phase Behavior and Properties of TiN-Sialon-Corundum Composites by Aluminothermic Reduction Nitridation

Abstract:

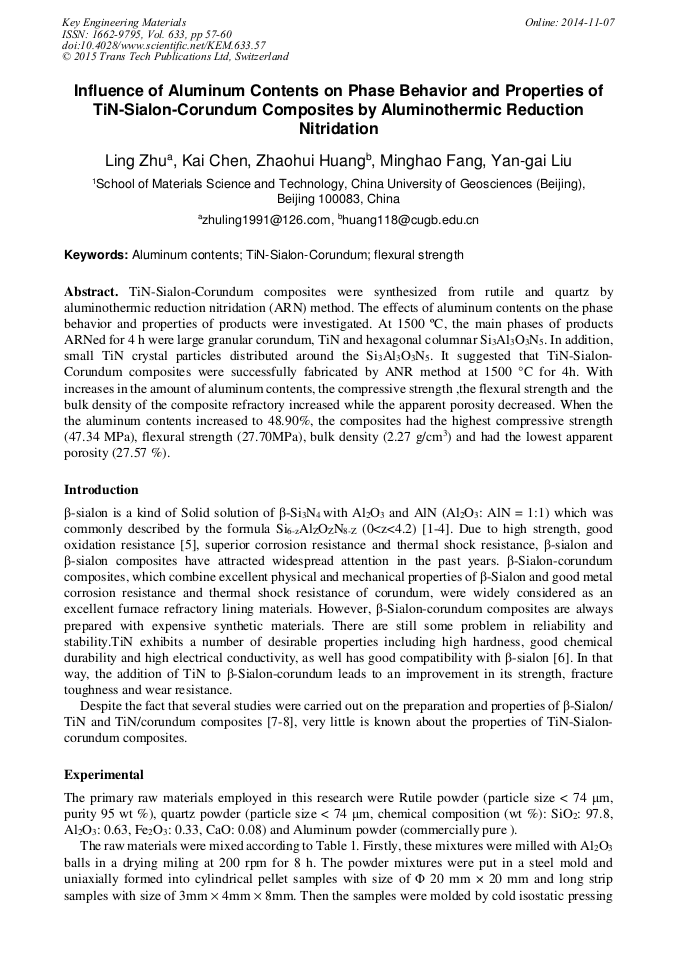

TiN-Sialon-Corundum composites were synthesized from rutile and quartz by aluminothermic reduction nitridation (ARN) method. The effects of aluminum contents on the phase behavior and properties of products were investigated. At 1500 oC, the main phases of products ARNed for 4 h were large granular corundum, TiN and hexagonal columnar Si₃Al₃O₃N₅. In addition, small TiN crystal particles distributed around the Si₃Al₃O₃N₅. It suggested that TiN-Sialon-Corundum composites were successfully fabricated by ANR method at 1500 °C for 4h. With increases in the amount of aluminum contents, the compressive strength ,the flexural strength and the bulk density of the composite refractory increased while the apparent porosity decreased. When the the aluminum contents increased to 48.90%, the composites had the highest compressive strength (47.34MPa) ,flexural strength (27.70MPa), bulk density (2.27 g/cm³) and had the lowest apparent porosity (27.57 %).

• Periodical: Key Engineering Materials (Volume 633)
• Pages: 57-60
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.633.57
• Online since: November 2014
• Authors: Ling Zhu, Kai Chen, Zhao Hui Huang*, Ming Hao Fang, Yan Gai Liu
• Keywords: Aluminum Contents, Flexural Strength, TiN-Sialon-Corundum

References

[1] Oyama Y, Kamigaito K. Solid solubility of some oxides in Si3N4. J Appl Phys, 1971, 10: 1637–1642.

[2] Jack K H, Wilson W I. Ceramics based on the Si-Al-O-N and related systems. Nature Phys Sci (London), 1972, 238: 28–29.

[3] Ekstrom T. Dense single-phase β-Sialon ceramics by glass-encapsulated hot isostatic pressing. J Mater Sci, 1989, 24: 1853–1861.

DOI: 10.1007/bf01105715

[4] Dong P L, Wang X D, Zhang M, et al. Thermodynamic study and synthesis of β-SiAlON. Sci China Ser E-Tech Sci, 2009, 52: 3122–3127.

[5] Holzer S, Häntsche JP, Spicher U, Badenheim D, Oberacker R, Hoffmann MJ. Development of Sialon ceramics for lubricated sliding applications. Materialwiss Werkst 2005, 36: 117–21.

DOI: 10.1002/mawe.200500869

[6] Kristoffer Krnel, Aljosa Maglica, et al. β-SiAlON/TiN nanocomposites prepared from TiO2-coated Si3N4 powder. Journal of the European Ceramic Society 28 (2008) 953–957.

DOI: 10.1016/j.jeurceramsoc.2007.09.021

[7] Li, Wenkui; Zhang, Baolin, et al. Effect of TiN on the corrosion behavior of Y-(α + β)-sialon/TiN materials in hot hydrochloric acidic solutions. Ceramics International, 2005, 31(2): 277-280.

DOI: 10.1016/j.ceramint.2004.05.015

[8] J.X. Zhang, Z.R. Huang et al, Preparation of titanium nitride/alumina laminate composites. J. Am. Ceram. Soc. 85 (2002) 1133-1138.
