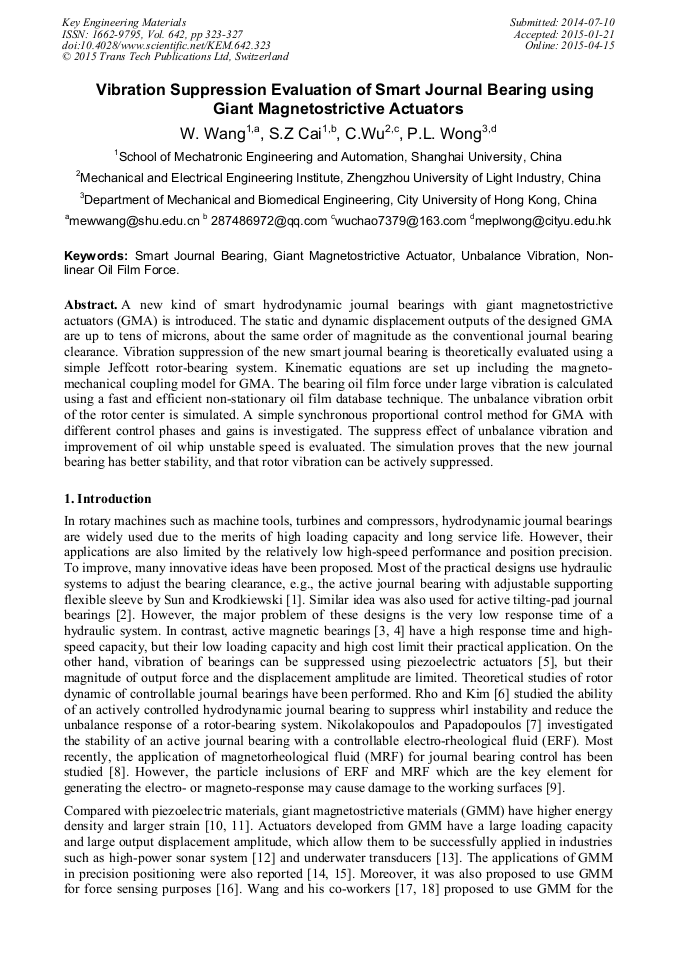

Vibration Suppression Evaluation of Smart Journal Bearing Using Giant Magnetostrictive Actuators

Abstract:

A new kind of smart hydrodynamic journal bearings with giant magnetostrictive actuators (GMA) is introduced. The static and dynamic displacement outputs of the designed GMA are up to tens of microns, about the same order of magnitude as the conventional journal bearing clearance. Vibration suppression of the new smart journal bearing is theoretically evaluated using a simple Jeffcott rotor-bearing system. Kinematic equations are set up including the magneto-mechanical coupling model for GMA. The bearing oil film force under large vibration is calculated using a fast and efficient non-stationary oil film database technique. The unbalance vibration orbit of the rotor center is simulated. A simple synchronous proportional control method for GMA with different control phases and gains is investigated. The suppress effect of unbalance vibration and improvement of oil whip unstable speed is evaluated. The simulation proves that the new journal bearing has better stability, and that rotor vibration can be actively suppressed.

• Periodical: Key Engineering Materials (Volume 642)
• Pages: 323-327
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.642.323
• Online since: April 2015
• Authors: Wen Wang*, Sheng Zong Cai, Chao Wu, P.L. Wong
• Keywords: Giant Magnetostrictive Actuator, Non-Linear Oil Film Force, Smart Journal Bearing, Unbalance Vibration

References

[1] L. Sun and J.M. Krodkiewski: J. Sound and Vibration, 230(5) (2000), p.1103.

[2] A. Wu, Z. Cai and M.S. de Queiroz: IEEE/ASME Trans. on Mechatronics, 12(6) (2007), p.689.

[3] K.Y. Lum, V.T. Coppola and D.S. Bernstein: IEEE Trans. Cont. Sys. Tech., 4(5) (1996), p.587.

[4] T. Schuhmann, W. Hofmann and R. Werner: IEEE Trans. Ind. Electronics, 59(2) (2012), p.821.

[5] A.B. Palazzolo, S. Jagannathan, A. Kascak, G.T. Montague and L.J. Kiraly: J. Vib., Acoustics, Stress & Reliability in Design, 115 (1993), p.111.

[6] B.H. Rho and K.W. Kim: Tribology International, 35 (2002), p.339.

[7] P.G. Nikolakopoulos and C.A. Papadopoulos: Tribology International, 31(5) (1998), p.225.

[8] A. Dimitrios, B. Pantelis and G. Nikolakopoulos: Simulation Modelling Practice and Theory, 19 (2011), p.1035.

[9] W.C. Leung, W.A. Bullough, P.L. Wong and C. Feng: Proc. I. Mech.E., Pt. J, 218 (2004), p.251.

[10] K.S. Chung: Actuator - Application of Giant Magnetostrictive Material, B. Sc. Final Year Project Report, MEEM Department, City University of Hong Kong (2007).

[11] C. Wu: Investigation on actively controlled hydrodynamic bearing, Ph.D. Thesis, Shanghai University, (2008). (In Chinese).

[12] R. Dhilsha, P.M. Rajeshwari and V. Rajendran: Defense Science Journal, 55(1) (2005), p.13.

[13] R. Sathishkumar, A. Vimalajuliet and J.S. Prasath: Int. J. Engg. Sci. & Tech., 2(12) (2010), p.7165.

[14] T. Ueno, C.S. Keat and T. Higuchi: IEEE Trans. Magnetics, 43(1) (2007), p.11.

[15] B. Yang, G. Meng, Z.Q. Feng and D. Yang: Mechatronics, 21 (2011), p.92.

[16] Y.J. Zhen, H.F. Liu, F.J. Wang and C. Y Ge: J. Alloys and Compounds, 509 (2011), p.1760.

[17] H.Y. Lau, K.P. Liu, W. Wang and P.L. Wong: World Congress on Engg., Lond. U.K. (2009).

[18] K.D. Ma, C. Wu, Y.Q. Fu, W. Wang and B.F. Li: Lub. Engineering, 1 (2009). (in Chinese).

[19] W. Wang, Z.M. Zhang and X.Y. Chen: J. Shanghai University, 5(3) (2001), p.230. (in Chinese).

[20] C. Xia: Gaint magnetostrictive actuator and its application in fluid control valves. Ph.D. Thesis, Zhejiang University, (1998). (In Chinese).

[21] N.N. Sarawate and M.J. Dapino: Smart Mater. Struct., 17 (2008), 045026-38.

[22] Y. Hori and T. Kato: J. Vib., Acoustics, Stress & Reliability in Design, 112(2) (1990), p.160.
