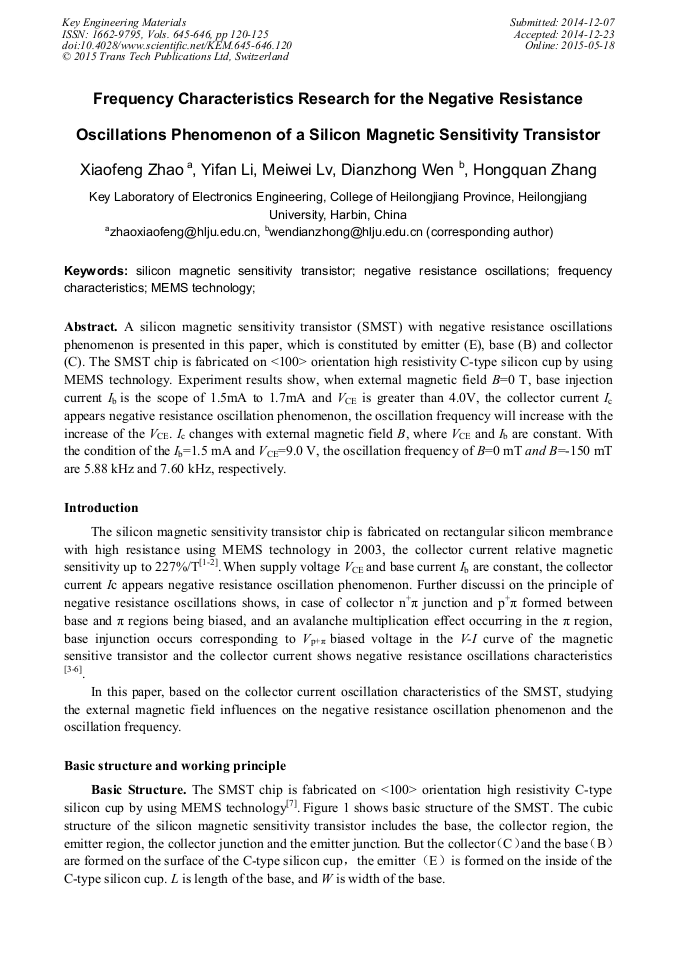

Frequency Characteristics Research for the Negative Resistance Oscillations Phenomenon of a Silicon Magnetic Sensitivity Transistor

Abstract:

A silicon magnetic sensitivity transistor (SMST) with negative resistance oscillations phenomenon is presented in this paper, which is constituted by emitter (E), base (B) and collector (C). The SMST chip is fabricated on <100> orientation high resistivity C-type silicon cup by using MEMS technology. Experiment results show, when external magnetic field B=0 T, base injection current I_b is the scope of 1.5mA to 1.7mA and V_CE is greater than 4.0V, the collector current I_c appears negative resistance oscillation phenomenon, the oscillation frequency will increase with the increase of the V_CE. I_c changes with external magnetic field B, where V_CE and I_b are constant. With the condition of the I_b=1.5 mA and V_CE=9.0 V, the oscillation frequency of B=0 mT and B=-150 mT are 5.88 kHz and 7.60 kHz, respectively.

• Periodical: Key Engineering Materials (Volumes 645-646)
• Pages: 120-125
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.645-646.120
• Online since: May 2015
• Authors: Xiao Feng Zhao, Yi Fan Li, Mei Wei Lv, Dian Zhong Wen*, Hong Quan Zhang
• Keywords: Frequency Characteristics, MEMS Technology, Negative Resistance Oscillations, Silicon Magnetic Sensitivity Transistor

References

[1] Wen Dianzhong, Mu Changsheng, Zhao Xiaofeng. Silicon magneto transistor by MEMS technology silicon transistor[J]. Journal of Transducer Technology, 2001, 20(5): 49-52.

[2] Zhao Xiaofeng, Wen Dianzhong. Negative-resistance oscillations characteristics of a new type silicon magnetic sensitive transistor on MEMS [J]. Chinese Journal of Semiconductor, 2005, 26(6): 1214-1219.

[3] Wen Dianzhong. Study on a new magnetic-transistor on a SOI substrate[J]. Chinese Journal of Electron Devices, 2006, 29(3): 609-612.

[4] Victor Zieren, Bart P.M. Duydam. Magnetic-field-sensitive multicollector n-p-n transistors[J]. IEEE Transactions on Electron Devices, 1982, 29(1): 83-90.

DOI: 10.1109/t-ed.1982.20662

[5] Tian Fengjun, Wen Dianzhong. New type of P+-I-N+ double injection magneto-sensitive difference circuit developted on SOI[J]. Journal of Transducer Technology. 2005, 24(4): 84-86.

[6] Zhao Xiaofeng, Li Lei, Wang ping, et al. Simulation research of the long-base silicon magnetic sensitive diode negative-resistance characteristics on the base of ATLAS[J]. Key Engineering Materials, 2013. 562-565: 465-470.

DOI: 10.4028/www.scientific.net/kem.562-565.465

[7] Agnes Nagy, Hector Trujillo. Highly sensitive magneto transistor with new topology[J]. Sensors and Actuators A, 1998, 65: 97-100.

DOI: 10.1016/s0924-4247(97)01625-7

[8] Zhao Xiaofeng, Wen Dianzhong. Fabrication technology research of new type silicon magnetic-sensitive transistor[J]. Rare Metal Materials and Engineering, 2006, 35(12): 492-494.

[9] Zhao Xiaofeng, Wen Dianzhong, Pan Dongyang, et al. Differential structure and characteristics of a new-type silicon magnetic sensitivity transistor[J]. Chinese Physics Letters, 2013, 30(8) : 088501(1-4).

DOI: 10.1088/0256-307x/30/8/088501

[10] Wen Dianzhong. Study on laser etching emitter region-groove approach of magnetic-sensitive silicon transistor[J]. Chinese Journal of Lasers, 2003, 30(5): 454-456.
