Inverse Identification of Process Variations for Thin Steel Sheet Bending

Abstract:

The stability of a metal forming production process is influenced by several sources of scatter such as variation of material and lubrication properties. Identification of the sources of variation is needed to optimize the process settings or to design a control strategy for the process. Many engineers point out sources of variation by experience, but in complex cases a computational identification algorithm may be used to investigate the process. When using parameter estimation in a control system, process forces can be used for the estimation. However, many parameters may influence the process forces. Therefore extensive models are needed to be able to identify the process parameters, including parameters such as tooling misalignment. In the current work, a thin steel flap bending process is studied. Measurements from an industrial press are used to identify the process parameters. A metamodel based inverse analysis procedure is used. The procedure is extended with proper orthogonal decomposition (POD) of the force curves to increase its convergence rate.

You might also be interested in these eBooks

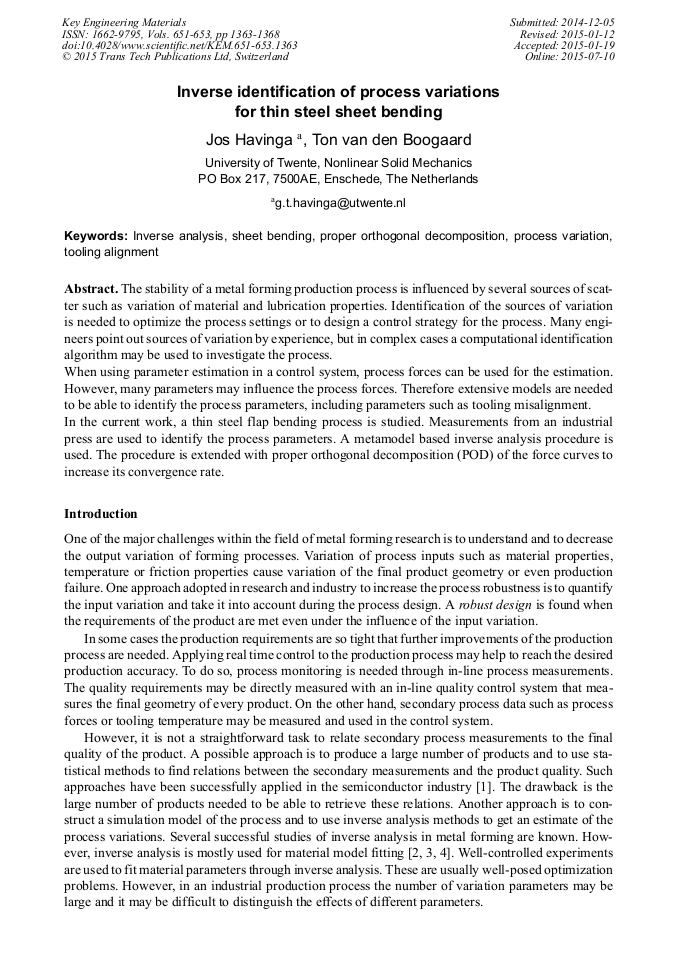

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 651-653)

Pages:

1363-1368

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.651-653.1363

Citation:

Cite this paper

Online since:

July 2015

Authors:

Jos Havinga*, Ton van den Boogaard

Keywords:

Inverse Analysis, Process Variation, Proper Orthogonal Decomposition, Sheet Bending, Tooling Alignment

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] A.A. Khan, J.R. Moyne and D.M. Tilbury: IEEE Transactions on semiconductor Manufacturing Vol. 20 No. (2007), pp.364-375.

Google Scholar

[2] P. -A. Eggertsen and K. Mattiasson: Eng. Comput. Vol. 26 No. 2 (2010), pp.159-170.

Google Scholar

[3] B.E. Kristensen and K.B. Nielsen: Proceedings of the 5th International Conference and Workshop on Numerical Simulation of 3D Sheet Forming Processes (2002), pp.43-48.

Google Scholar

[4] K.M. Zhao and J.K. Lee: Commun. Numer. Meth. En. Vol. 20 No. 2 (2004), pp.105-118.

Google Scholar

[5] D. Jones, M. Schonlau and W. Welch: J. Global Optim. Vol. 13 No. 4 (1998), pp.455-492.

Google Scholar

[6] V. Buljak: FME Transactions Vol. 38 No. 3 (2010), pp.129-136.

Google Scholar
