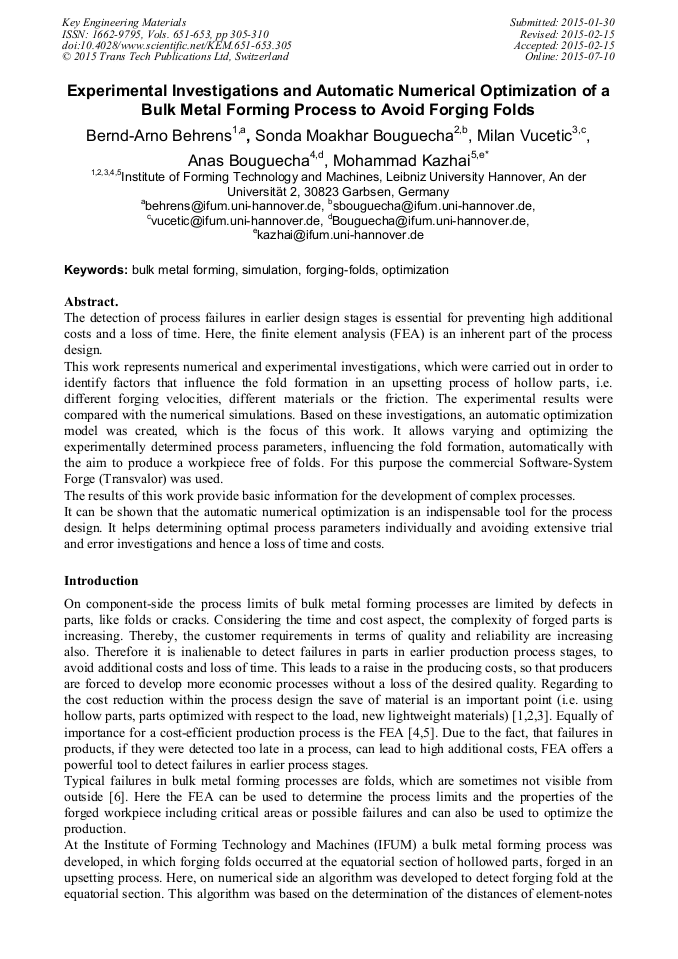

Experimental Investigations and Automatic Numerical Optimization of a Bulk Metal Forming Process to Avoid Forging Folds

Abstract:

The detection of process failures in earlier design stages is essential for preventing high additional costs and a loss of time. Here, the finite element analysis (FEA) is an inherent part of the process design. This work represents numerical and experimental investigations, which were carried out in order to identify factors that influence the fold formation in an upsetting process of hollow parts, i.e. different forging velocities, different materials or the friction. The experimental results were compared with the numerical simulations. Based on these investigations, an automatic optimization model was created, which is the focus of this work. It allows varying and optimizing the experimentally determined process parameters, influencing the fold formation, automatically with the aim to produce a workpiece free of folds. For this purpose the commercial Software-System Forge (Transvalor) was used. The results of this work provide basic information for the development of complex processes. It can be shown that the automatic numerical optimization is an indispensable tool for the process design. It helps determining optimal process parameters individually and avoiding extensive trial and error investigations and hence a loss of time and costs.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 305-310
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.305
• Online since: July 2015
• Authors: Bernd-Arno Behrens, Sonda Moakhar Bouguecha, Milan Vucetic, Anas Bouguecha, Mohammad Kazhai*
• Keywords: Bulk Metal Forming, Forging-Folds, Optimization, Simulation

References

[1] Prof. Dr. -Ing. M. Liewald, Dipl. -Ing. T. Schiemann: Leichtbau durch Kaltmassivumformung - Erweiterung der Verfahrensgrenzen beim Bundstauchen von hohlen Fließpressteilen, Schmiedejournal, Ausgabe 03/2013, 58093 Hagen.

[2] M. Kleiner, M. Geiger, A. Klaus: Manufacturing of Lightweight Components by Metal Forming, CIRP Annals - Manufacturing Technology, Volume 52, Issue 2, 2003, Pages 521–542.

DOI: 10.1016/s0007-8506(07)60202-9

[3] F. Severin: Lightweight Forging- Potential of Forged Components, Forging Industry Information Service, Industrieverband Massivumformung e.V. ISBN: 987-3-928726-31-4, April 2014, Hagen, Germany.

[4] T. Altan, V. Vazquez: Numerical Process simulation for Tool and Process Design in Bulk Metal Forming, CIRP Annals. Manufacturing Technology, Elsevier Ltd., (1996).

DOI: 10.1016/s0007-8506(07)60514-9

[5] J. -h. Songa, Y. -T. Im: Process design for closed-die forging of bevel gear by finite element analysis, Journal of Materials Processing Technology, (2007).

DOI: 10.1016/j.jmatprotec.2007.04.081

[6] Dieterle. K.: Faltenbildung als Verfahrensgrenze beim Stauchen von Hohlkörpern, Dissertation, Universität Stuttgart, (1975).

[7] B.A. Behrens, S. Röhr, F. Schäfer, A. Hundertmark: Untersuchungen zur numerischen Ermittlung von Schmiedefalten, UTF-Science, 2/2007, Hannover.

[8] B.A. Behrens, M. Kazhai: Numerical and Experimental investigations on Fold-Formation in Forged Parts, Key Engineering Materials Vols. 611-612 (2014) pp.212-220; Trans Tech Publications, Switzerland.

DOI: 10.4028/www.scientific.net/kem.611-612.212
