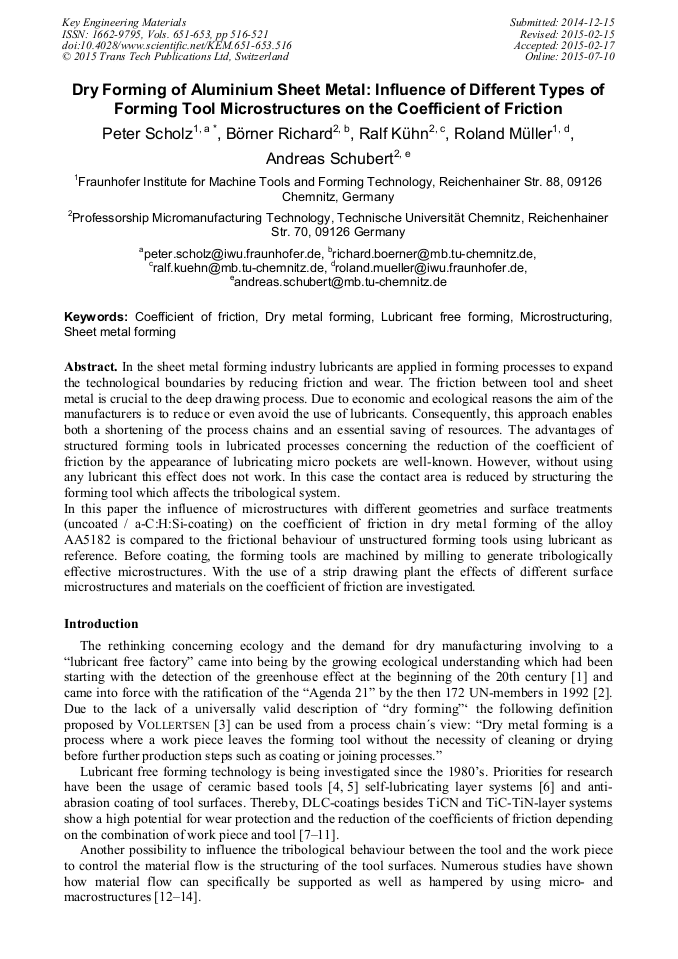

Dry Forming of Aluminium Sheet Metal: Influence of Different Types of Forming Tool Microstructures on the Coefficient of Friction

Abstract:

In the sheet metal forming industry lubricants are applied in forming processes to expand the technological boundaries by reducing friction and wear. The friction between tool and sheet metal is crucial to the deep drawing process. Due to economic and ecological reasons the aim of the manufacturers is to reduce or even avoid the use of lubricants. Consequently, this approach enables both a shortening of the process chains and an essential saving of resources. The advantages of structured forming tools in lubricated processes concerning the reduction of the coefficient of friction by the appearance of lubricating micro pockets are well-known. However, without using any lubricant this effect does not work. In this case the contact area is reduced by structuring the forming tool which affects the tribological system.In this paper the influence of microstructures with different geometries and surface treatments (uncoated / a-C:H:Si-coating) on the coefficient of friction in dry metal forming of the alloy AA5182 is compared to the frictional behaviour of unstructured forming tools using lubricant as reference. Before coating, the forming tools are machined by milling to generate tribologically effective microstructures. With the use of a strip drawing plant the effects of different surface microstructures and materials on the coefficient of friction are investigated.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 516-521
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.516
• Online since: July 2015
• Authors: Peter Scholz*, Richard Börner, Ralf Kühn, Roland Müller, Andreas Schubert
• Keywords: Coefficient of Friction, Dry Metal Forming, Lubricant Free Forming, Microstructuring, Sheet Metal Forming

References

[1] W. Moore, J. J. Willaman, Studies in greenhouse fumigation with hydrocyanic acid Physiological effects on the plant, J. Agric. Res. 11 (1917) 319–338.

[2] United Nations, Agenda 21, the Rio Declaration on Environment and Development, Rio de Janeiro, (1992).

[3] F. Vollertsen, F. Schmidt, Dry Metal Forming : Definition , Chances and Challenges, Int. J. Precis. Eng. Manuf. Technol. 1. 1 (2014) 1–4.

DOI: 10.1007/s40684-014-0009-0

[4] K. Tamaoki, K. -I. Manabe, S. Kataoka, T. Aizawa, Electroconductive ceramic tooling for dry deep drawing, J. Mater. Process. Technol. 210. 1 (2010) 48–53.

DOI: 10.1016/j.jmatprotec.2009.08.020

[5] S. Kataoka, M. Murakawa, T. Aizawa, H. Ike, Tribology of dry deep-drawing of various metal sheets with use of ceramics tools, Surf. Coatings Technol. 177–178 (2004) 582–590.

DOI: 10.1016/s0257-8972(03)00930-7

[6] A. Mitsuo, T. Akhadejdamrong, T. Aizawa, Self-Lubrication of Cl-Implanted Titanium Nitride Coating for Dry Metal Forming, Mater. Trans. 44. 7 (2003) 1295–1302.

DOI: 10.2320/matertrans.44.1295

[7] K. Osakada, R. Matsumoto, Fundamental Study of Dry Metal Forming with Coated Tools, CIRP Ann. Manuf. Technol. 49 (2000) 161–164.

DOI: 10.1016/s0007-8506(07)62919-9

[8] K. Taube, Carbon-based coatings for dry sheet-metal working, Surf. Coatings Technol. 98. 1-3 (1998) 976–984.

DOI: 10.1016/s0257-8972(97)00178-3

[9] M. Murakawa, N. Koga, T. Kumagai, Deep-drawing of aluminum sheets without lubricant by use of diamond-like carbon coated dies, Surf. Coatings Technol. 76–77. 2 (1995) 553–558.

DOI: 10.1016/0257-8972(95)02523-5

[10] B. Wielage, A. Wank, C. Rupprecht, G. Schmidt, and S. Stark, Schichtentwicklung für die schmiermittelfreie Umformung von hochfesten Aluminiumwerkstoffen, Materwiss. Werksttech. 39. 12 (2008) 871–875.

DOI: 10.1002/mawe.200800398

[11] V. Weihnacht, A. Brückner, S. Bräunling, ta-C beschichtete Werkzeuge für die Trockenumformung von Aluminiumblechen, Vak. Forsch. und Prax. 20. 3 (2008) 6–10.

DOI: 10.1002/vipr.200800356

[12] M. Kleiner, K. Weinert, R. Krux, M. Kalveram, Oberflächenstrukturen für Blechumformwerkzeuge - Einfluss spanend hergestellter Werkzeug-Oberflächenstrukturen auf die tribologischen Verhältnisse, Werkstattstechnik online 93 (2003) 665–670.

DOI: 10.37544/1436-4980-2003-10-665

[13] A. Mousavi, M. Schomäcker, A. Brosius, Macro and Micro Structuring of Deep Drawing Tools for Lubricant Free Forming, Procedia Eng. 81 (2014) 1890–1895.

DOI: 10.1016/j.proeng.2014.10.252

[14] V. Franzen, J. Witulski, a. Brosius, M. Trompeter, A. E. Tekkaya, Textured surfaces for deep drawing tools by rolling, Int. J. Mach. Tools Manuf. 50. 11 (2010) 969–976.

DOI: 10.1016/j.ijmachtools.2010.08.001

[15] M. Reihle, Verhalten des Gleitreibungskoeffizienten von Tiefziehblechen bei hohen Flächenpressungen, Dissertation, Technische Hochschule Stuttgart, Max-Planck-Institut für Metallforschung, (1959).
