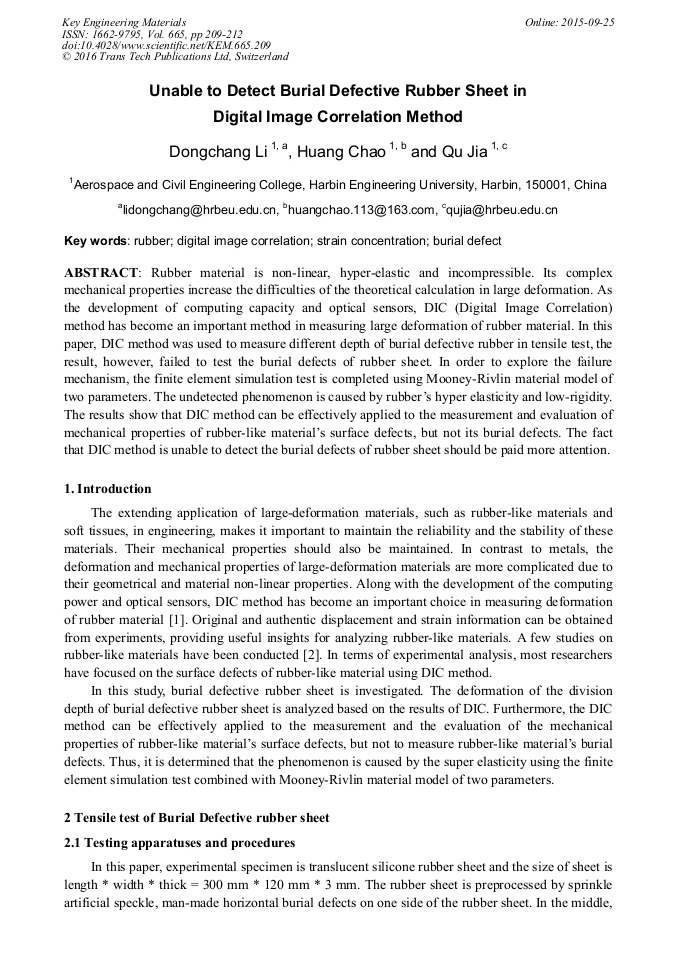

Unable to Detect Burial Defective Rubber Sheet in Digital Image Correlation Method

Abstract:

Rubber material is non-linear, hyper-elastic and incompressible. Its complex mechanical properties increase the difficulties of the theoretical calculation in large deformation. As the development of computing capacity and optical sensors, DIC (Digital Image Correlation) method has become an important method in measuring large deformation of rubber material. In this paper, DIC method was used to measure different depth of burial defective rubber in tensile test, the result, however, failed to test the burial defects of rubber sheet. In order to explore the failure mechanism, the finite element simulation test is completed using Mooney-Rivlin material model of two parameters. The undetected phenomenon is caused by rubber’s hyper elasticity and low-rigidity. The results show that DIC method can be effectively applied to the measurement and evaluation of mechanical properties of rubber-like material’s surface defects, but not its burial defects. The fact that DIC method is unable to detect the burial defects of rubber sheet should be paid more attention.

• Periodical: Key Engineering Materials (Volume 665)
• Pages: 209-212
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.665.209
• Online since: September 2015
• Authors: Dong Chang Li, Huang Chao, Qu Jia
• Keywords: Burial Defect, Digital Image Correlation, Rubber, Strain Concentration

References

[1] Luc Chevalier, Sylvain Calloch, François Hild, Yann Marco: Digital image correlation used to analyze the multiacial behavior of rubber-like materials. Eur. J. Mech. A/Solids 20 (2001), p.169–187.

DOI: 10.1016/s0997-7538(00)01135-9

[2] Haipeng Song, Yilan Kang, Xia Xiao: Experimental analysis of crack tip fields in rubber materials by 3DDigital Image Method. Procedia Engineering 10 (2011), p.3369–3374.

DOI: 10.1016/j.proeng.2011.04.555

[3] E. M. C. Jones: Documentation for Matlab-based DIC code. Copyright (c) 2013, Elizabeth Jones.

[4] Liu meng, Qingchun Wang: Determination of material constant of rubber in the model of Mooney – Rivlin. China rubber industry 58(4) (2011), pp.241-245.
