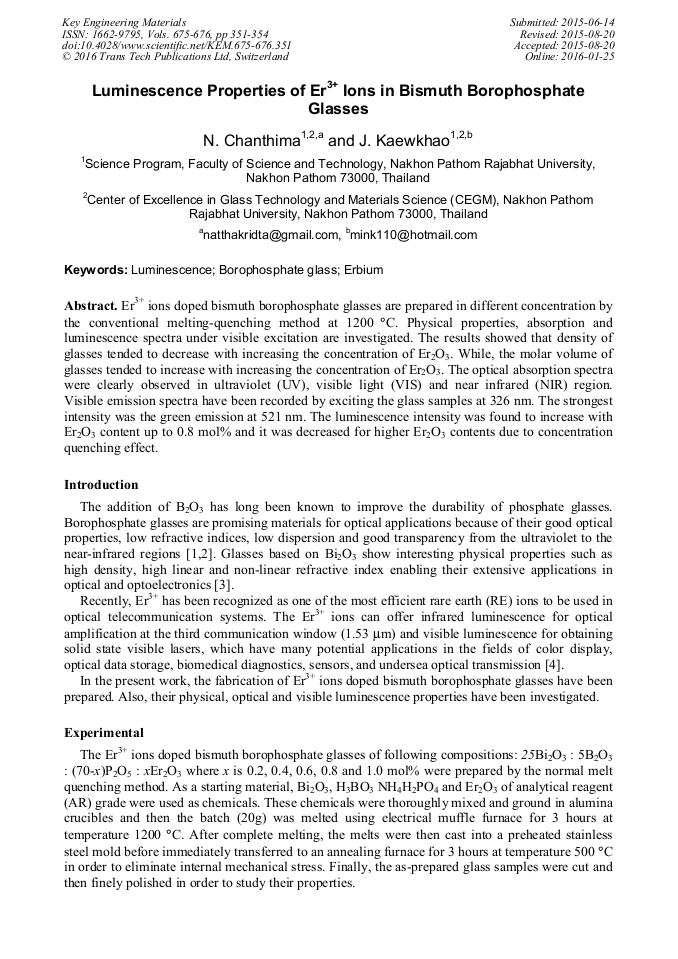

Luminescence Properties of Er³⁺ Ions in Bismuth Borophosphate Glasses

Abstract:

Er³⁺ ions doped bismuth borophosphate glasses are prepared in different concentration by the conventional melting-quenching method at 1200 °C. Physical properties, absorption and luminescence spectra under visible excitation are investigated. The results showed that density of glasses tended to decrease with increasing the concentration of Er₂O₃. While, the molar volume of glasses tended to increase with increasing the concentration of Er₂O₃. The optical absorption spectra were clearly observed in ultraviolet (UV), visible light (VIS) and near infrared (NIR) region. Visible emission spectra have been recorded by exciting the glass samples at 326 nm. The strongest intensity was the green emission at 521 nm. The luminescence intensity was found to increase with Er₂O₃ content up to 0.8 mol% and it was decreased for higher Er₂O₃ contents due to concentration quenching effect.

• Periodical: Key Engineering Materials (Volumes 675-676)
• Pages: 351-354
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.675-676.351
• Online since: January 2016
• Authors: Natthakridta Chanthima*, Jakrapong Kaewkhao
• Keywords: Borophosphate Glass, Erbium, Luminescence

References

[1] L. Koudelka, P. Mosner, Borophosphate glasses of the ZnO–B2O3–P2O5 system, Mater. Lett. 42 (2000) 194–199.

DOI: 10.1016/s0167-577x(99)00183-4

[2] N. Kiran, C.R. Kesavulu, A. SureshKumar, J.L. Rao, Spectral studies on Mn2+ ions doped in sodium-lead borophosphate glasses, Phys. B 406 (2011) 3816–3820.

DOI: 10.1016/j.physb.2011.06.078

[3] D. Saritha, M. Salagram, G. Bhikshamaiah, Physical and optical properties of Bi2O3-B2O3 glasses, IOP Conf. Series: Materials Science and Engineering 2 (2009) 012057.

DOI: 10.1088/1757-899x/2/1/012057

[4] P. Babu, H. J. Seo, K. H. Jang, R. Balakrishnaiah, C.K. Jayasankar, K.S. Lim, V. Lavín, Optical spectroscopy, 1. 5 mm emission, and upconversion properties of Er3+-doped metaphosphate laser glasses, J. Opt. Soc. Am. B 24 (2007) 2218–2228.

DOI: 10.1364/josab.24.002218

[5] E.E. Assem and I. Elmehasseb, Structure, magnetic, and electrical studies on vanadium phosphate glasses containing different oxides, J. Mater. Sci. 46 (2011) 2071–(2076).

DOI: 10.1007/s10853-010-5040-0

[6] B.C. Jamalaiah, T. Suhasini, L.R. Moorthy, K.J. Reddy, I.G. Kim, D.S. Yoo, K. Jang, Visible and near infrared luminescence properties of Er3+-doped LBTAF glasses for optical amplifiers, Opt. Mat. 34 (2012) 861–867.

DOI: 10.1016/j.optmat.2011.11.023

[7] Y. Hai-Gui, D. Zhen-Wen, Z. Ning-Ning, UV and visible upconversion luminescence in Er3+: YAG under red laser excitation, Chin. Phys. Soc. 16 (2007) 1650–1654.

DOI: 10.1088/1009-1963/16/6/027
