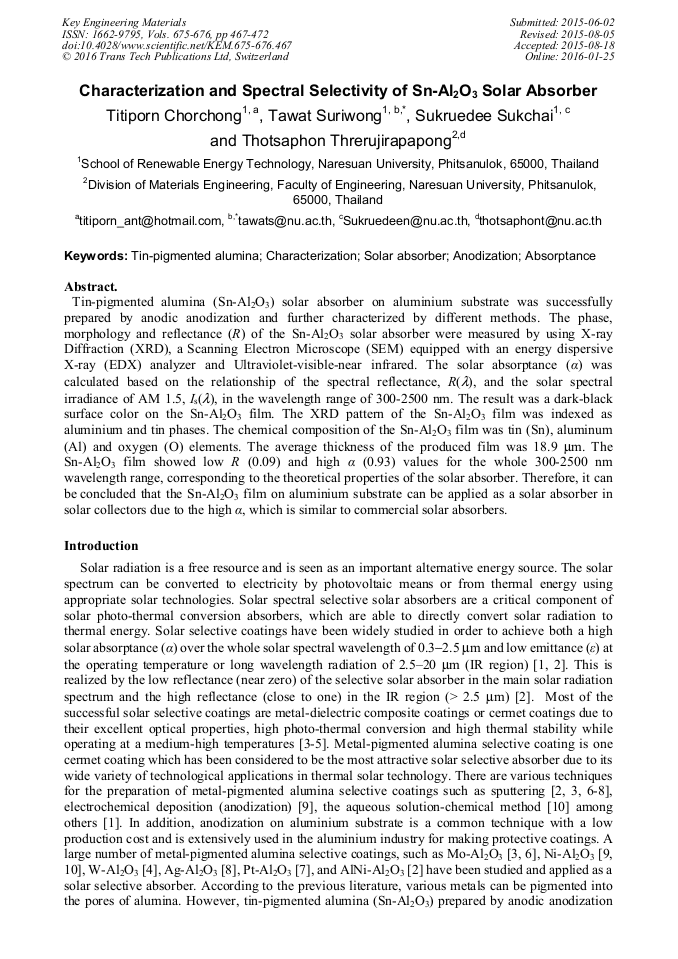

Characterization and Spectral Selectivity of Sn-Al₂O₃ Solar Absorber

Abstract:

In present work, tin-pigmented alumina (Sn-Al₂O₃) solar absorber on the aluminium substrate was successfully prepared by anodic anodization and further characterized by different methods. The phase, morphology, reflectance (R) and thermal conductivity of the Sn-Al₂O₃ solar absorber were measured by X-ray Diffraction (XRD), Scanning Electron Microscopy (SEM) equipped with energy dispersive X-ray (EDX) analyzer, and Ultraviolet-visible-near infrared spectrophotometer in the wavelength of 300-2500 nm. The solar absorptance (α) was calculated based on the relationship of the spectral reflectance, R(λ), and the solar spectral irradiance of AM 1.5, I_s(λ), in the wavelength interval of 300-2500 nm. As the results, the surface color of the Sn-Al₂O₃ film was dark-black color. The XRD pattern of Sn-Al₂O₃ films was indexed as aluminium and tin phases. The chemical composition of the Sn-Al₂O₃ films composed of tin (Sn), aluminum (Al) and oxygen (O) elements. The average thickness of the produced films was 18.9 μm. It was found that Sn-Al₂O₃ films showed the low R (0.09) and high α (0.93) values for the whole wavelength 300-2500 nm, corresponding to theoretical properties of the solar absorber. Therefore, it can be concluded that the Sn-Al₂O₃ film on aluminium substrate can be applied to be the solar absorber in solar collector due to high α, which is similar to the commercial solar absorbers.

• Periodical: Key Engineering Materials (Volumes 675-676)
• Pages: 467-472
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.675-676.467
• Online since: January 2016
• Authors: Titiporn Chorchong, Tawat Suriwong*, Sukruedee Sukchai, Thotsaphon Threrujirapapong
• Keywords: Absorptance, Anodization, Characterization, Solar Absorber, Tin-Pigmented Alumina

References

[1] C.E. Kennedy, Review of Mid- to High-Temperature Solar Selective Absorber Materials National Renewable Energy Laboratory (NREL), (2002) 1-52.

[2] Y. Xue, C. Wang, W. Wang, Y. Liu, Y. Wu, Y. Ning, Y. Sun, Spectral properties and thermal stability of solar selective absorbing AlNi–Al2O3 cermet coating, Sol. Energy, 96 (2013) 113-118.

DOI: 10.1016/j.solener.2013.07.012

[3] V. Teixeira, E. Sousa, M.F. Costa, C. Nunes, L. Rosa, M.J. Carvalho, M. Collares-Pereira, E. Roman, J. Gago, Spectrally selective composite coatings of Cr–Cr2O3 and Mo–Al2O3 for solar energy applications, Thin Solid Films, 392 (2001) 320-326.

DOI: 10.1016/s0040-6090(01)01051-3

[4] A. Antonaia, A. Castaldo, M.L. Addonizio, S. Esposito, Stability of W-Al2O3 cermet based solar coating for receiver tube operating at high temperature, Sol. Energy Mater. Sol. Cells, 94 (2010) 1604-1611.

DOI: 10.1016/j.solmat.2010.04.080

[5] D. Ding, W. Cai, M. Long, H. Wu, Y. Wu, Optical, structural and thermal characteristics of Cu–CuAl2O4 hybrids deposited in anodic aluminum oxide as selective solar absorber, Sol. Energy Mater. Sol. Cells, 94 (2010) 1578-1581.

DOI: 10.1016/j.solmat.2010.04.075

[6] D. Xinkang, W. Cong, W. Tianmin, Z. Long, C. Buliang, R. Ning, Microstructure and spectral selectivity of Mo–Al2O3 solar selective absorbing coatings after annealing, Thin Solid Films, 516 (2008) 3971-3977.

DOI: 10.1016/j.tsf.2007.07.193

[7] Z.Y. Nuru, C.J. Arendse, R. Nemutudi, O. Nemraoui, M. Maaza, Pt–Al2O3 nanocoatings for high temperature concentrated solar thermal power applications, Physica B: Condensed Matter, 407 (2012) 1634-1637.

DOI: 10.1016/j.physb.2011.09.104

[8] H.C. Barshilia, P. Kumar, K.S. Rajam, A. Biswas, Structure and optical properties of Ag–Al2O3 nanocermet solar selective coatings prepared using unbalanced magnetron sputtering, Sol. Energy Mater. Sol. Cells, 95 (2011) 1707-1715.

DOI: 10.1016/j.solmat.2011.01.034

[9] A. Wazwaz, J. Salmi, R. Bes, The effects of nickel-pigmented aluminium oxide selective coating over aluminium alloy on the optical properties and thermal efficiency of the selective absorber prepared by alternate and reverse periodic plating technique, Energy Convers. Manage., 51 (2010).

DOI: 10.1016/j.enconman.2009.11.047

[10] Z. Li, J. Zhao, L. Ren, Aqueous solution-chemical derived Ni–Al2O3 solar selective absorbing coatings, Sol. Energy Mater. Sol. Cells, 105 (2012) 90-95.

DOI: 10.1016/j.solmat.2012.05.030

[11] G. Katumba, L. Olumekor, A. Forbes, G. Makiwa, B. Mwakikunga, J. Lu, E. Wäckelgård, Optical, thermal and structural characteristics of carbon nanoparticles embedded in ZnO and NiO as selective solar absorbers, Sol. Energy Mater. Sol. Cells, 92 (2008).

DOI: 10.1016/j.solmat.2008.04.023

[12] C.A. Gueymard, The sun's total and spectral irradiance for solar energy applications and solar radiation models, Sol. Energy, 76 (2004) 423-453.

DOI: 10.1016/j.solener.2003.08.039

[13] T. Suriwong, S. Thongtem, T. Thongtem, Solid-state synthesis of cubic ZnTe nanocrystals using a microwave plasma, Mater. Lett., 63 (2009) 2103-2106.

DOI: 10.1016/j.matlet.2009.07.002

[14] Å. Andersson, O. Hunderi, C.G. Granqvist, Nickel pigmented anodic aluminum oxide for selective absorption of solar energy, J. Appl. Phys., 51 (1980) 754-764.

DOI: 10.1063/1.327337
