For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Preparation and Performance of Inorganic Thermal Insulation Glazed Hollow Bead Material
p.306
Research Progresses of Vacuum Glazing and BIPV
p.311
A Study of Environmental Impact Assessment on Intrinsic Energy and Full Life Cycle of Typical Energy-Saving Exterior Windows
p.315
Durability of Photovoltaic Laminated Glass Modules Affected by Temperature-Humidity Cycles
p.323
Preparation of Waterproof Silica Gel Coatings on Porous Silica Ceramic Substrates
p.327
Effect of ZrO2 Additive on the Properties of MgO-Cr2O3 Refractory Used for RH Degasser
p.331
A Facile and Reliable Preparing Route of Brown Fused Alumina from Aluminum Dross
p.335
Reaction Mechanism of Iron-Rich Magnesia-Corundum Composites at 1420°C
p.339
Research on High Temperature Creep Properties of Al2O3-SiO2 Ore (Al2O3 ~ 65)
p.343

Preparation of Waterproof Silica Gel Coatings on Porous Silica Ceramic Substrates

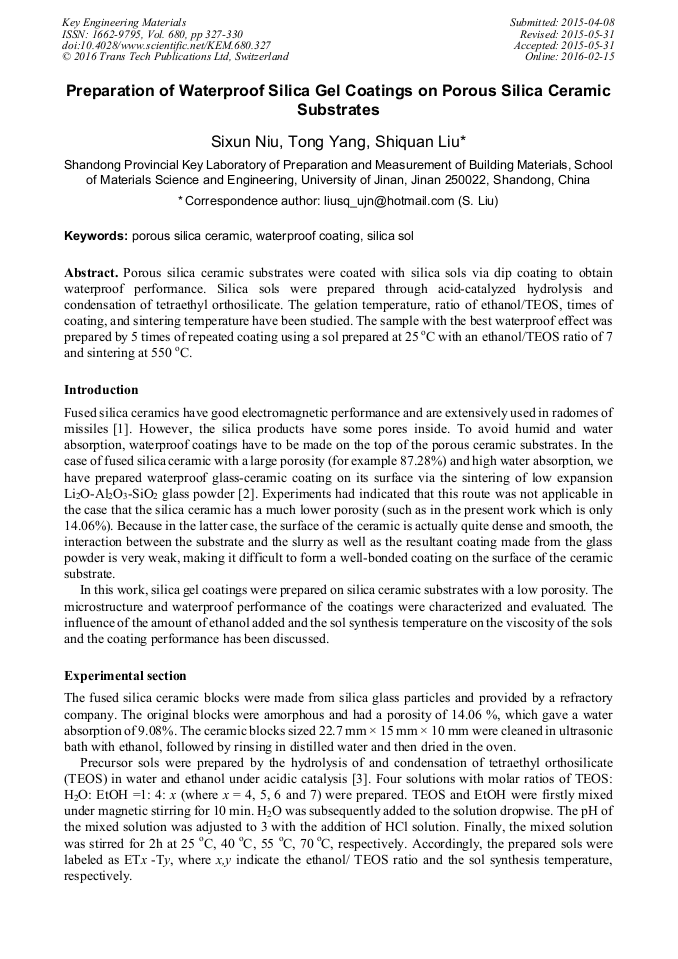

Article Preview

Abstract:

Porous silica ceramic substrates were coated with silica sols via dip coating to obtain waterproof performance. Silica sols were prepared through acid-catalyzed hydrolysis and condensation of tetraethyl orthosilicate. The gelation temperature, ratio of ethanol/TEOS, times of coating, and sintering temperature have been studied. The sample with the best waterproof effect was prepared by 5 times of repeated coating using a sol prepared at 25 oC with an ethanol/TEOS ratio of 7 and sintering at 550 °C.

You might also be interested in these eBooks
Properties and Testing Techniques of Inorganic Materials View Preview

Info:

Periodical:

Key Engineering Materials (Volume 680)

Pages:

327-330

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.680.327

Citation:

Cite this paper

Online since:

February 2016

Authors:

Si Xun Niu, Tong Yang, Shi Quan Liu*

Keywords:

Porous Silica Ceramic, Silica Sol, Waterproof Coating

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Y.L. Lei, Q.R. Wang, J.R. Huo, et al: Ceram. Int. Vol. 40 (2014), p.10907.

Google Scholar

[2] T. Yang, S.Q. Liu: J. Alloys Compd. Vol. 60 (2014), p.51.

Google Scholar

[3] D.A. Donatti, A.I. Ruiz, D.R. Vollet: Ultrason. Sonochem. Vol. 9 (2002), p.133.

Google Scholar

[4] W. Stöber, A. Fink: J. Colloid Interface Sci. Vol. 26 (1968), p.62.

Google Scholar

[5] K. Kamiya, T. Yoko, H. Suzukl: J. Non-Cryst. Solids. Vol. 93 (1987), p.407.

Google Scholar

[6] J.K. Hong, H.R. Kim, H.H. Park: Thin Solid Films. Vol. 332 (1998), p.449.

Google Scholar

[7] E. Enrıίquez, J.F. Fernańdez, M.A. Rubia: Carbon. Vol. 50 (2012), p.4409.

Google Scholar

[8] Q. Wu, P. Cheng, M. Lv, et al: Ceram. Int. Vol. 40 (2014), p.13741.

Google Scholar

[9] T.Y. Li, Y.C. Chang, B.Z. Wan: Thin Solid Films. Vol. 562 (2014), p.513.

Google Scholar

[10] S.Q. Ding, Y.P. Zeng, D.L. Jing: Mater. Lett. Vol. 61 (2007), p.2277.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
