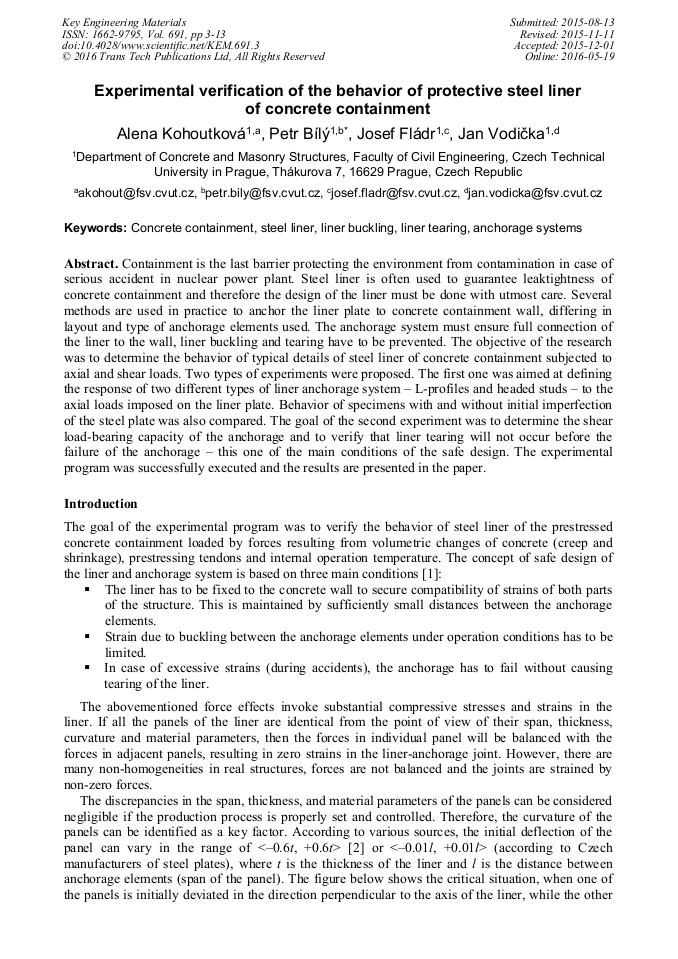

Experimental Verification of the Behavior of Protective Steel Liner of Concrete Containment

Abstract:

Containment is the last barrier protecting the environment from contamination in case of serious accident in nuclear power plant. Steel liner is often used to guarantee leaktightness of concrete containment and therefore the design of the liner must be done with utmost care. Several methods are used in practice to anchor the liner plate to concrete containment wall, differing in layout and type of anchorage elements used. The anchorage system must ensure full connection of the liner to the wall, liner buckling and tearing have to be prevented. The objective of the research was to determine the behavior of typical details of steel liner of concrete containment subjected to axial and shear loads. Two types of experiments were proposed. The first one was aimed at defining the response of two different types of liner anchorage system – L-profiles and headed studs – to the axial loads imposed on the liner plate. Behavior of specimens with and without initial imperfection of the steel plate was also compared. The goal of the second experiment was to determine the shear load-bearing capacity of the anchorage and to verify that liner tearing will not occur before the failure of the anchorage – this one of the main conditions of the safe design. The experimental program was successfully executed and the results are presented in the paper.

• Periodical: Key Engineering Materials (Volume 691)
• Pages: 3-13
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.691.3
• Online since: May 2016
• Authors: Alena Kohoutková, Petr Bily*, Josef Fladr, Jan Vodicka
• Keywords: Anchorage Systems, Concrete Containment, Liner Buckling, Liner Tearing, Steel Liner

References

[1] J. Picaut et al. Nuclear Containments. fib Bulletin no. 13. fib, Lausanne, Switzerland, (2001).

[2] J.M. Doyle, S.L. Chu. Some structural considerations in the design of nuclear containment liners. Nuclear Engineering and Design 16 (1971), p.294 – 300.

DOI: 10.1016/0029-5493(71)90018-5

[3] M.F. Hessheimer, R.A. Dameron. Containment Integrity Research at Sandia National Laboratories – An Overview. US Nuclear Regulatory Commission, Washington DC, USA, (2006).

[4] P. Řeřicha, Z. Bittnar. Buckling of the JETE containment liner. Report for Ministry of Industry and Trade of the Czech Republic. Prague, (1994).

[5] F. Vodák. Trvanlivost a stárnutí betonových konstrukcí jaderných elektráren. Report for Ministry of Industry and Trade of the Czech Republic. Praha, (1999).

[6] P. Bílý, A. Kohoutková. Sensitivity Analysis of Numerical Model of Prestressed Concrete Containment. Research report. Prague, 2014. Submitted for publishing in Nuclear Engineering and Design, publication expected by the end of (2015).

DOI: 10.1016/j.nucengdes.2015.09.027

[7] P. Bílý, A. Kohoutková. Experimentální ověření chování vystýlky předpjatého betonového kontejnmentu. Research Report. Prague, (2014).

[8] T.L. Winstead, E.G. Burdette, D.R. Armentrout. Linear Anchorage Analysis for Nuclear Containments. Journal of the Structural Division. October 1975, pp.2103-2116.

DOI: 10.1061/jsdeag.0004188

[9] D.R. Armentrout. An Analysis of the Behavior of Steel Liner Anchorages. Ph.D. dissertation. University of Tennessee, (1981).

[10] O. Gürbüz. Behavior and Analysis of Steel Liners for Prestressed Concrete Reactor Vessels. Dissertation Thesis. Iowa State University, (1974).

DOI: 10.31274/rtd-180814-2937

[11] A. Ostapenko, U. Ulkumen. Post-Buckling Deflection Modes of Lining in Containment Vessels. Report for Lehigh University, (1969).
